Why Does a Battery Module Need an Insulation Test?

Battery modules are integral components of modern electric vehicles (EVs), renewable energy storage systems, and various portable electronics. These modules consist of several interconnected battery cells designed to store and deliver energy efficiently. However, due to the high voltage and complex structure of these battery systems, it’s crucial to ensure their safety and functionality through rigorous testing processes, one of the most important being insulation testing.

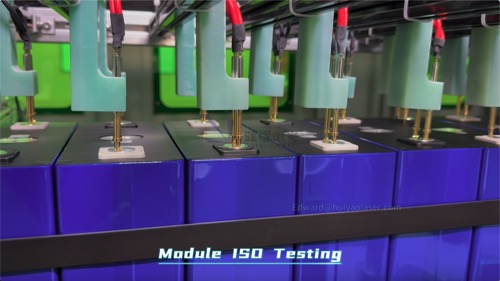

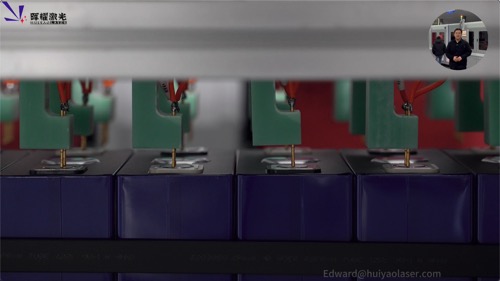

Insulation testing involves checking whether the battery’s electrical components are properly insulated, ensuring that no unintended electrical paths can cause faults or safety hazards. Without proper insulation, battery modules can experience severe issues such as electrical shorts, reduced performance, and potential hazards like fires or explosions. Below are the main reasons why insulation testing is essential for battery modules.

1. Safety of the End-User and Operators

The foremost concern when designing and manufacturing battery modules is safety. Batteries, especially those used in electric vehicles or large-scale energy storage, involve high voltage systems that can cause severe damage if they fail. Proper insulation in these systems is critical to ensuring the safety of both the end-user and the technicians who maintain these systems.

Preventing Electric Shocks:

One of the most dangerous risks of inadequate insulation in a battery module is the potential for electric shock. Insulation testing helps confirm that electrical components within the battery module are safely isolated, reducing the risk of electric shock to anyone handling or operating the battery system. Without proper insulation, live parts might become exposed, especially if there’s physical damage to the module or its casing.

Preventing Thermal Runaway and Fires:

Battery modules are also prone to thermal runaway, a condition where a battery’s temperature rises uncontrollably, often resulting in a fire or explosion. Thermal runaway is often triggered by short circuits, which can occur if the insulation fails and internal components of the battery come into contact with each other. Regular insulation testing reduces this risk by confirming that the system is properly isolated, thereby preventing such catastrophic failures.

2. Compliance with Safety Standards and Regulations

Battery modules are subject to stringent safety regulations in many industries. Insulation testing helps manufacturers comply with these international safety standards and regulatory requirements, which are mandatory in sectors such as automotive, aerospace, and renewable energy.

Regulatory Requirements:

For instance, electric vehicle manufacturers must meet safety standards such as those set by the International Electrotechnical Commission (IEC), Underwriters Laboratories (UL), or ISO certifications. These certifications specify that insulation resistance tests must be performed to ensure the safety of high-voltage battery systems. Insulation tests are often required during product certification and as part of the ongoing quality control checks to ensure that the battery continues to meet regulatory standards throughout its service life.

In addition, many countries have their own national safety standards that dictate the level of insulation required for specific applications. For example, the CE marking in Europe and the UL certification in the United States are common certifications that mandate insulation tests for battery modules.

3. Battery Performance and Longevity

Beyond safety, insulation testing is also critical for maintaining the performance and longevity of a battery module. High-quality insulation ensures that the battery functions at peak efficiency and has a longer operational lifespan.

Ensuring Long-Term Reliability:

When insulation is compromised, energy efficiency can drop as the system may experience voltage leaks or electrical faults. Over time, this can lead to the degradation of battery performance. Insulation testing ensures that there are no electrical leakages or failures in the insulation, meaning that the battery will perform efficiently throughout its lifespan.

Battery degradation due to improper insulation can be particularly problematic for electric vehicles or energy storage systems, where the performance and capacity of the battery directly impact the device’s overall performance. For instance, if a battery’s insulation fails, it could result in an imbalance between the cells or excessive heat generation, leading to capacity loss and reducing the vehicle’s driving range or the storage system’s power output.

Impact on Efficiency:

A properly insulated battery module allows energy to be stored and delivered without loss, ensuring optimal power efficiency. Poor insulation may lead to a small but noticeable decrease in energy output over time, especially in large battery systems like those used in EVs. Insulation testing helps guarantee that energy efficiency is maintained.

4. Protection of Connected Electronic Systems

Battery modules are not standalone components; they are often integrated into larger systems that include various electronics, such as battery management systems (BMS), inverters, and controllers. Insulation failures in a battery module can easily damage these delicate electronics, leading to costly repairs or failures.

Safeguarding the Battery Management System (BMS):

The BMS is crucial for monitoring the performance of individual battery cells, regulating charging and discharging cycles, and ensuring the overall safety of the battery pack. If the insulation fails, voltage imbalances may cause the BMS to malfunction or even short-circuit, leading to inaccurate readings or even total system failure. By ensuring the insulation is intact, these connected systems are protected from damage.

Protecting Other Vehicle Systems:

In electric vehicles, battery modules are directly linked to the motor controller and the electric drivetrain. If the insulation in the battery module fails and creates an electrical fault, it can damage these critical components, leading to system-wide failures. Insulation testing ensures that the battery will not inadvertently affect the functioning of the entire vehicle or storage system.

5. Prevention of Internal Short Circuits

Internal short circuits are one of the leading causes of battery fires and thermal runaway. If the insulation between internal components—such as battery cells, busbars, or connectors—fails, it could lead to electrical shorts. These shorts may cause localized heating or overheating, which can escalate into thermal runaway or even fires.

Ensuring Safe Operation of Cells:

Battery cells are tightly packed within a module, and any failure in insulation between the cells can create an internal short circuit. This can result in catastrophic failures that damage the entire module or, in the worst-case scenario, cause a fire or explosion. Insulation testing ensures that the battery system is robust and resistant to such failures, even under stressful conditions like high temperatures, vibrations, or mechanical shocks.

6. Thermal Management and Protection

Battery modules generate heat during their operation, especially when high currents are drawn. Proper thermal management is essential for ensuring the module’s safety and longevity. Insulation testing plays a key role in heat dissipation within the battery system.

Preventing Thermal Short Circuits:

Without effective insulation, heat could escape from its intended path and concentrate on sensitive areas, causing overheating and potential damage to battery cells or the surrounding electronics. This not only leads to a decrease in efficiency but can also trigger dangerous situations like thermal runaway. Insulation tests help ensure that heat is effectively managed, reducing the risks associated with excessive temperatures.

Conclusion

In conclusion, insulation testing is a crucial process for ensuring the safety, performance, longevity, and compliance of battery modules, particularly in high-risk applications like electric vehicles and large-scale energy storage systems. It helps prevent electric shocks, short circuits, fires, and system failures by ensuring that the electrical components of the battery module are properly insulated. By conducting thorough insulation tests, manufacturers can provide a product that is not only safe but also performs reliably and efficiently over its lifespan. As the demand for electric vehicles and renewable energy solutions continues to grow, insulation testing will remain a fundamental part of battery manufacturing, contributing to the overall success and safety of these advanced energy systems.

About Huiyao Laser Technology (Luoyang) Co., Ltd.

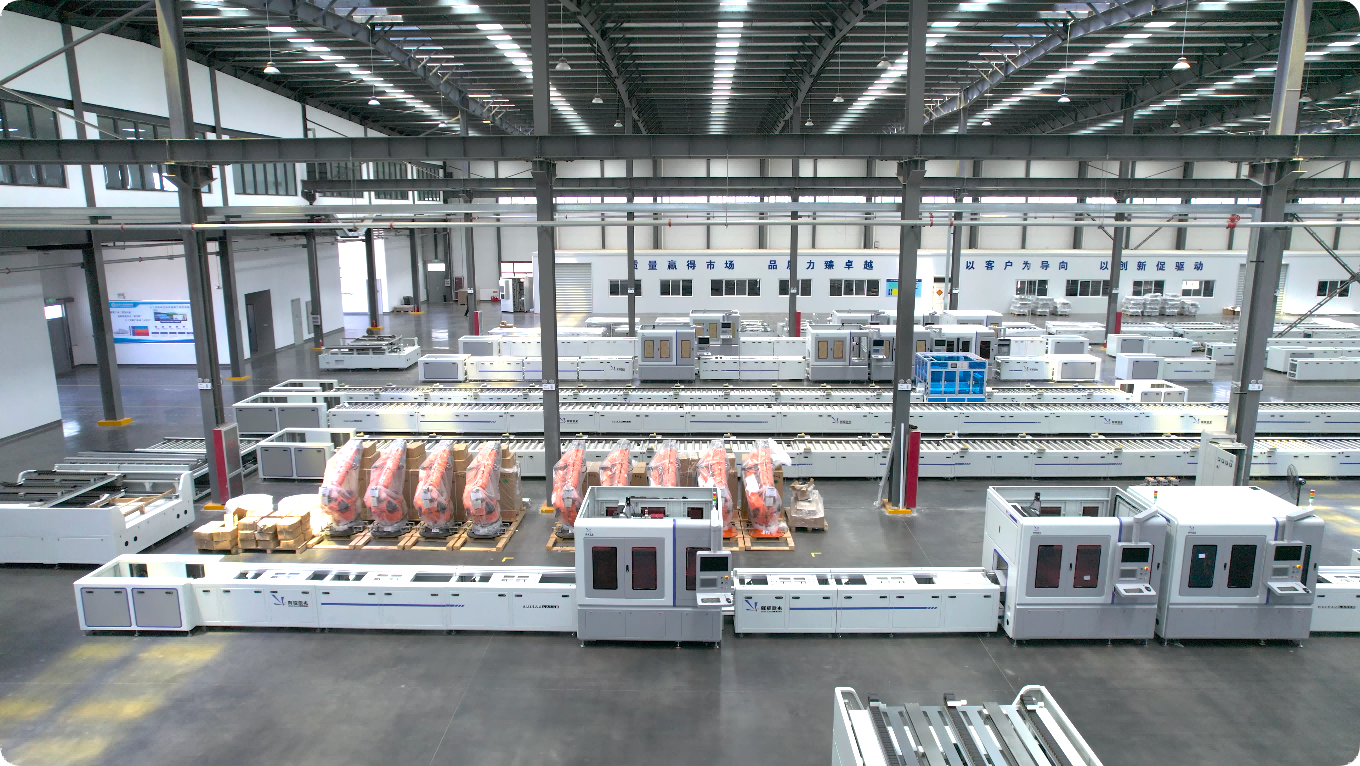

Huiyao Laser Technology (Luoyang) Co., Ltd. is a leading provider of advanced laser solutions, specializing in laser welding, cutting, and marking technologies for the energy storage, automotive, and industrial sectors. Founded in 2019, the company has quickly become a trusted partner in the development of high-performance laser equipment for battery module production, ensuring safety, precision, and efficiency. With a dedicated team of experts, Huiyao Laser is committed to helping clients achieve superior manufacturing standards while providing reliable solutions that meet international safety certifications like FDA and CE.
