What is Battery Cell Glue Applying?
Battery cell glue applying refers to the process of applying adhesive materials (glue) to the cells during the assembly of a prismatic battery module. This process is crucial for holding the battery cells together, ensuring structural integrity, and enhancing various operational properties of the battery module, such as thermal management, vibration dampening, and safety.
Functions of Battery Cell Glue Applying
Structural Bonding: Glue helps in bonding the battery cells to other components (e.g., thermal plates, structural supports), ensuring that the cells remain in their designated positions and the module stays structurally stable.
Vibration Dampening: Glue absorbs vibrations and reduces mechanical stress during transportation or operation, helping to protect the battery cells from potential damage caused by excessive movement or impact.
Thermal Management: Some adhesives are designed to conduct heat away from the cells, improving the efficiency of thermal management systems in the battery module, thus preventing overheating or thermal runaway.
Sealing and Insulation: Glue can also act as a sealant, protecting the cells from moisture and dust that could damage the battery over time. It also provides electrical insulation to prevent short circuits.
Safety: The glue ensures that the cells stay in place under mechanical stress, such as during crashes or in high-vibration environments, reducing the risk of puncturing or internal short-circuits.
Features of Battery Cell Glue Applying
Precision: The application of glue needs to be accurate to ensure the correct amount is applied to the necessary locations without excess or shortage. Over-applying glue can add unnecessary weight, while under-applying it can result in weak bonding.
Viscosity: The viscosity of the glue must be suitable for the application method. It should be thick enough to stay in place but fluid enough to spread evenly when applied.
Curing: The adhesive must cure effectively, either under heat, UV light, or pressure, depending on the glue type. The curing time should align with the production line's speed to ensure optimal adhesion.
Environmental Resistance: The glue used must be able to withstand extreme environmental conditions such as high temperatures, moisture, and exposure to chemicals without breaking down or losing adhesion.
Durability: The adhesive needs to retain its properties over time, maintaining its bond strength, flexibility, and resistance to environmental factors throughout the lifespan of the battery module.
Types of Glue

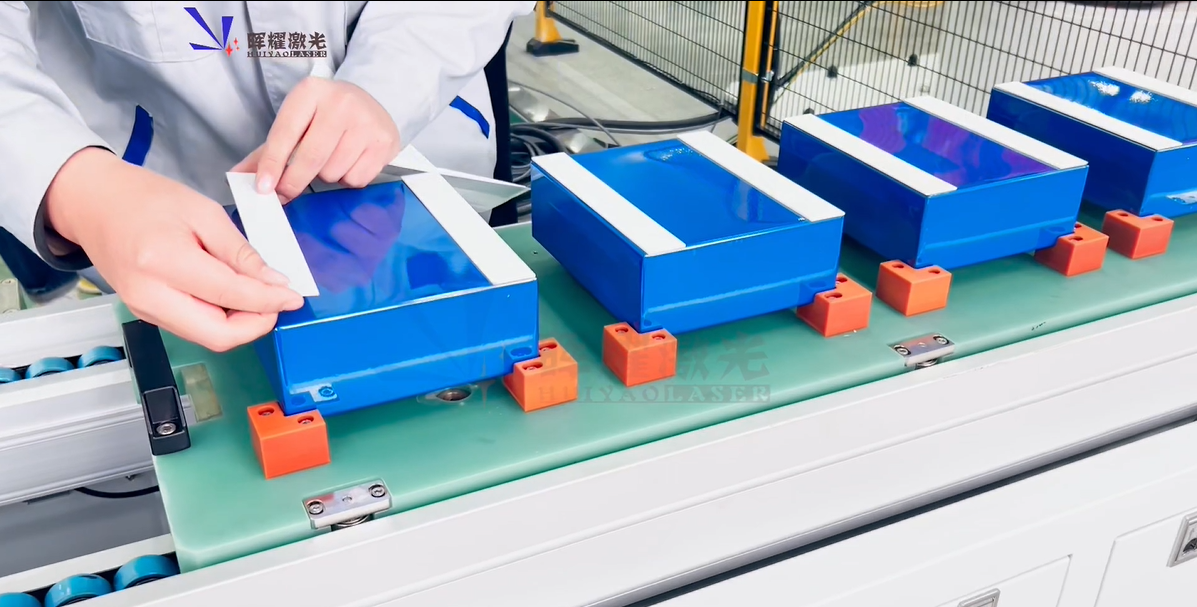

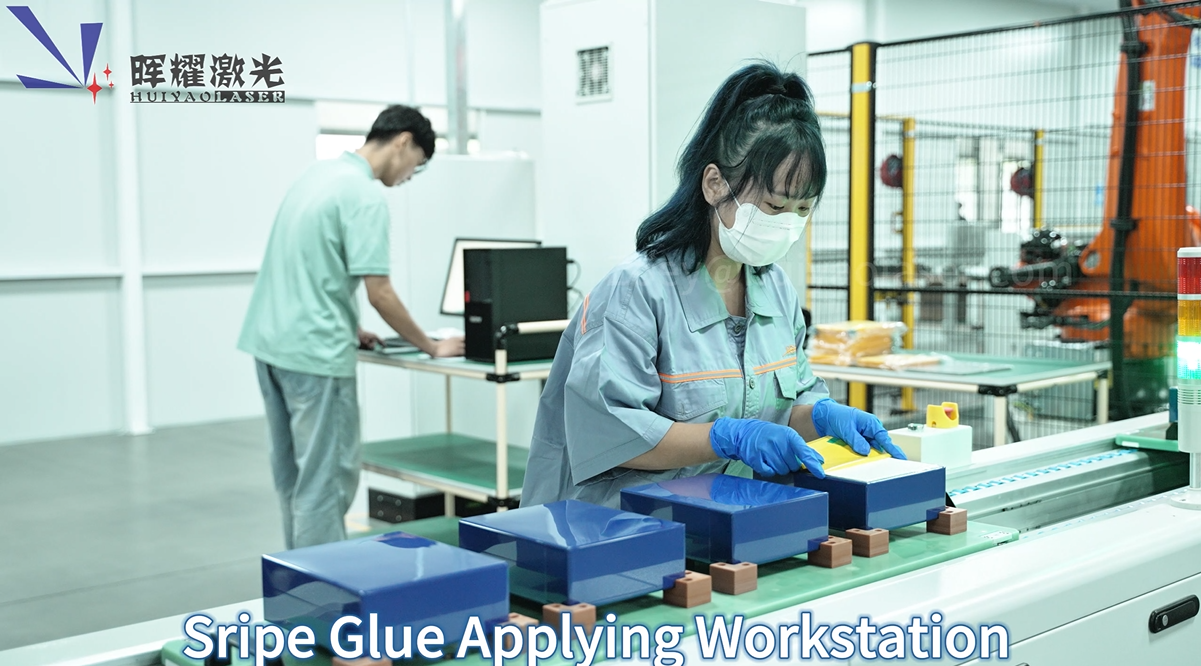

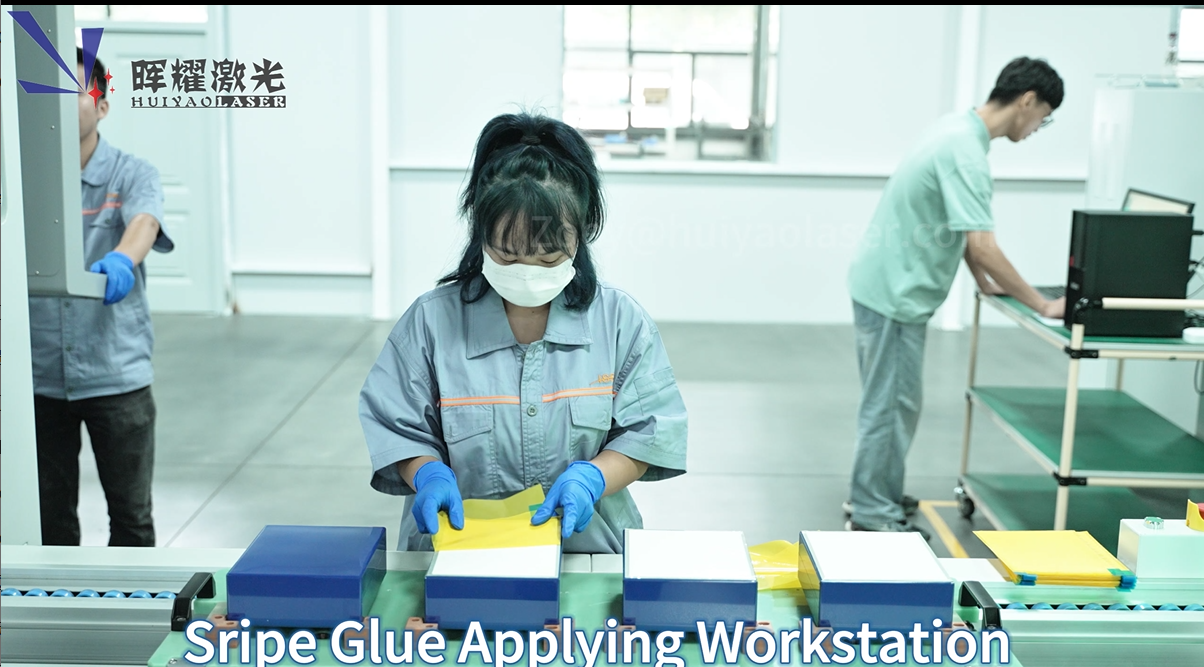

Description: Stripe glue refers to an adhesive that is applied in continuous stripes or lines, rather than a uniform coating. This method can be useful when specific bonding areas need to be targeted, such as along the edges or corners of the cells
Use Case: Often used when precise, localized bonding is required and when the application needs to be fast.
Description: Liquid glue is applied as a more uniform layer or coating. It is commonly used when the adhesive needs to cover a broader surface area and provide a consistent bond.
Use Case: Ideal for applications requiring thorough coverage of the entire surface area of the battery cells or components.
Different Ways of Battery Cell Glue Applying
Robotic Arms: Robots can precisely apply glue to specific areas, ensuring uniformity and accuracy.
Speed: High-speed application, suitable for mass production.
Precision: Accurate and consistent application of glue, reducing waste and improving product quality.
Efficiency: Minimal human intervention, which improves consistency and reduces the likelihood of errors.
Description: This involves the use of automated machines or robotic systems that apply the glue in a precise and consistent manner. Automatic glue applying can be integrated into high-speed production lines, offering significant benefits in terms of precision, speed, and reduced labor costs.
Inconsistency: Manual application may lead to variations in glue volume and coverage, which can affect the final product’s quality.
Labor-Intensive: It requires more workers, increasing labor costs and time.
Flexibility: Manual application is useful when dealing with prototypes or low-volume runs that require customization.
Cost: For smaller production volumes, manual application can be more cost-effective than automated systems.
Description: Manual glue application involves workers applying the glue by hand using tools like brushes, syringes, or applicator nozzles. This method is often used in smaller-scale or low-volume production.
Importance of Battery Cell Glue Applying
Safety: Proper glue application ensures the physical stability of the battery cells. It helps to avoid issues such as internal short circuits, punctures, or leaks by keeping the cells in place and preventing movement during use.
Performance: Glue plays an important role in the thermal management of battery modules. Adhesives that promote heat dissipation ensure that the battery maintains an optimal temperature, enhancing efficiency and lifespan.
Structural Integrity: The adhesive bonds the components of the battery module securely, contributing to the overall structural integrity. This is particularly important in ensuring that the battery can withstand stresses such as impacts or vibrations during operation.
Cost-Effectiveness: Proper glue application reduces material waste, improves production efficiency, and ensures higher yield rates. Automated systems, in particular, can significantly lower labor costs and reduce errors.
Durability and Longevity: The glue used must maintain its adhesive strength and other properties over the lifespan of the battery. High-quality glue ensures that the battery performs well over time without degradation of its bond.
Environmental Protection: Glue serves as a sealant, preventing moisture, dust, and contaminants from damaging the cells. It also helps to protect against environmental factors that could cause deterioration or malfunction of the battery.
In conclusion, battery cell glue applying in the prismatic battery module production line is crucial for ensuring safety, performance, and durability. The choice between stripe glue and liquid glue, as well as the method of application (automatic or manual), depends on the specific requirements of the production process, with automated systems offering significant advantages in terms of speed, precision, and efficiency. Proper glue application is essential for the overall success of battery module assembly and the long-term reliability of the final product.
