In the production of Prismatic Battery Module and PACK, understanding the key components—battery cells, modules, and packs—is essential for optimal design and application. Below, we delve into what each of these components is, their features, and their roles in energy storage systems, especially in electric vehicles (EVs).
What is a Prismatic Battery Cell?
A prismatic battery cell is a type of rechargeable battery with a rectangular shape, designed for higher energy density and efficient packing in battery systems. The prismatic cell uses a flat, rigid casing to house the electrochemical components, making it suitable for applications that require a compact and standardized form factor.

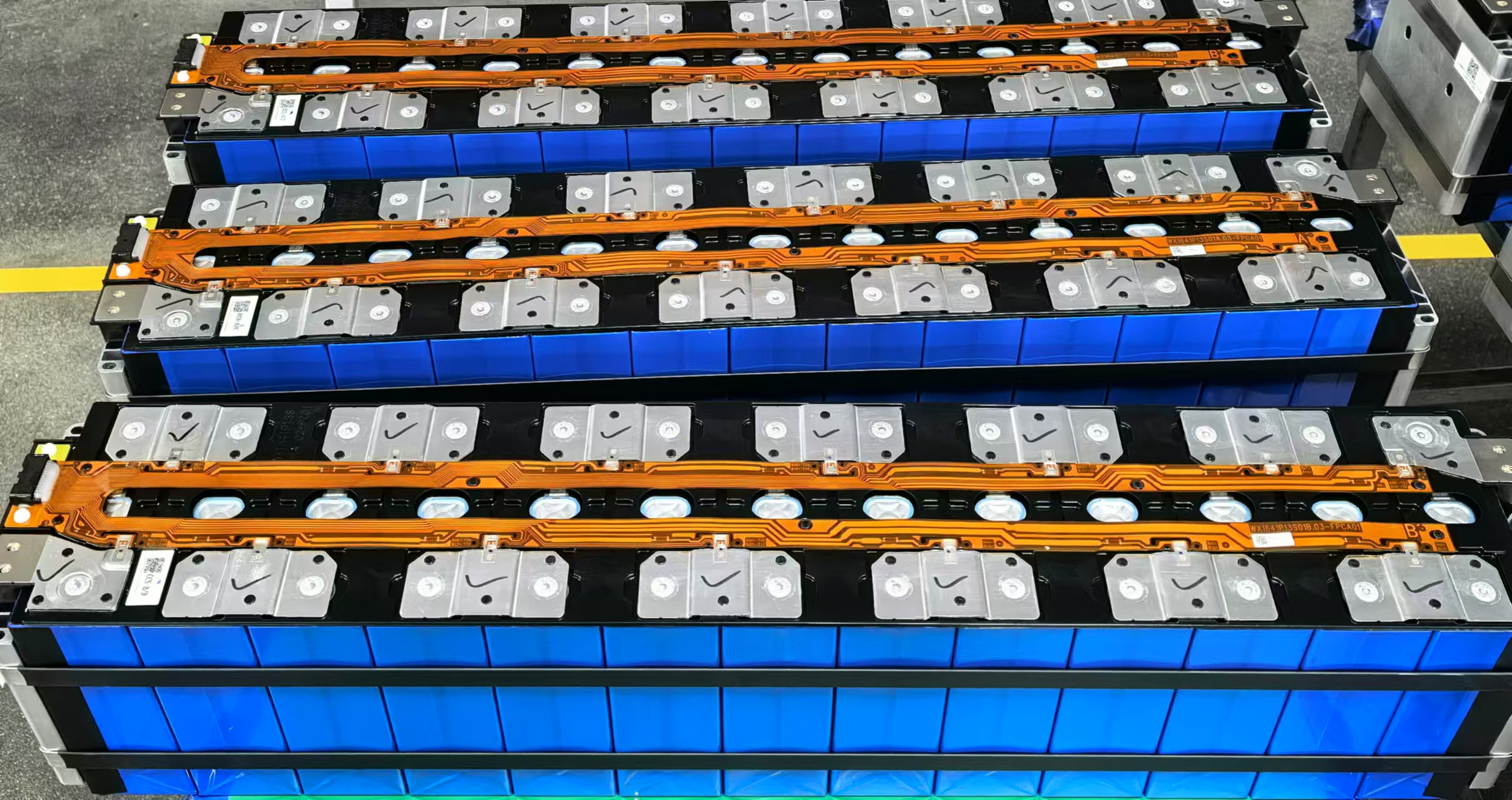

A prismatic battery module is a collection of prismatic battery cells connected in series or parallel to achieve the desired voltage and capacity. The module also includes a battery management system (BMS) for monitoring and managing the health and performance of individual cells. Modules are designed for integration into larger battery packs and are crucial for balancing and ensuring the safe operation of multiple cells.

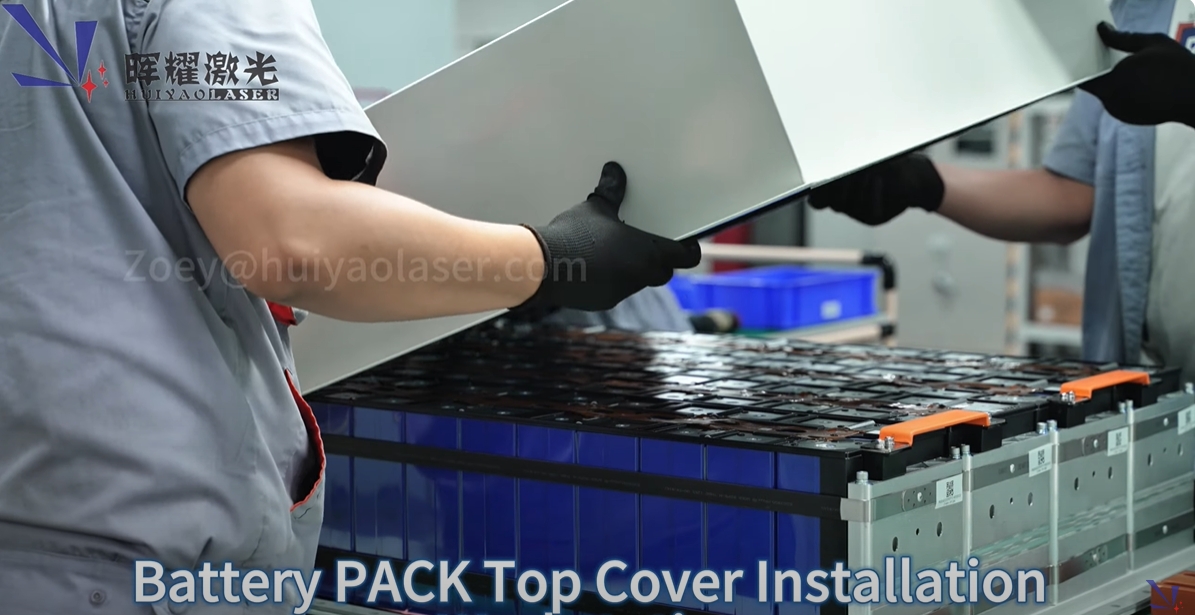

A prismatic battery pack is a fully assembled energy storage system made up of several prismatic battery modules. These packs provide the necessary voltage and capacity to power devices, vehicles, or storage systems. A battery pack often includes additional components such as thermal management systems, safety circuits, and a BMS for managing charging, discharging, and overall performance.
The Difference Between Battery Cell, Battery Module, and Battery PACK
The primary difference between a battery cell, module, and pack lies in their structure and function:
Battery Cell: The smallest unit, responsible for storing and releasing energy.
Battery Module: A collection of battery cells configured to provide a specific voltage and capacity. Modules also include a BMS for monitoring cell performance.
Battery Pack: The final assembly, consisting of several modules, designed to provide the required power for the application.
Features of Battery Cell, Battery Module, and Battery PACK
Battery Cell: Compact, efficient, and designed for high energy density. It has a single electrochemical unit for energy storage.
Battery Module: Organized configuration of cells with integrated BMS, balancing the voltage and current for reliable performance.
Battery Pack: Complete energy storage system that includes modules, thermal management, BMS, and safety components to deliver power for extended periods.
The Relationship Between Battery Cell, Battery Module, and Battery Pack
A battery pack is made up of multiple modules, and each module contains multiple prismatic battery cells. The cell is the fundamental unit, while the module aggregates cells to provide higher capacity and voltage. The pack aggregates modules to meet the required energy and power demands for specific applications.
Applications of Battery Cell, Battery Module, and Battery PACK
Battery Cells: Used in small-scale applications such as portable electronics, energy storage systems, and EVs.
Battery Modules: Typically used in larger systems like EV batteries, grid storage systems, and renewable energy storage solutions.
Battery Packs: Used in electric vehicles (EVs), large-scale energy storage projects, and other high-power applications.
Conclusion
The prismatic battery cell, module, and pack are integral to modern energy systems, especially in electric vehicles and renewable energy storage solutions. Understanding their roles and differences is critical to ensuring efficiency, safety, and performance in these systems.
