Cylindrical Battery Module PACK Automation Line

Cylindrical Battery Module PACK production line is an important production line in the new energy field.Cylindrical Battery Module PACK production line is an important production line in new energy field, which is specially used for cylindrical battery cells. The production process of Cylindrical Battery Module PACK Line includes cell sorting, cell sequencing, cell welding, cell testing, cell packaging, cell assembly, PACK assembly and PACK testing;

Inquire Now

Share:

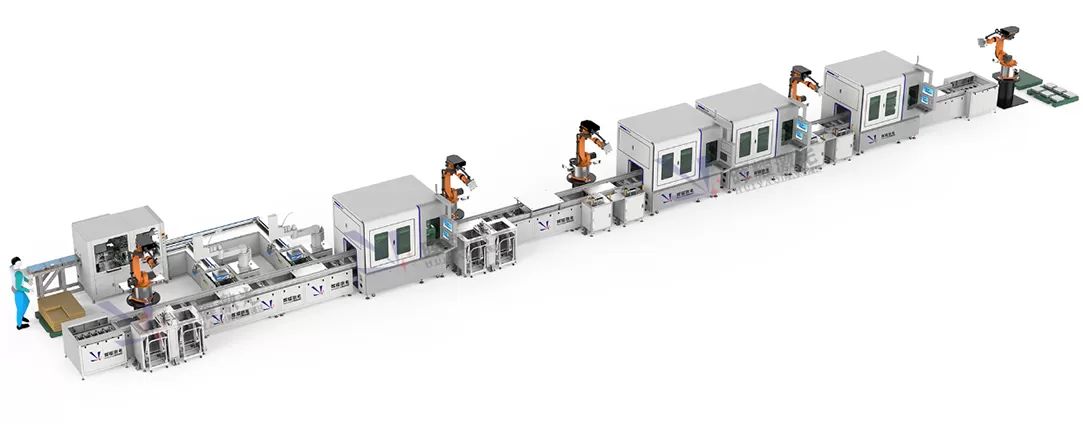

Cylindrical Battery Module PACK Automation Line

Production Line Features

Rapid off-standard customisation based on customer's process.

Automated processes, seamless workflow integration and real-time data management ensure excellent productivity.

Precise assembly, welding and quality control of battery PACK components using superior laser technology and advanced robotics.

Integration of machinery and automation systems creates a seamless and intelligent production line, minimising downtime and increasing resource utilisation

Process Flow

OCV Sorting→ Battery Cell into Lower Bracket→Polarity Detection→Installation ＆Front Cover Fasten→BUSBARr Installation→Module Laser Welding→Automated Flipping→BUSBARr Installation→Module Laser Welding→Module Off-Loading

Technical Parameters

ItemsParameter value
Whole Line Size35700mm*3000mm*3300mm
Applicable Cell Type18650，21700，26700 and 32700
Blueprint Cell26700 Cell
Line Efficiency≥33PPM
Final Merit Rate≥99.8%
Failure Rate≤2%
