What is Pouch Battery Terminal Tab cutting?
Terminal tab cutting refers to the process of cutting the metal conductive parts (i.e., electrode ears) extending from the positive and negative electrode sheets into specified shapes and sizes during the manufacturing process of the battery cell.
lRole of the Terminal Tab: As the conductive medium connecting the core with the external circuit, the lugs carry the input and output of the current.
lThe significance of cutting: the cutting process determines the shape, flatness and surface quality of the terminal tab, thus affecting the conductivity and welding effect of the cell.
Main application scenarios of Terminal Tab Cutting for Pouch Battery
lPouch Cell Manufacturing
Purpose: Terminal tab cutting is used to trim the metal tabs that connect the electrodes (positive and negative) of the pouch cell to the external terminals. These tabs are then welded to the battery's external terminals to enable electrical contact.
Scenario: During the assembly of pouch cells, the electrode tabs are formed and precisely cut to the required length and shape for effective integration with the rest of the cell components.
lBattery Pack Integration
Purpose: Once pouch cells are fabricated, they are often combined into battery packs. The terminal tabs are critical for making electrical connections between individual cells.
Scenario: Terminal tab cutting ensures that the tabs are cut to the proper size and shape for efficient connections, often involving multiple cells in series or parallel configurations to achieve the desired voltage and capacity.
lBattery Assembly for Consumer Electronics
Purpose: In consumer electronics such as smartphones, laptops, and tablets, pouch batteries are increasingly being used due to their lightweight, flexible, and high-energy density characteristics.
Scenario: Terminal tab cutting is used in the assembly of the battery pack for devices, ensuring that the connections between the battery's terminals and the device's circuitry are properly made.
lElectric Vehicle (EV) Battery Manufacturing
Purpose: Electric vehicles require high-capacity, high-performance batteries, and pouch cells are an attractive option due to their high energy density and compact form.
Scenario: In EV battery packs, terminal tab cutting is essential for making accurate electrical connections between the cells within the battery modules, which are then connected to the overall battery system.
lEnergy Storage Systems (ESS)
Purpose: Terminal tab cutting plays a role in the development of energy storage systems used for grid stabilization, renewable energy integration, and backup power solutions.
Scenario: Pouch cells are used in large-scale ESS applications, where terminal tab cutting ensures that the battery modules are correctly wired and configured to deliver the required power output.
lQuality Control and Precision Cutting
Purpose: Ensuring that the terminal tabs are cut with high precision is critical for the overall performance and safety of the pouch battery.
Scenario: Terminal tab cutting is part of the quality control process to ensure that the tabs are of uniform length, free of defects, and compatible with the welding or bonding processes used for creating strong, reliable electrical connections.
lPost-Manufacturing Rework or Customization
Purpose: Sometimes terminal tab cutting is required after the initial assembly, such as for repairs, modifications, or reconfiguration of the battery pack.
Scenario: In cases where a battery needs to be modified, resized, or adapted for a different use case, terminal tab cutting ensures that the new configuration can be achieved without compromising the integrity of the battery.
lHigh-Volume Production Lines
Purpose: In mass production of pouch cells, terminal tab cutting is often automated to meet the high throughput requirements.
Scenario: Automated terminal tab cutting machines ensure that the cutting process is precise, repeatable, and fast enough to meet the high demand in industries like automotive and consumer electronics.
Technologies Used in Terminal Tab Cutting:
lLaser Cutting: For precise, clean cuts on thin metal tabs.
lStamping: For high-volume, fast cutting of tabs.
lWater Jet Cutting: For more complex shapes or thicker materials.
Key Technical Requirements for Cutting Terminal Tab for Pouch Battery Cells
lHigh-precision cutting:
The dimensional error of terminal tab cutting should be controlled at the micron level to ensure the conductivity and consistency.
lNo burr, no flying edge:
The edges of the terminal tabs after cutting should be smooth and even to avoid short circuit or welding problems caused by burrs.
lEfficiency and Stability:
Large-scale production needs to ensure the cutting efficiency of thousands of cores per hour, while the stability of the equipment is crucial.
lMaterial compatibility:
Cutting equipment needs to adapt to the characteristics of different lug materials (e.g. aluminum foil, copper foil, nickel tape, etc.) to avoid material loss and stress concentration.
Commonly Used Techniques for Cutting Terminal Tab for FPCs
In the current industry, the following technologies are mainly used for terminal tab cutting:

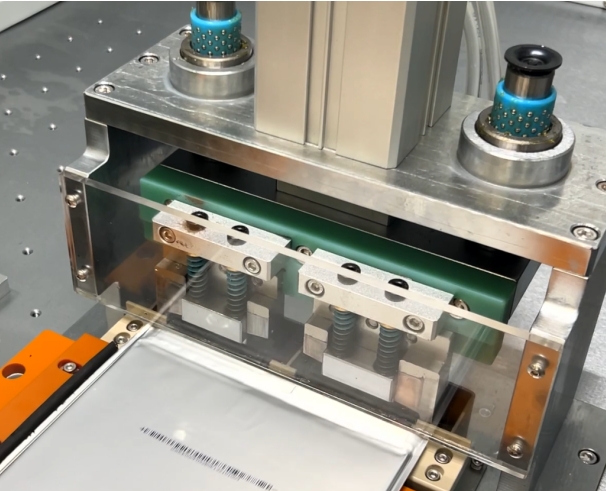

lMechanical punching and cutting:
Cutting using molds, suitable for mass production, but the molds wear out faster.
lLaser cutting:
Non-contact cutting by high energy laser beam, suitable for complex shape cutting, high precision but high cost.
lUltrasonic cutting:
Utilizing high-frequency vibration to reduce cutting force, reduce material deformation and thermal effect.
Suppliers of Flexible Pouch Battery Terminal Tab Cutting Equipment

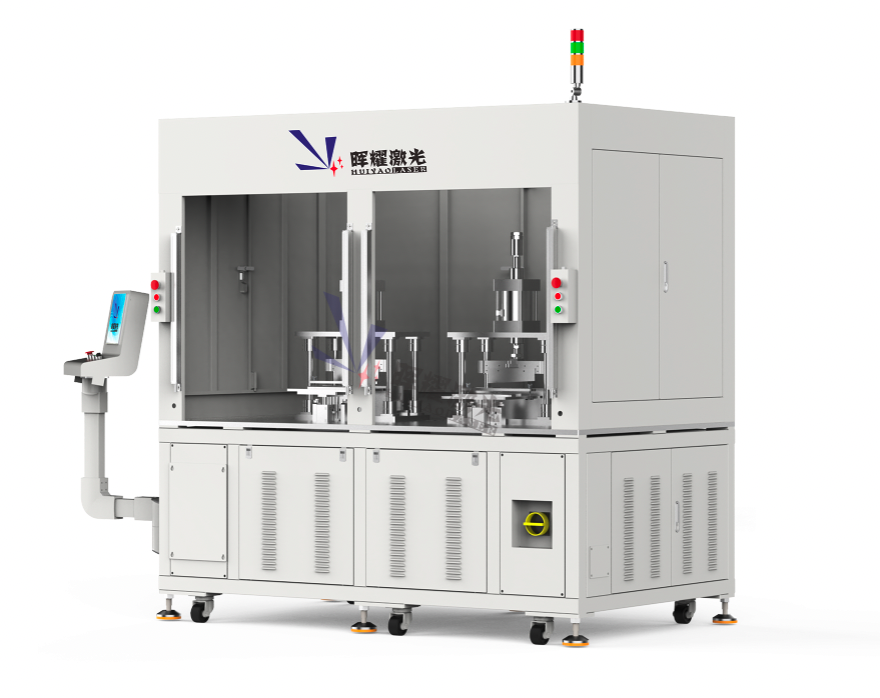

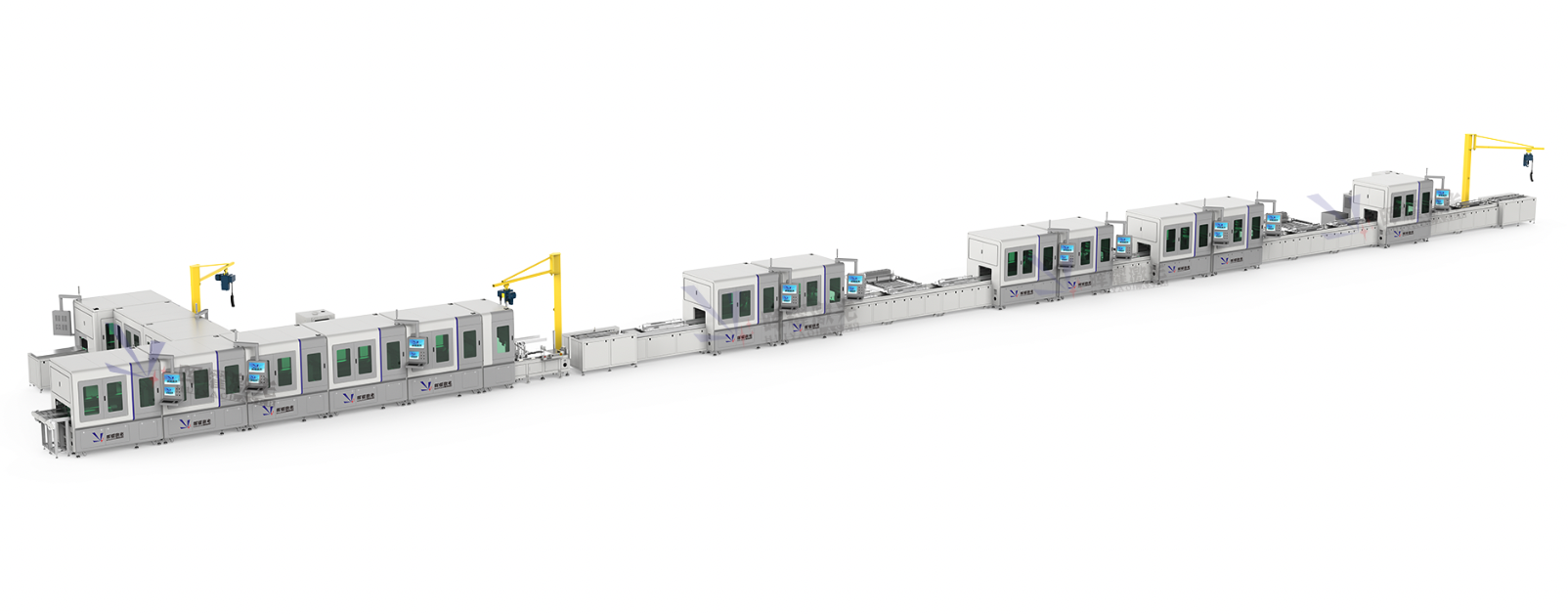

Huiyao Laser Technology (Luoyang) Co., Ltd. is a professional supplier of battery production equipment, dedicated to providing customers with high-precision battery testing equipment, high-efficiency automated production line equipment and related technical services. We not only provide customers with soft pack cell lug cutting equipment, but also cover battery module production line, PACK assembly line and other solutions to meet the diversified needs of the new energy field.
