The evolution of battery technology and the rapid growth of the renewable energy industry have placed a premium on improving the efficiency, safety, and quality of battery manufacturing processes. Battery modules, as crucial components of battery packs, undergo various complex processes during assembly, with insulation being one of the most critical steps. The Battery Module Insulation Workstation is a key component of the automatic production line, ensuring safety, electrical performance, and reliability of the finished product. This article provides an overview of the insulation workstation, focusing on its introduction, features, applications, and factors to consider when choosing such a workstation.

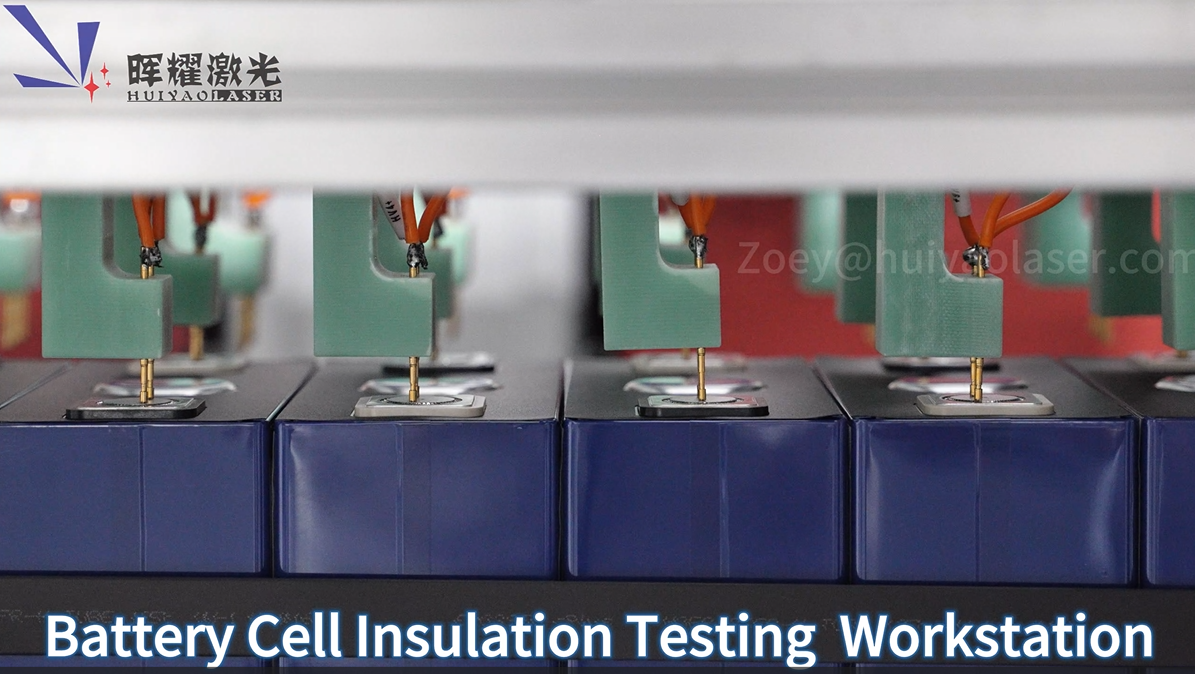

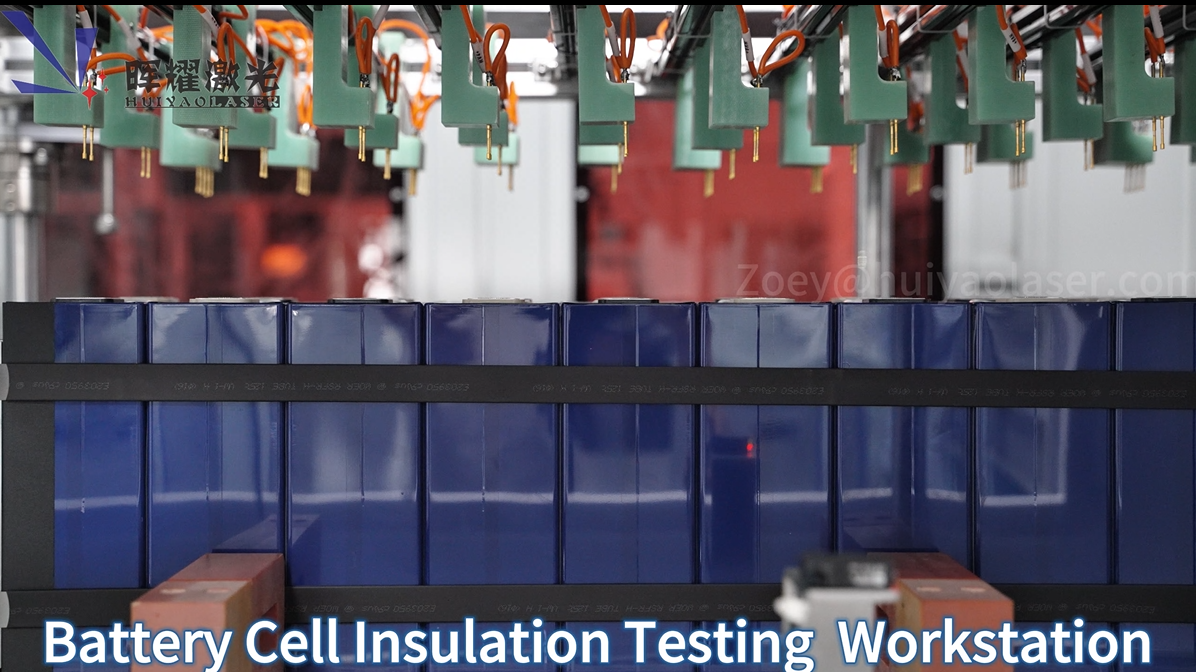

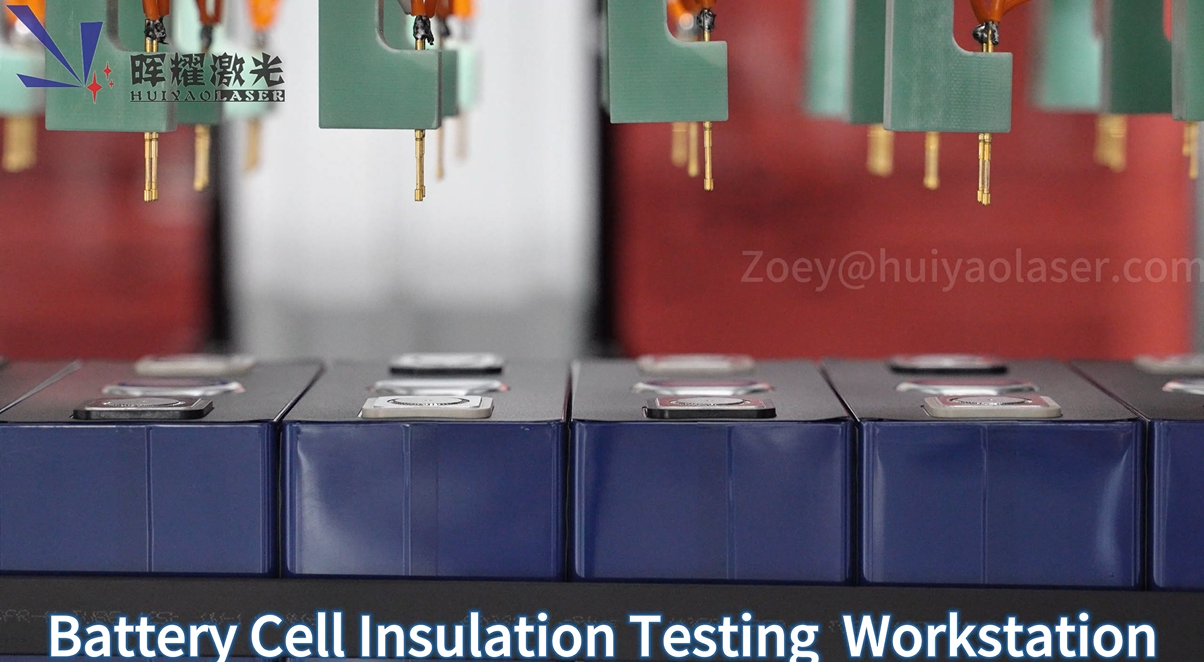

Introduction of Battery Module Insuation Testing Workstation
Battery modules are widely used in various industries, from electric vehicles (EVs) to energy storage systems (ESS). These modules are made up of multiple individual cells that must be securely insulated to avoid electrical shorts and ensure safe and reliable operation. The insulation process involves the application of insulating materials, such as pads, films, or foils, to prevent direct contact between cells and other components.
The Battery Module Insulation Workstation is a specialized automated station within the production line that applies these insulation materials precisely and efficiently. With the growing demand for higher battery performance and safety standards, this workstation has become integral to high-volume, high-quality battery production.
Features of the Battery Module Insulation Testing Workstation
The insulation workstation in an automatic battery module production line offers several features designed to optimize the process of insulation application and ensure product quality. Key features include:
Automated Insulation Application
One of the standout features of the insulation workstation is its automation. The workstation is equipped with high-precision machines that automatically apply insulation materials to specific parts of the battery module. This reduces the risk of human error, ensures consistent application, and speeds up the overall production process.
Precision Placement and Handling
The workstation is equipped with advanced robotic arms, conveyors, and precision-guided systems that ensure the correct placement of insulation materials. Whether it's a single layer of insulating film or a complex multi-layer insulation system, the equipment guarantees uniformity and accuracy.
Inspection and Quality Control
High-tech inspection systems are integrated into the workstation to ensure that the insulation is correctly applied. This includes visual and mechanical inspection technologies, such as cameras and sensors, to detect any defects in the insulation layer (e.g., wrinkles, gaps, or improper adhesion). Automated quality control ensures that only modules meeting stringent safety standards move forward in the production line.
Flexible Material Handling
The workstation is designed to accommodate various types of insulation materials, including films, foils, and insulating pads. This flexibility is essential as different battery designs and technologies may require different insulation solutions. Automated material handling systems ensure that these materials are fed into the workstation seamlessly, reducing downtime and material waste.
Integration with Other Production Processes

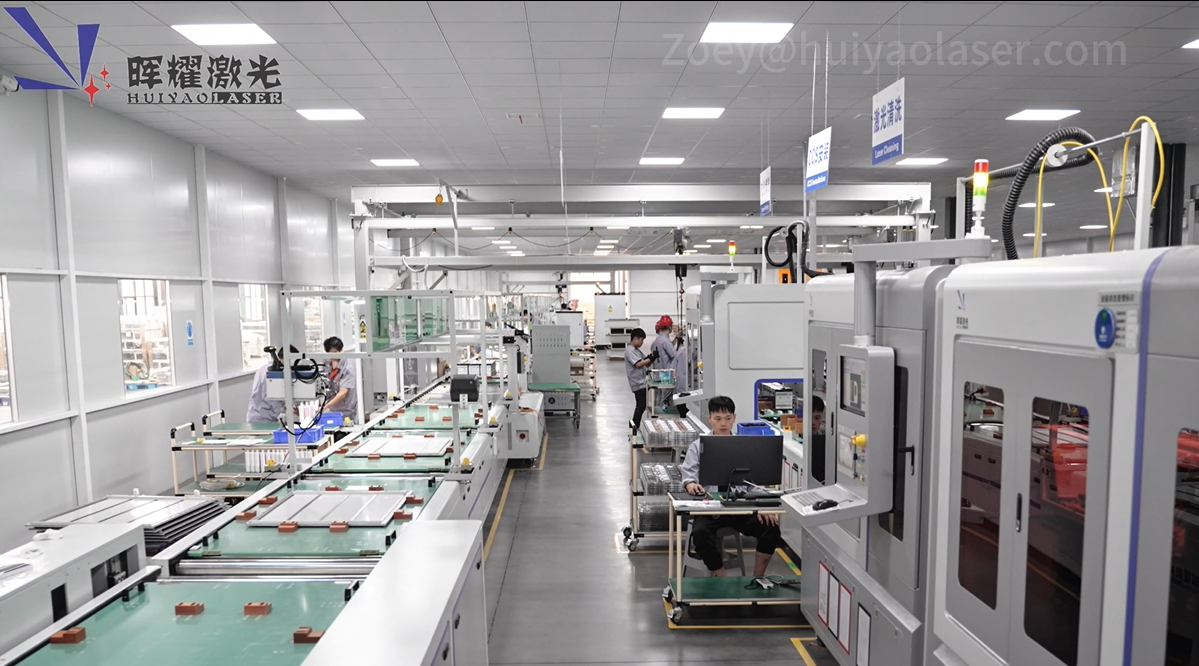

The insulation workstation is typically part of a larger, integrated production line that includes other processes such as cell sorting, polarity testing, and module assembly. This integration ensures smooth material flow, reduces manual interventions, and increases the overall efficiency of the battery production process.
Applications of the Battery Module Insulation Testing Workstation
The insulation workstation is used in the production of various types of battery modules, primarily in industries that require high-performance and safe battery solutions. Its key applications include:
Electric Vehicle (EV) Battery Production
In electric vehicle manufacturing, safety and performance are paramount. Battery modules used in EVs must be insulated to prevent short circuits and thermal runaway. The insulation workstation ensures that each battery module is correctly insulated, allowing the battery packs to meet the stringent safety regulations and performance standards required for electric vehicles.
Energy Storage Systems (ESS)
Energy storage systems, which store renewable energy for later use, also require highly reliable and safe battery modules. The insulation workstation is essential for ensuring that the battery modules are safely insulated, which is critical for the long-term performance and safety of large-scale energy storage systems.
Battery modules used in consumer electronics (e.g., smartphones, laptops, power banks) require efficient insulation to prevent short circuits and ensure the safety of the devices. The insulation workstation plays a role in making sure that each battery module is insulated according to specific industry standards.
With the growing adoption of solar and wind energy, the demand for renewable energy storage solutions has increased. Battery modules used in renewable energy storage systems must be safe and reliable, and the insulation workstation ensures that these modules are manufactured to meet these high standards.
Choosing the Right Battery Module Insulation Testing Workstation
Selecting the right insulation workstation for battery module production requires careful consideration of several factors to ensure it meets the specific requirements of the production process and the desired quality standards. Key factors to consider when choosing an insulation workstation include:
The scale of production is a crucial factor in choosing an insulation workstation. High-volume production lines may require more advanced, faster, and more automated workstations capable of handling large quantities of battery modules per day. Low-volume or customized production may prioritize flexibility and adaptability over speed.
Different types of insulation materials are used for various battery designs. The workstation should be compatible with the specific insulation materials needed for your production process. It should also support multiple materials if the production line needs to be versatile enough to handle different module designs.
Insulation application must be precise to avoid potential safety hazards or performance issues. Therefore, it is important to choose a workstation with high-precision capabilities, particularly for applications where thin, multi-layer insulation films are required.
Integration with Existing Production Line
The insulation workstation should integrate seamlessly with the rest of the production line, such as cell sorting, battery assembly, and testing stations. The workstation’s compatibility with other equipment and automation systems ensures smoother workflows, reduces bottlenecks, and minimizes production downtime.
Inspection and Quality Control
The quality control features of the workstation, such as automated visual inspection, thermal imaging, and sensors, should meet the highest standards for defect detection. It is essential to ensure that defective battery modules are flagged and removed before they reach the final stages of production.
While automation can significantly boost productivity, it is also important to assess the cost-effectiveness of the workstation. The initial investment, maintenance costs, and return on investment (ROI) should be carefully evaluated. Efficient use of materials, energy, and labor also contributes to the overall cost-efficiency of the workstation.
Supplier of Battery Module Insulation Testing Workstation
Huiyao Laser Technology (Luoyang) Co., Ltd. is a high-tech enterprise focusing on the research and development, manufacturing and sales of equipment for the new energy industry. Huiyao Laser provides comprehensive high-performance laser systems designed for the automotive, electronics, medical equipment, aerospace and other industries and committed to providing customers with comprehensive laser welding equipment, battery cell assembly line equipment, module PACK automatic line equipment, battery structural parts automation equipment and other high-end intelligent equipment. It can tailor the most suitable production line solutions according to the different production needs of customer companies.
Conclusion
The Battery Module Insulation Workstation is a crucial component of the battery manufacturing process, ensuring that battery modules are safely insulated to prevent electrical shorts and ensure optimal performance. By integrating automation, precision, and quality control features, this workstation helps manufacturers meet the growing demand for high-performance, safe, and reliable batteries used in electric vehicles, energy storage systems, consumer electronics, and renewable energy storage applications.
