What is Pouch Battery Laser Welding?
Pouch battery laser welding is a precise and highly effective technique used to weld various components of a pouch-type lithium-ion or lithium-polymer battery. This type of welding is mainly employed in the assembly of battery modules, where laser beams are used to join materials such as the metal tabs, electrodes, and other parts of the pouch cell. The process involves focused laser light, which generates localized heat to melt and fuse the materials together without affecting the rest of the battery's structure.
Principle of Pouch Battery Laser Welding
The principle behind laser welding of pouch batteries involves directing a concentrated laser beam onto the material to be welded. The high-energy laser beam is absorbed by the material, which causes rapid local heating. The heat generated melts the material at the point of contact, and the molten pool solidifies upon cooling, creating a bond. This is a non-contact process that offers precision and minimal heat-affected zone (HAZ), making it ideal for the delicate and compact design of pouch batteries.
Steps:
Laser Focus: A laser is focused on the joint area (e.g., electrode tab) to be welded.
Melting: The laser heats the material, causing it to melt.
Solidification: As the molten material cools, it solidifies and creates a bond.
Features of Pouch Battery Laser Welding
Precision and Accuracy: Laser welding allows for highly accurate joints, especially important in applications like battery assembly where precision is critical.
Minimal Heat Affected Zone (HAZ): The process produces minimal heat around the welding area, reducing the risk of damaging sensitive components.
Speed: Laser welding can be very fast, improving production efficiency in high-throughput manufacturing environments.
Automation: The process can be easily integrated into automated production lines, enhancing scalability.
Non-contact Welding: The laser doesn’t physically touch the material, which reduces wear and tear on the welding equipment.
Versatility: It can be used on various materials, including metals (e.g., copper, aluminum) and plastics, commonly found in pouch battery construction.
Applications of Pouch Battery Laser Welding

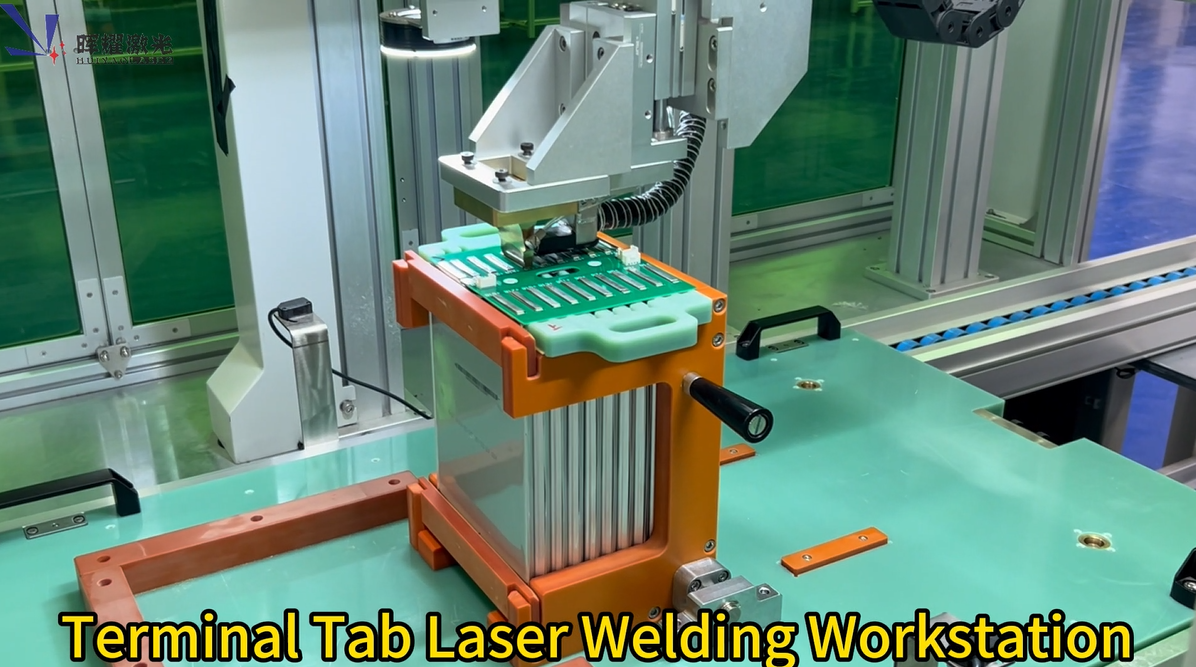

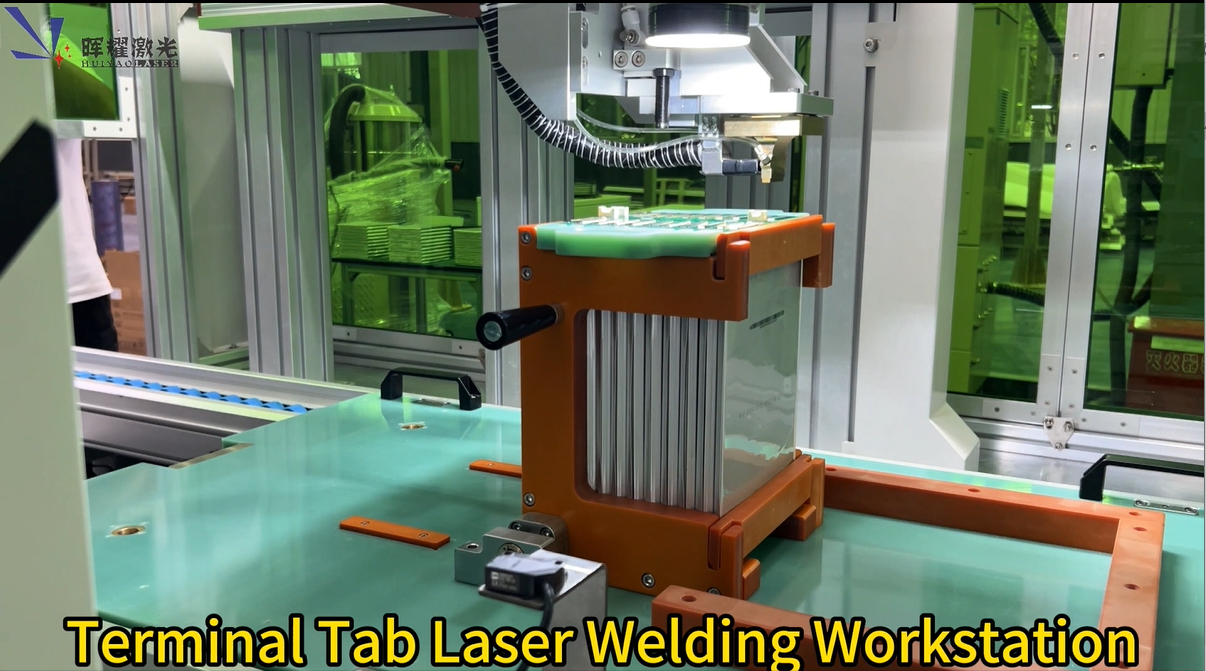

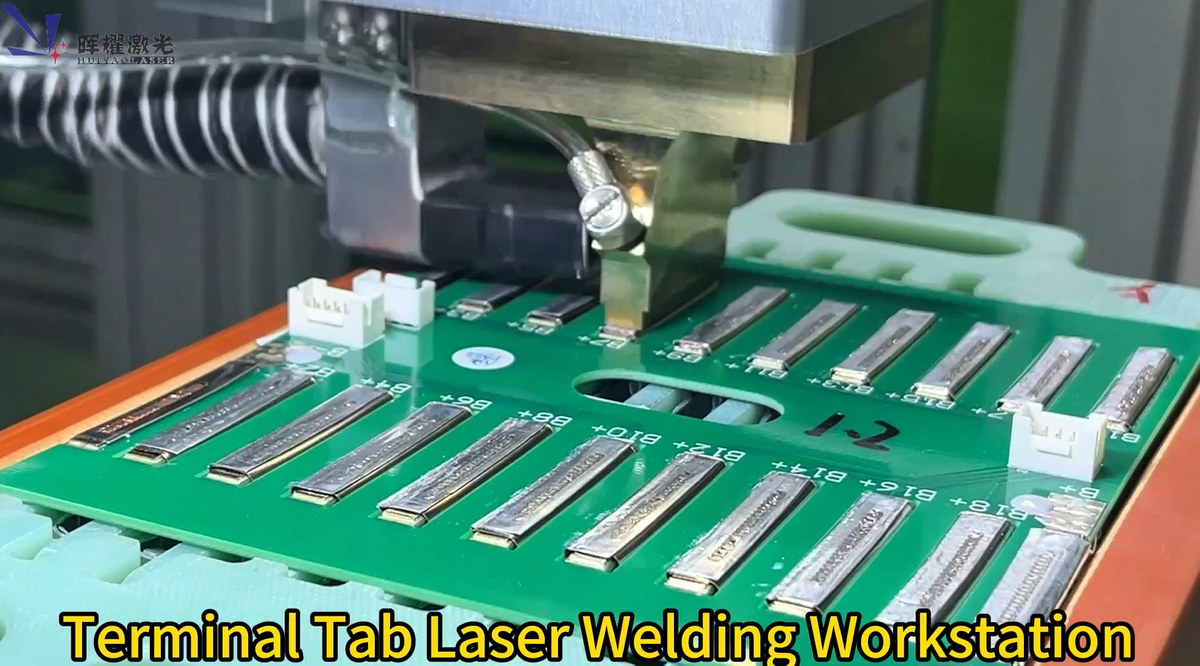

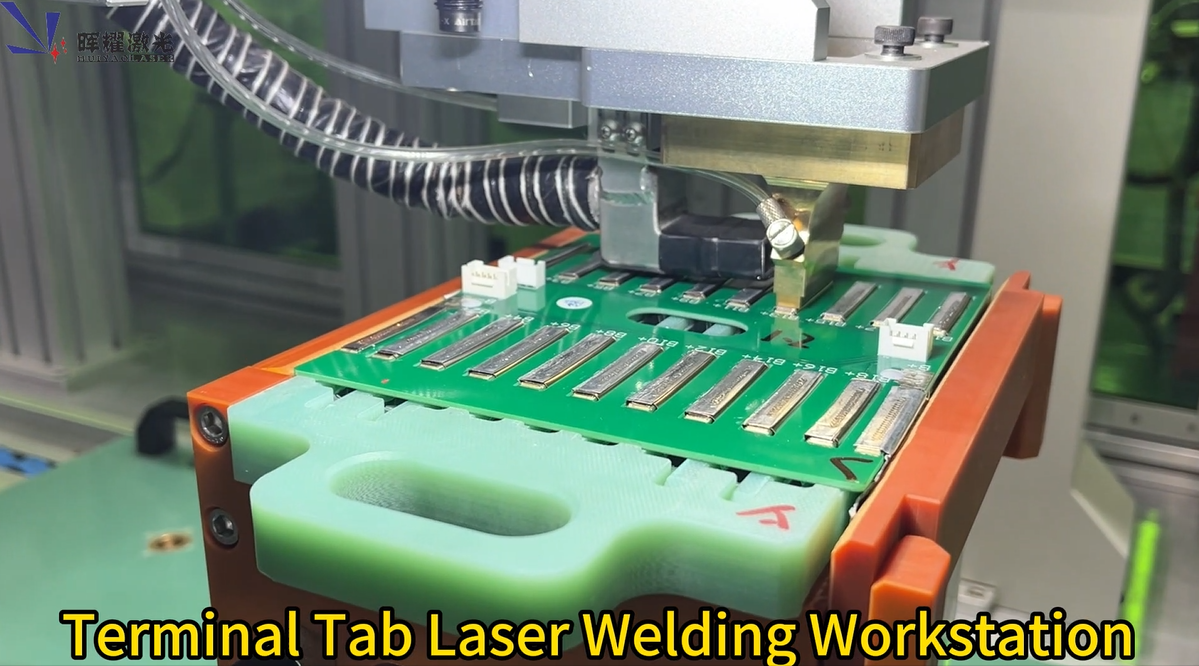

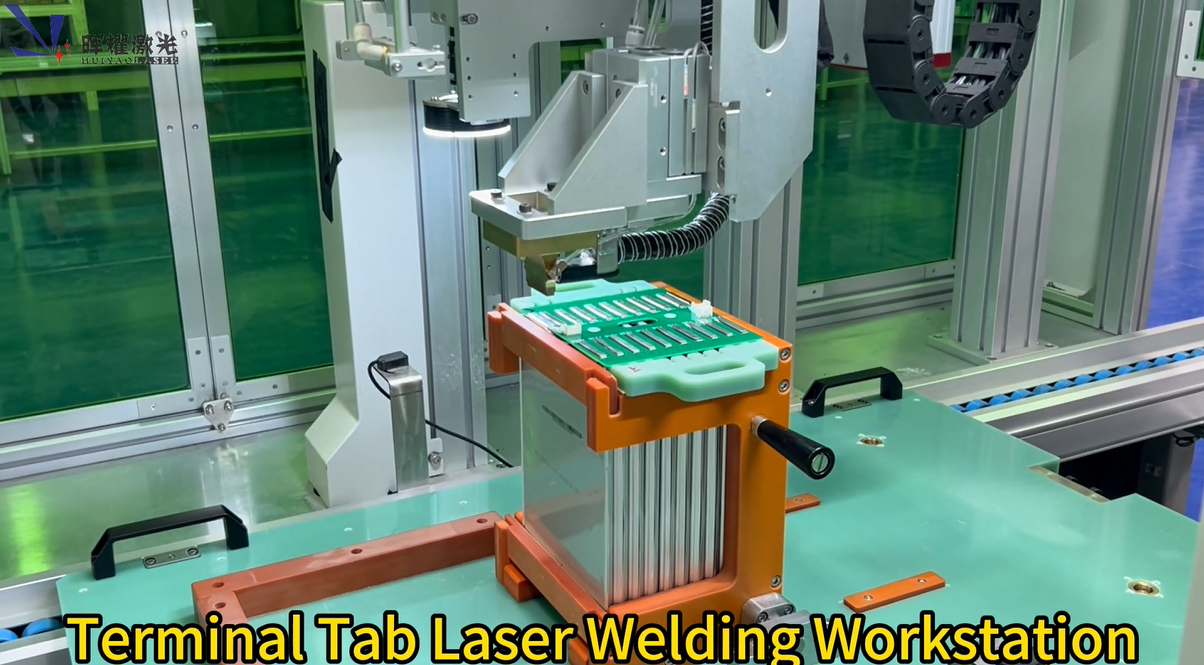

Battery Tab Welding: Pouch batteries have metal tabs that are welded to the electrodes, and laser welding ensures a strong and reliable connection.
Sealing of Battery Packs: The laser is also used to seal the outer pouch material, ensuring the safety and integrity of the battery.
Welding Electrode Contacts: Laser welding is used for welding connections between various internal components, including the cathode and anode tabs, inside the battery.
Battery Pack Assembly: In larger battery pack assembly lines, laser welding is used to join components of the pack, such as battery cells and interconnects.
Factors of Choosing a Pouch Battery Laser Welding Machine
When choosing a laser welding machine for pouch batteries, several factors need to be considered:
Laser Power: The machine should have sufficient laser power to weld the materials used in pouch batteries, typically ranging from 100W to 1kW depending on the application.
Welding Speed: Faster welding speeds are desirable for mass production but should be balanced with the precision needed.
Precision: High precision is required to ensure clean and strong welds without damaging the battery components.
Beam Quality: The laser beam quality (spot size, uniformity) impacts the quality of the weld and is crucial for detailed applications like battery manufacturing.
Cooling System: Laser welding generates heat, so an effective cooling system is necessary to maintain equipment longevity and performance.
Automation and Integration: The ability to integrate with existing automated production lines is important for maintaining production efficiency.
Material Compatibility: Ensure that the machine can handle the specific metals and materials (such as aluminum, copper, or steel) used in the battery's construction.
Safety Features: As batteries are sensitive and potentially hazardous, safety features like fume extraction, protective covers, and safety sensors are important.
The price of pouch battery laser welding systems can vary depending on factors like the power and specifications of the machine, as well as the complexity of the setup. Typically:
Basic Systems: Suitable for simpler applications with standard power and features.
Mid-Range Systems: These systems offer higher power, better precision, and additional features for more demanding applications.
High-End Systems: Advanced systems designed for large-scale manufacturing or complex battery designs, offering superior performance and customization.
The price will also depend on whether the system includes additional automation, vision systems, and other specialized features.
Supplier of Pouch Battery Laser Welding Machine

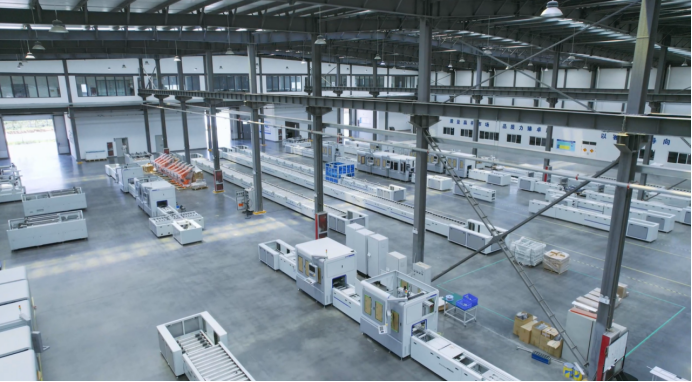

Huiyao Laser Technology (Luoyang) Co., Ltd. is a high-tech enterprise focusing on the research and development, manufacturing and sales of equipment for the new energy industry. Huiyao Laser provides comprehensive high-performance laser systems designed for the automotive, electronics, medical equipment, aerospace and other industries and committed to providing customers with comprehensive laser welding equipment, battery cell assembly line equipment, module PACK automatic line equipment, battery structural parts automation equipment and other high-end intelligent equipment. It can tailor the most suitable production line solutions according to the different production needs of customer companies.
