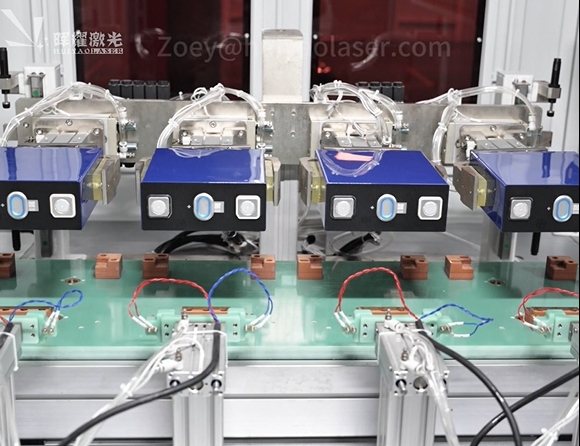

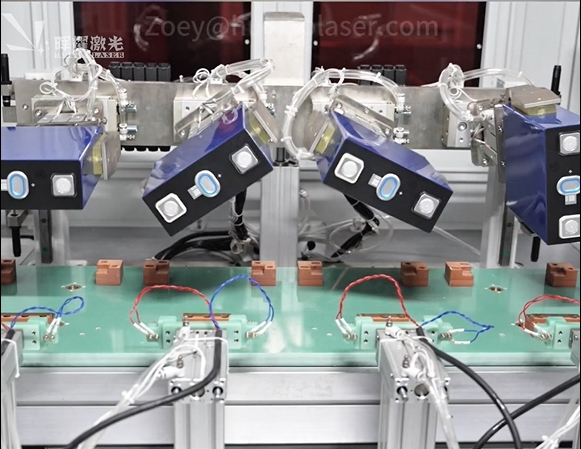

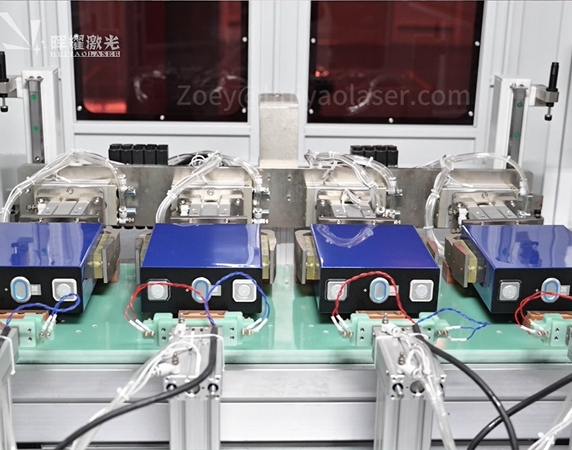

A Polarity Detection Workstation is a system used in the assembly or testing of battery modules to ensure that the positive and negative terminals (polarity) of individual cells are correctly oriented. In battery modules, particularly lithium-ion or other rechargeable battery types, the correct polarity is crucial for safety, performance, and reliability. The workstation is designed to detect any misorientation of the battery cells and flag them for correction before they are assembled into larger battery packs.
Features of Polarity Detection Systems
Some key features of a Polarity Detection Workstation include:
Automatic Detection: Uses sensors or electrical measurement techniques to automatically detect the positive and negative poles of battery cells.
Accuracy: High-precision tools for detecting even slight misalignments in the orientation of battery terminals.
High Speed: The ability to test multiple battery cells rapidly, which is important for high-volume production.
Visual Indicators: Often includes visual feedback like lights or displays that alert operators about misalignment.
Error Logging: A record of detected errors that can be reviewed for quality control and process improvement.
Integration with Other Stations: Typically integrates seamlessly with other stations in the battery assembly line for sorting and reorientation.
Flexible Design: Can handle different battery sizes and configurations.
Polarity detection is primarily used in the battery manufacturing process and is vital for:
Battery Cell Assembly: Ensuring that individual cells are assembled into the battery pack with the correct polarity.
Battery Module Testing: Detecting any polarity issues before a module is installed into a final product, such as electric vehicles (EVs), power tools, or energy storage systems.
Preventing Faults: Detecting and preventing damage due to reverse polarity, which could lead to short circuits, overheating, or failure of the battery pack.
The price of a polarity detection machine can vary widely depending on several factors:
Complexity of the System: Basic systems with sensors and basic detection.
Advanced Features: Workstations with advanced capabilities (like integrated quality control, AI-based analysis, or multi-cell testing) .
Volume of Automation: High-throughput systems designed for mass production may also add to the cost.
It's advisable to consult suppliers directly for specific quotes based on your production needs.
When choosing a polarity detection workstation, consider the following factors:
Accuracy and Reliability: The system must reliably detect polarity issues with minimal false positives or negatives.
Speed: Look for a system that can handle your production volume without causing bottlenecks.
Compatibility: Ensure the system is compatible with the types and sizes of batteries in your production line.
Cost: Balance the machine's cost with the required features and your budget.
Maintenance Requirements: Consider ease of maintenance and availability of spare parts.
Integration Capabilities: Ensure the workstation can be easily integrated into your existing assembly line, especially if you're automating other processes.
After-Sales Support: Look for suppliers offering good technical support and warranty services.
