What are Prismatic Battery Modules?
Prismatic battery modules are a type of lithium-ion or other advanced battery technology commonly used in large-scale energy storage applications. These modules consist of multiple individual battery cells arranged in a flat, rectangular (or prismatic) shape. Prismatic battery modules are favored in industries such as electric vehicles (EVs) and renewable energy storage because they offer higher energy density, better space utilization, and improved structural stability compared to other battery designs, such as cylindrical cells.
In terms of design, prismatic cells are easier to assemble into a pack and can be optimized for specific applications, making them ideal for large-scale systems where space is at a premium and energy efficiency is critical.
The Importance of Insulation Testing in Battery Modules
Insulation testing is a critical quality assurance measure in the manufacturing process of prismatic battery modules. Its purpose is to verify that the insulation between the electrical components—such as the battery cells, wiring, and connectors—remains intact and effective throughout the module's lifespan. A failure in insulation could lead to electrical faults, including short circuits, leakage currents, or catastrophic failures like fires or explosions.
In a prismatic battery module, insulation serves as the protective barrier between the high-voltage internal components and external elements. If this insulation is compromised, it could result in unintended current flow, leading to a range of safety issues. For example, if the insulation fails between battery cells, it could create a short circuit, which might cause the battery to overheat or even catch fire. Similarly, poor insulation between the battery module and external components can pose significant electrical hazards.
How Insulation Testing Works

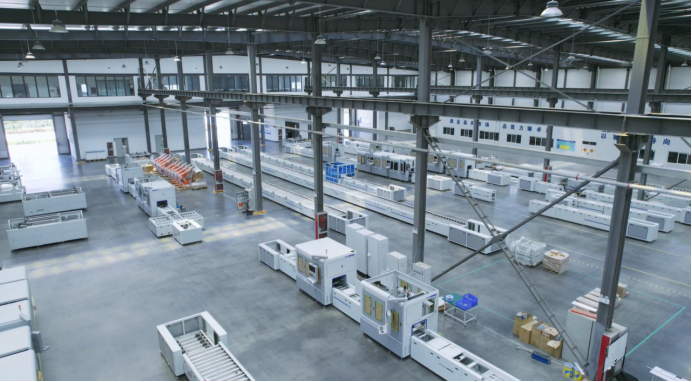

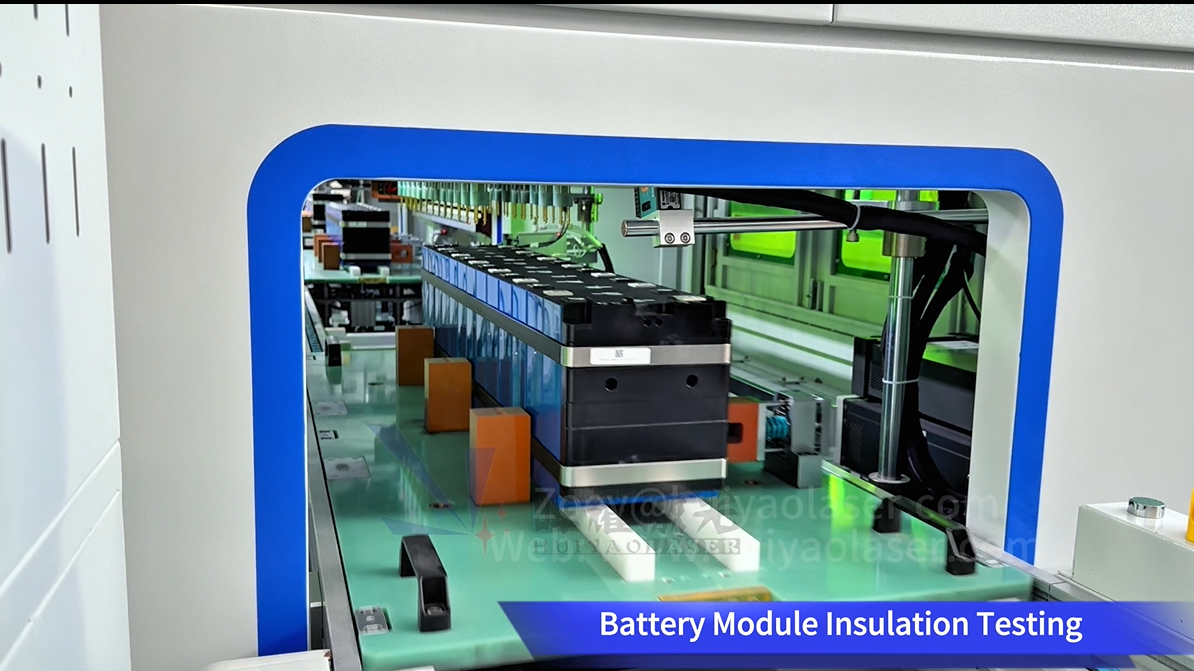

Insulation testing for prismatic battery modules involves applying a high-voltage test to the battery’s components to simulate real-world electrical stress. The test measures the resistance of the insulation material and ensures that it provides an adequate barrier against electrical flow.
Here’s a breakdown of how the process works:

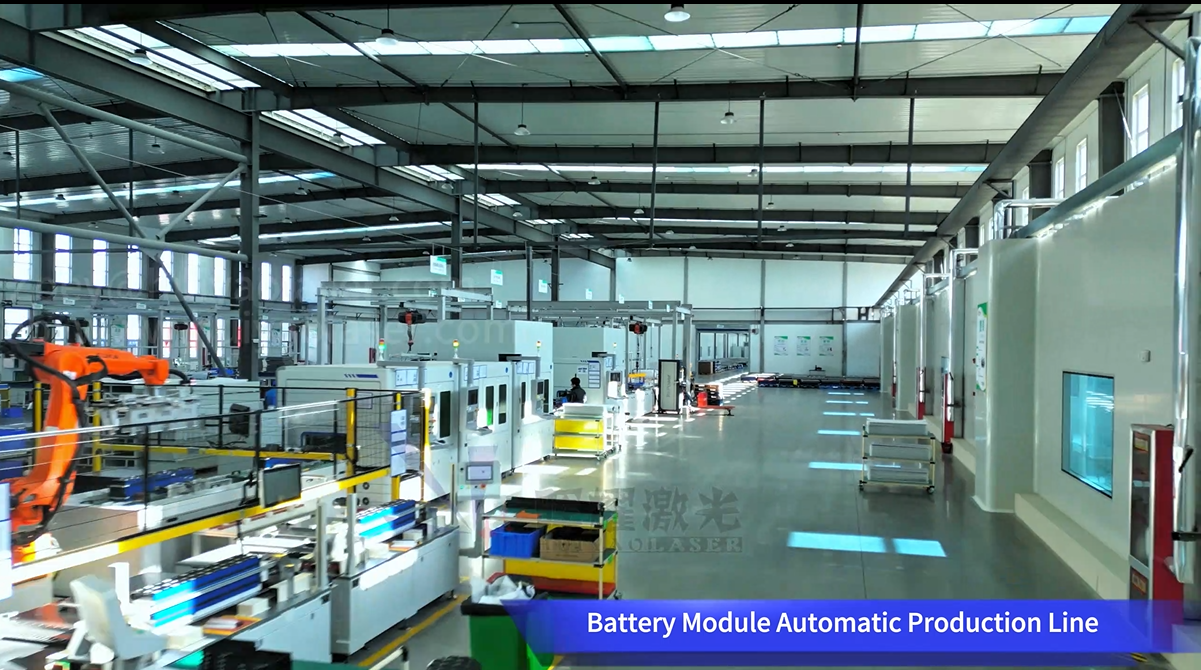

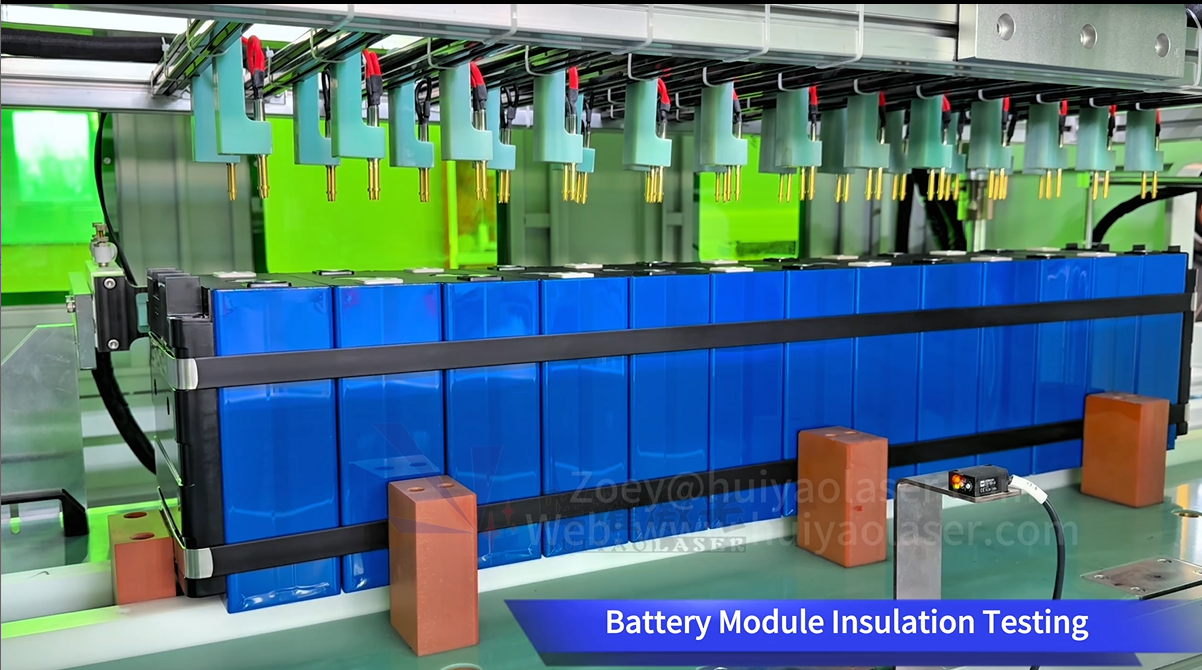

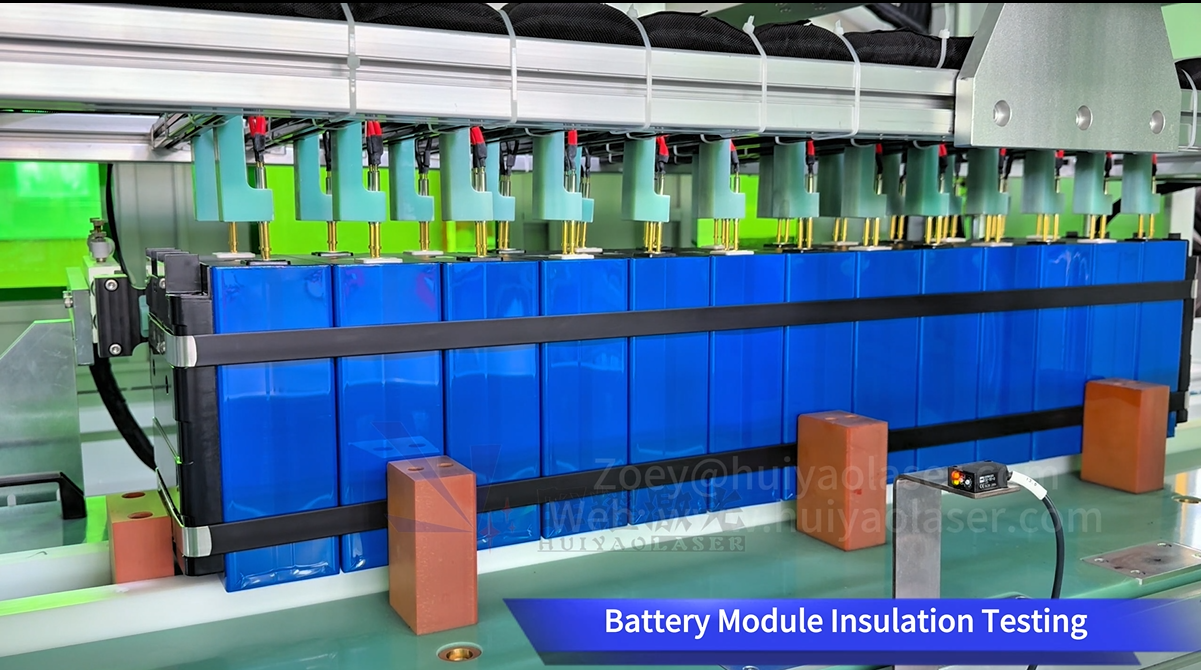

Initial Setup: The battery module is connected to a test device, often a high-voltage insulation tester, which is designed to simulate the environmental and electrical stresses that the module will experience during its use.
Voltage Application: A specific test voltage, typically higher than the normal operating voltage of the battery, is applied to the module’s insulation system. This step is intended to test the insulation’s ability to withstand high voltages and detect any weaknesses in the insulation material.
Measurement: The tester measures the insulation resistance, typically in megaohms (MΩ), and checks for any leakage currents that may indicate a breakdown in the insulation. If the resistance value is too low or there is a significant leakage current, the module fails the test.
Real-world Simulation: The test conditions simulate environmental factors such as temperature fluctuations, moisture, or mechanical stress. This ensures the module’s insulation will remain intact under real-life conditions, which are often far from ideal.
Safety Cutoff: In cases where the insulation resistance falls below the acceptable threshold or leakage current is detected, the testing equipment will automatically halt the test, indicating a failure in the insulation system. This helps prevent any potentially dangerous situations before the battery module is used in the field.
Why is Insulation Testing Crucial for Safety?
The primary goal of insulation testing is to prevent electrical failures that can lead to safety hazards. Battery modules are subjected to harsh conditions during their lifetime, including temperature variations, vibrations, and exposure to moisture. These factors can cause the insulation materials to degrade or fail, leading to potentially dangerous situations.
By conducting thorough insulation testing, manufacturers can identify any potential issues early in the production process. This helps to ensure that only safe and reliable battery modules reach the market, reducing the risk of accidents, such as fires, electric shocks, or equipment failures.
Benefits of Insulation Testing for Manufacturers and Consumers
Reliability and Safety: By ensuring that the insulation is intact, manufacturers can provide reliable and safe products, minimizing the risk of electrical failures.
Compliance with Regulations: Insulation testing helps manufacturers comply with international safety standards and industry regulations, making it easier to bring products to market without delays or compliance issues.
Cost Savings: Identifying insulation problems during the production phase can save significant costs associated with product recalls, repairs, or warranty claims. It also prevents costly damage to other components in the battery module.
Consumer Confidence: Consumers can have confidence that the battery modules they are using, whether in electric vehicles or home energy storage systems, have undergone rigorous safety tests and meet high standards for performance and reliability.
The Future of Insulation Testing in Battery Technology
As battery technologies continue to evolve and energy storage systems become more integrated into daily life, the role of insulation testing in ensuring safety and performance becomes even more critical. With the growing adoption of electric vehicles, renewable energy solutions, and large-scale energy storage systems, the need for advanced testing procedures will only increase.
Prismatic battery modules, with their higher energy density and efficiency, are at the forefront of this shift, making insulation testing a key aspect of their development. Through continuous advancements in testing equipment and adherence to international safety standards, manufacturers can ensure that battery modules are safe, reliable, and capable of meeting the demands of tomorrow’s energy systems.
