OCV (Open Circuit Voltage) sorting is a process used in the production of pouch lithium-ion battery modules to ensure that cells with similar voltage levels are grouped together. In this process, the voltage of each individual cell is measured without any load (i.e., no current is being drawn). The purpose of this sorting is to ensure that only cells with similar voltage characteristics are assembled into battery packs to maintain uniform performance, safety, and longevity.
The principle behind OCV sorting is based on the fact that cells with similar OCV values will have similar charge/discharge characteristics. When these cells are grouped together, they perform more efficiently, and the battery pack achieves a more balanced and stable output.
Process flow:

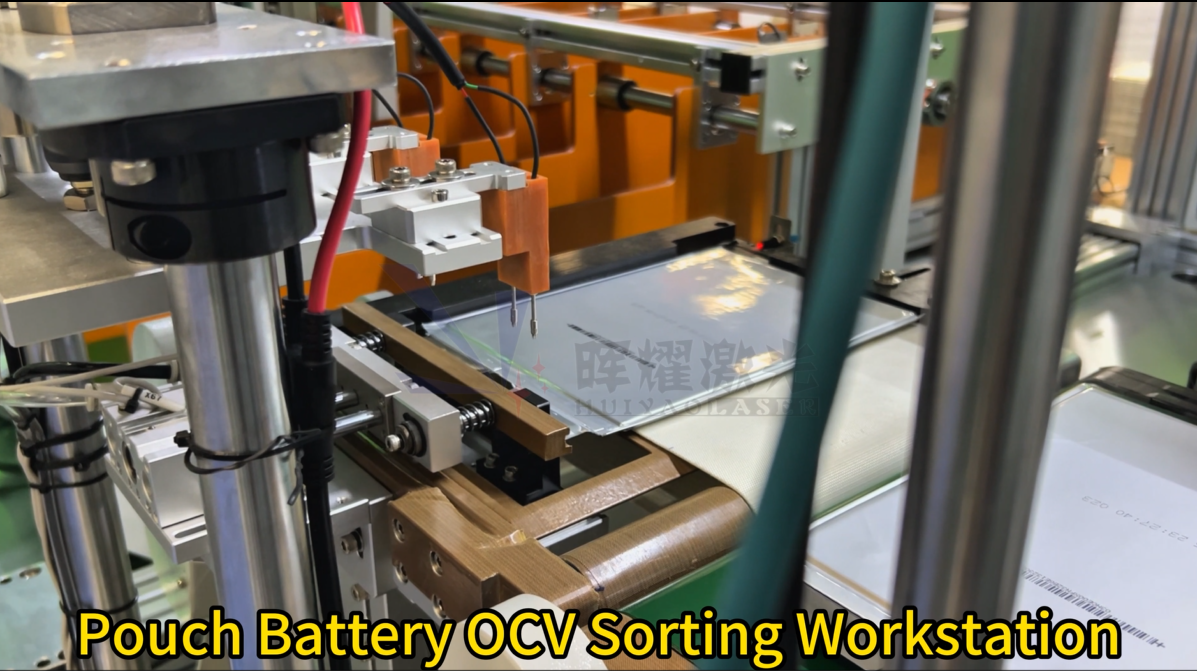

OCV Measurement: The voltage of each cell is measured under open-circuit conditions (i.e., no current is being drawn).

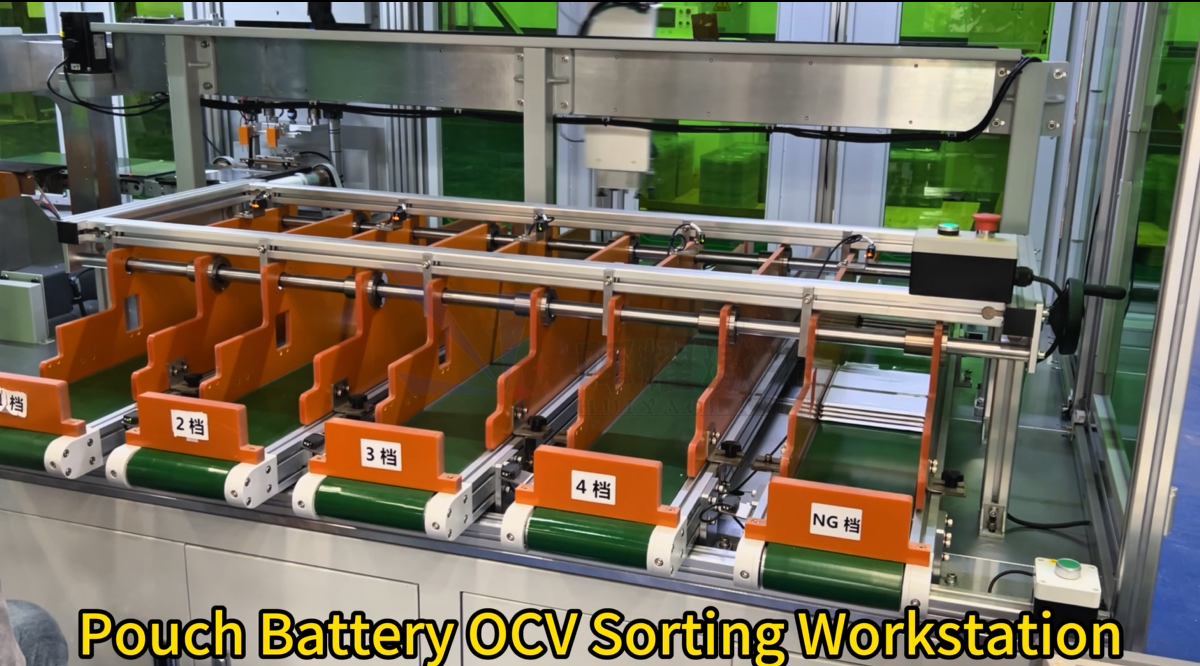

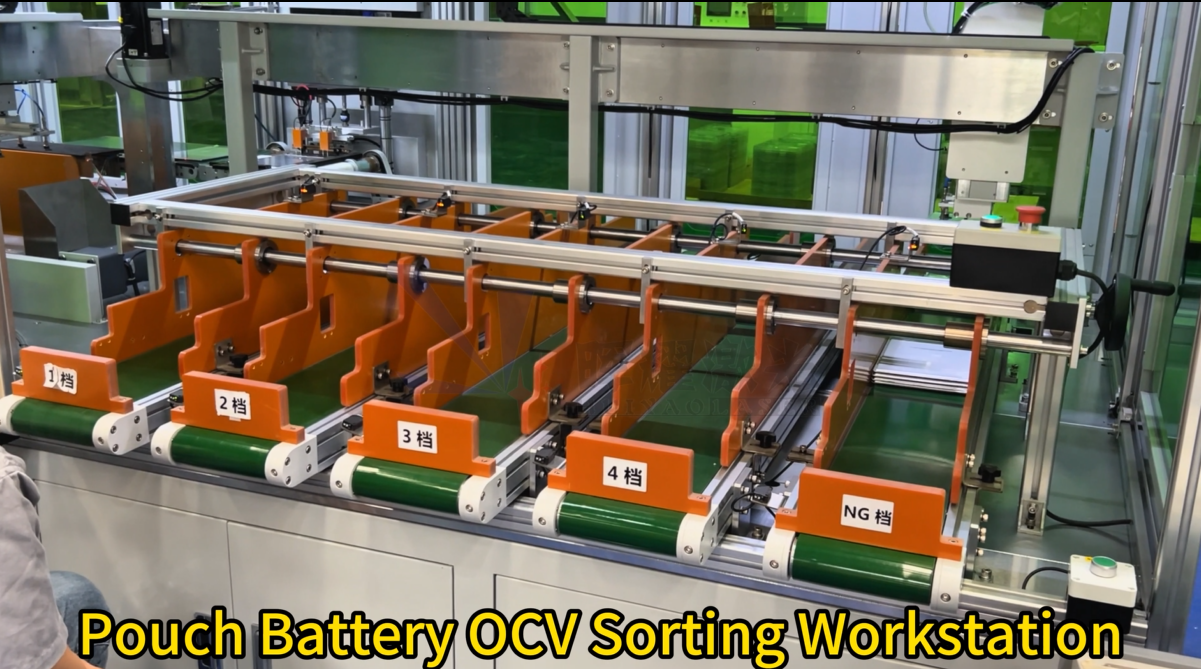

Sorting: Cells are then classified based on their measured OCV values, typically into different voltage bins.
Selection: Cells within the same OCV range are selected for further assembly into battery modules.
This sorting process ensures that battery packs will have a balanced voltage profile, which helps prevent issues like overcharging, undercharging, or overheating during operation.
Features of Pouch Battery OCV Sorting
High Precision Measurement: Accurate OCV measurement is crucial to ensure the cells are correctly grouped based on voltage levels.
Automation: Many OCV sorting machines are automated to handle high throughput with minimal human intervention, ensuring high efficiency.
Fast Sorting: Modern OCV sorting systems can test and sort cells quickly, which is essential in high-volume production environments.
Integration with Production Lines: OCV sorting equipment is often integrated with other production processes such as testing, packaging, or labeling.
Battery Manufacturing: OCV sorting is an essential part of the production process for lithium-ion pouch cells used in various applications, including electric vehicles (EVs), energy storage systems, and portable electronics.
Quality Control: It helps maintain uniformity and consistency in battery packs by ensuring that only cells with similar voltages are grouped together.
Battery Pack Assembly: In large-scale battery pack assembly lines, OCV sorting ensures that packs are built with cells that have similar voltage characteristics, improving overall pack performance and lifespan.
Factors for Choosing a Pouch Battery OCV Sorting Machine
Accuracy: The machine should have a high degree of accuracy in measuring the OCV, as even slight differences can affect performance.
Throughput: High-volume production lines require machines that can sort a large number of cells per hour.
Speed: The sorting process should be fast to keep up with the pace of the manufacturing process.
Flexibility: The machine should be capable of sorting cells across a wide voltage range to accommodate different types of pouch cells.
Integration: The sorting machine should integrate easily into the existing production line without causing bottlenecks.
Cost: The total cost of ownership, including maintenance and operational costs, should align with the production budget.
User Interface: A user-friendly interface helps with operation and minimizes the chances of errors.
Reliability: Machines should have low failure rates and be able to operate continuously in a high-throughput environment.
Price of Pouch Battery OCV Sorting Machines
The price of an OCV sorting machine can vary widely based on several factors:
Brand and Quality: High-quality machines from well-known manufacturers tend to be more expensive.
Throughput Capacity: Machines with higher throughput (i.e., the ability to sort more cells per hour) usually come with a higher price tag.
Automation Level: Fully automated systems cost more than semi-automated ones.
Customization: Machines that are tailored to specific requirements may cost more than standard models.
Generally, the price of a basic OCV sorting machine could range from $20,000 to $100,000 or more, depending on these factors.
Suppliers of Pouch Battery OCV Sorting Machines

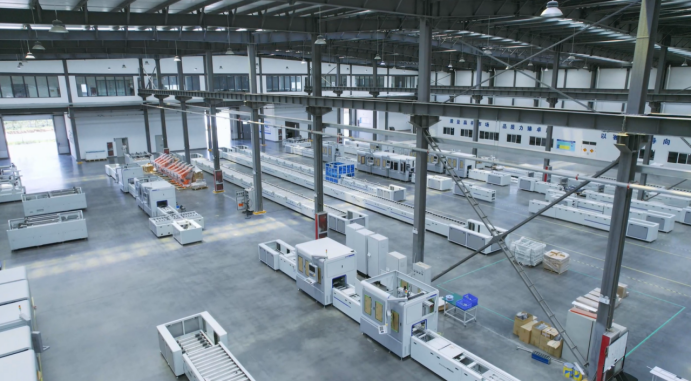

Huiyao Laser Technology (Luoyang) Co., Ltd. is a high-tech enterprise focusing on the research and development, manufacturing and sales of equipment for the new energy industry. Huiyao Laser provides comprehensive high-performance laser systems designed for the automotive, electronics, medical equipment, aerospace and other industries and committed to providing customers with comprehensive laser welding equipment, battery cell assembly line equipment, module PACK automatic line equipment, battery structural parts automation equipment and other high-end intelligent equipment. It can tailor the most suitable production line solutions according to the different production needs of customer companies.
Conclusion
Pouch battery OCV sorting is crucial for ensuring the quality and performance of battery packs, especially in high-demand industries like electric vehicles and energy storage. By accurately sorting cells based on their voltage, manufacturers can improve the efficiency, safety, and lifespan of battery packs. When selecting an OCV sorting machine, factors like accuracy, throughput, speed, and cost need to be carefully considered to align with the production goals.
