Laser welding plays a critical role in the assembly of pouch battery modules, especially when it comes to welding the terminal tabs. The precise and efficient nature of laser welding ensures high-quality connections, essential for the performance and safety of battery packs used in various industries, including electric vehicles (EVs), energy storage systems, and consumer electronics.
What is Pouch Battery Terminal Tab Laser Welding?

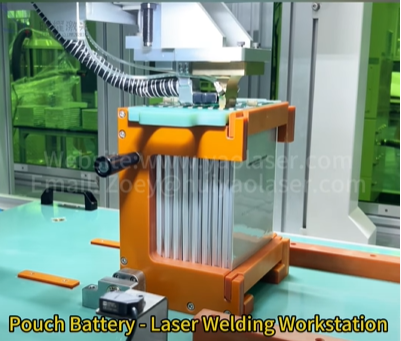

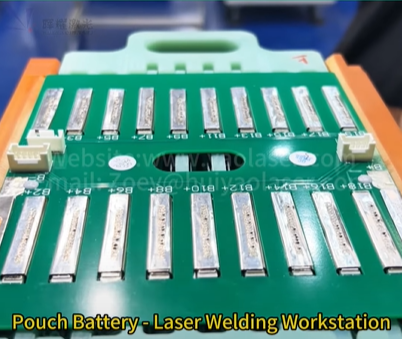

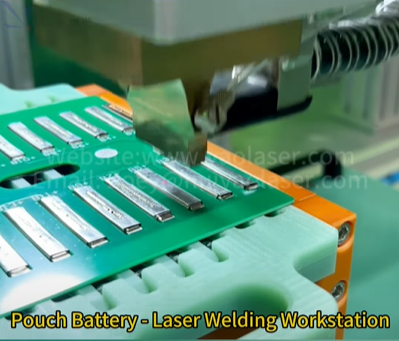

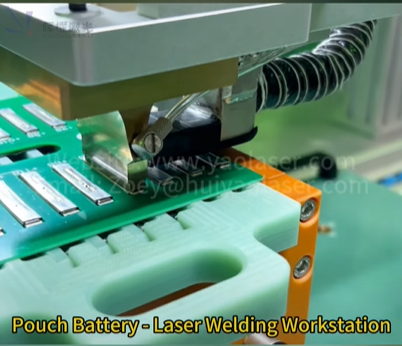

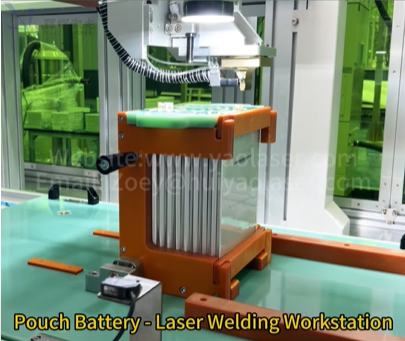

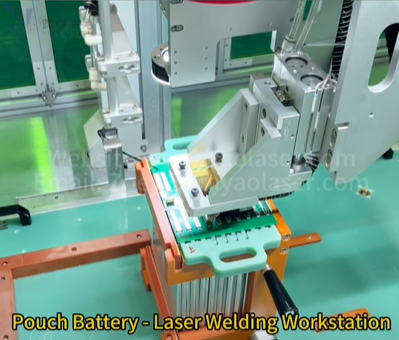

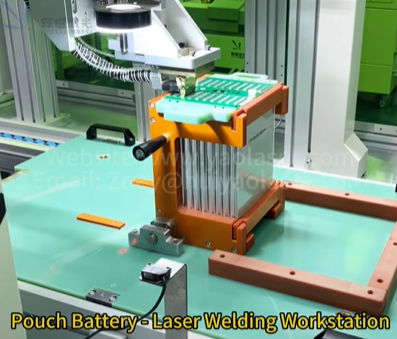

Pouch battery terminal tab laser welding refers to the process of using a laser beam to weld the terminal tabs of the battery's anode and cathode to the main battery pack structure. These terminal tabs are crucial as they facilitate the electrical connections to the external circuit. Laser welding ensures a secure, high-strength, and low-resistance connection between the tabs and the battery terminals.
Difference Between Prismatic Battery Module Laser Welding and Pouch Battery Laser Welding
Shape & Structure:
Pouch Battery: Flexible and thin, encased in a sealed pouch, requiring precision and control in welding to avoid heat damage.
Prismatic Battery: Rigid and box-shaped, providing more room for welding but often requiring higher power to penetrate thicker terminal tabs.
Welding Challenges:
Pouch Battery: The flexibility and thinness of the pouch require lower heat input and more careful control to prevent pouch deformation.
Prismatic Battery: More stable and less prone to deformation, allowing for slightly higher heat and more robust welding processes.
Welding Equipment:
Pouch Battery: Requires advanced, high-precision laser welding systems due to the delicate nature of the materials.
Prismatic Battery: Can use relatively simpler laser systems for welding the thicker terminals.
Features of Pouch Battery Terminal Tab Laser Welding
Precision: Laser welding offers micron-level accuracy, essential for handling the small, delicate components of pouch batteries.
Low Heat Input: This minimizes the risk of damaging the battery materials, ensuring long-term reliability and safety.
Clean Welding: The process leaves no residue or contamination, which is vital for the electrical performance of the battery.
Automation Compatibility: Laser welding can be integrated with automated assembly lines, increasing production efficiency.
Advantages of Pouch Battery Terminal Tab Laser Welding
High Welding Quality: The result is a consistent and high-quality weld, crucial for ensuring battery performance.
Minimal Material Distortion: Since the laser focuses on a small area, it reduces the heat-affected zone, minimizing deformation of the battery components.
High-Speed Process: Laser welding can be performed quickly, making it ideal for large-scale production.
No Need for Consumables: Unlike traditional welding methods, laser welding does not require filler materials or electrodes, which reduces operational costs.
Applications of Pouch Battery Modules
Electric Vehicles (EVs): Used in high-capacity battery packs for electric cars, buses, and trucks.
Energy Storage Systems: Large-scale batteries for renewable energy storage.
Consumer Electronics: Batteries in laptops, smartphones, and other portable devices.
Renewable Energy Systems: Solar power storage solutions using large pouch battery modules.
Factors to Consider When Choosing a Pouch Battery Laser Welding Machine
Welding Power & Precision: The machine should have adjustable power settings to handle the thin pouch battery materials and terminal tabs.
Automation Integration: Consider whether the machine can integrate with existing production lines for higher efficiency.
Heat Management: Adequate cooling systems to prevent overheating of components during the welding process.
Safety Features: Ensuring the machine has robust safety mechanisms due to the high-energy nature of laser welding.
Maintenance & Support: Consider the ease of maintenance and availability of technical support.
Price of a Pouch Battery Laser Welding Machine
The cost of a pouch battery laser welding machine typically depend on the system's complexity, power, precision, and integration capabilities. High-end systems may include automated features and customized solutions, driving the price upwards
About Huiyao Laser

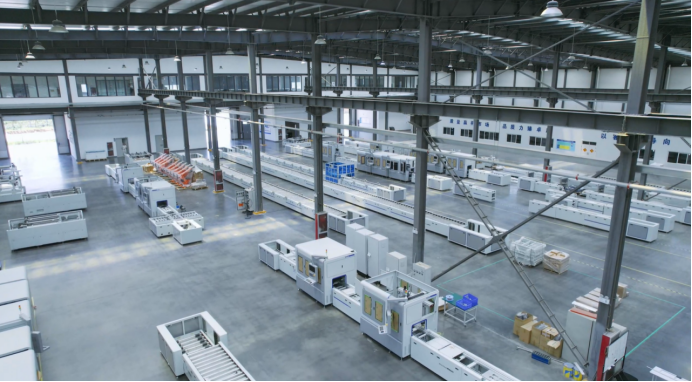

Huiyao Laser Technology (Luoyang) Co., Ltd. is a high-tech enterprise focusing on the research and development, manufacturing and sales of equipment for the new energy industry. Huiyao Laser provides comprehensive high-performance laser systems designed for the automotive, electronics, medical equipment, aerospace and other industries and committed to providing customers with comprehensive laser welding equipment, battery cell assembly line equipment, module PACK automatic line equipment, battery structural parts automation equipment and other high-end intelligent equipment. It can tailor the most suitable production line solutions according to the different production needs of customer companies.
