In Prismatic Battery Module PACK Assembly, Robotic Arm Module Stacking and Module Pressing play a crucial role in ensuring efficient, high-precision assembly. The robotic arm module stacking refers to the process of using robotic arms to precisely place and stack battery cells into specific configurations, while module pressing involves compressing the stacked modules to secure them into the desired shape and enhance their structural integrity.
Function of Robotic Arm Module Stacking and Pressing

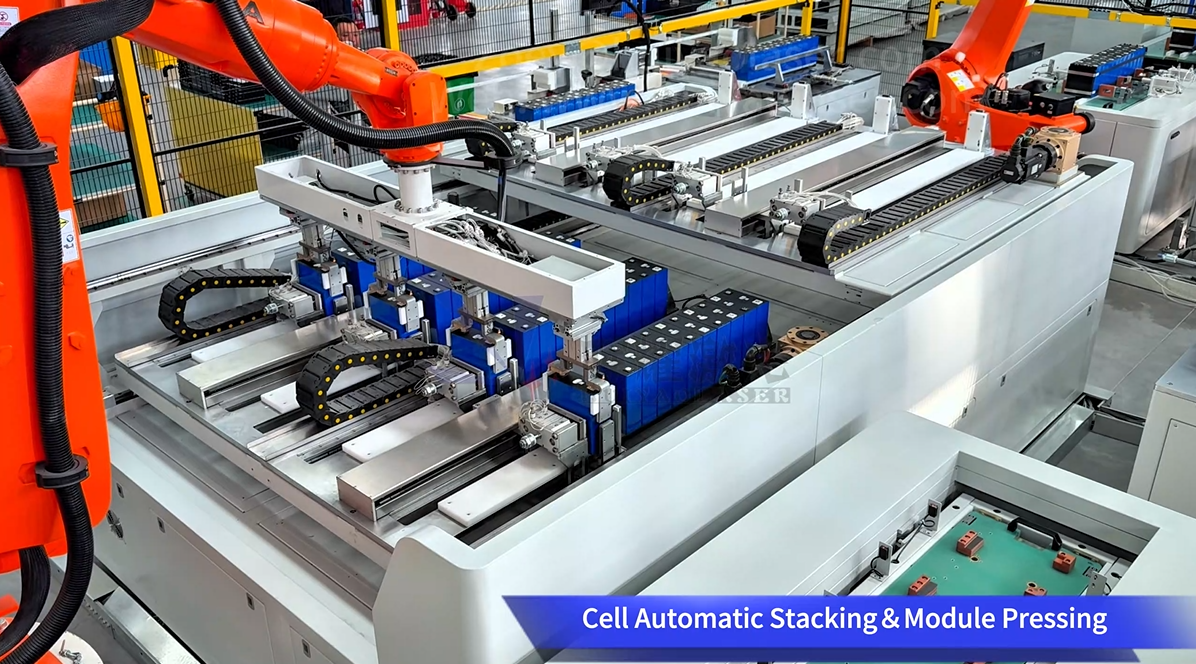

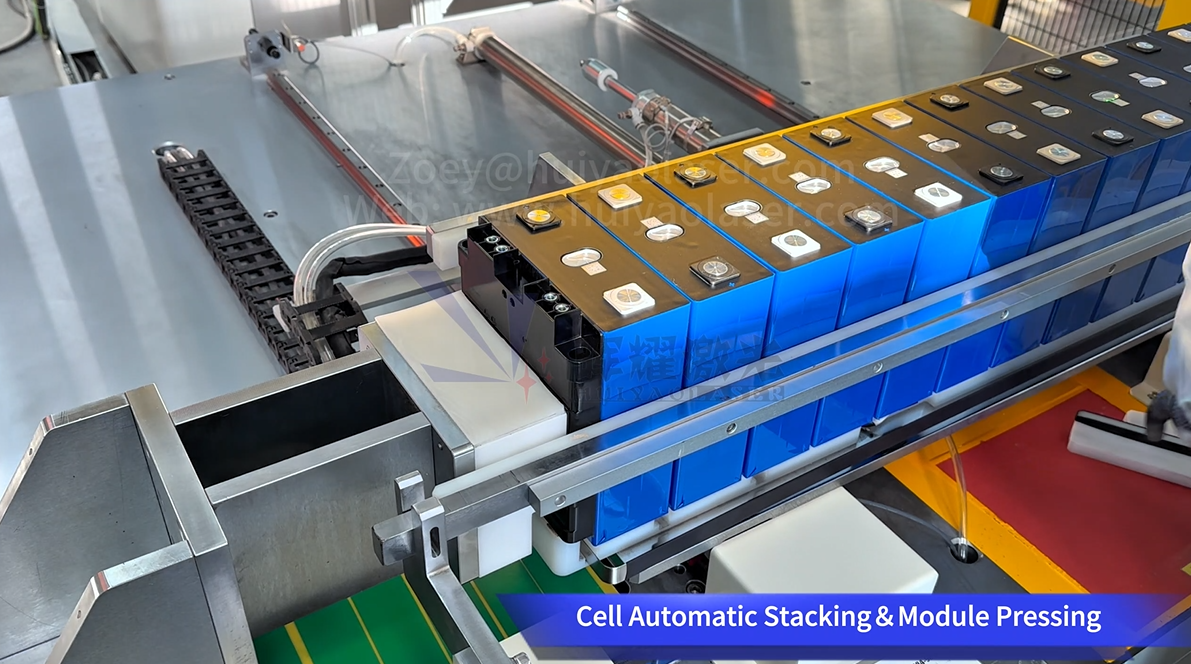

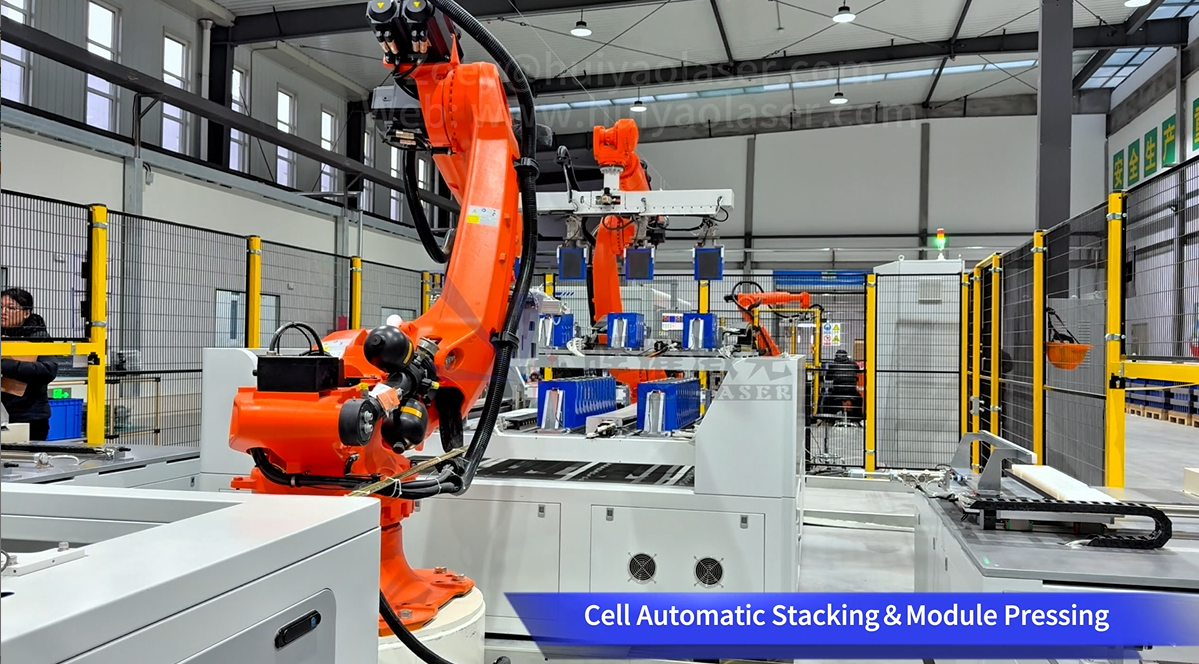

Module Stacking: The robotic arm is equipped with advanced grippers and sensors to pick and place battery cells in a predefined order and orientation. This ensures that each module has the correct number of cells and the cells are aligned properly for efficient functioning.

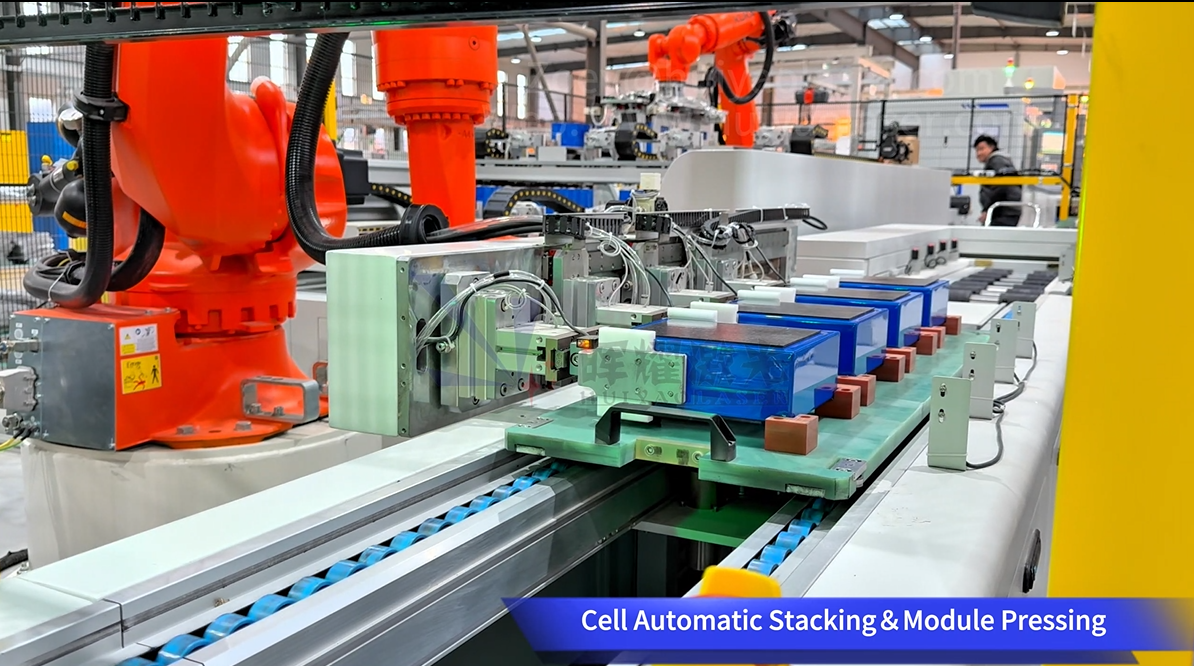

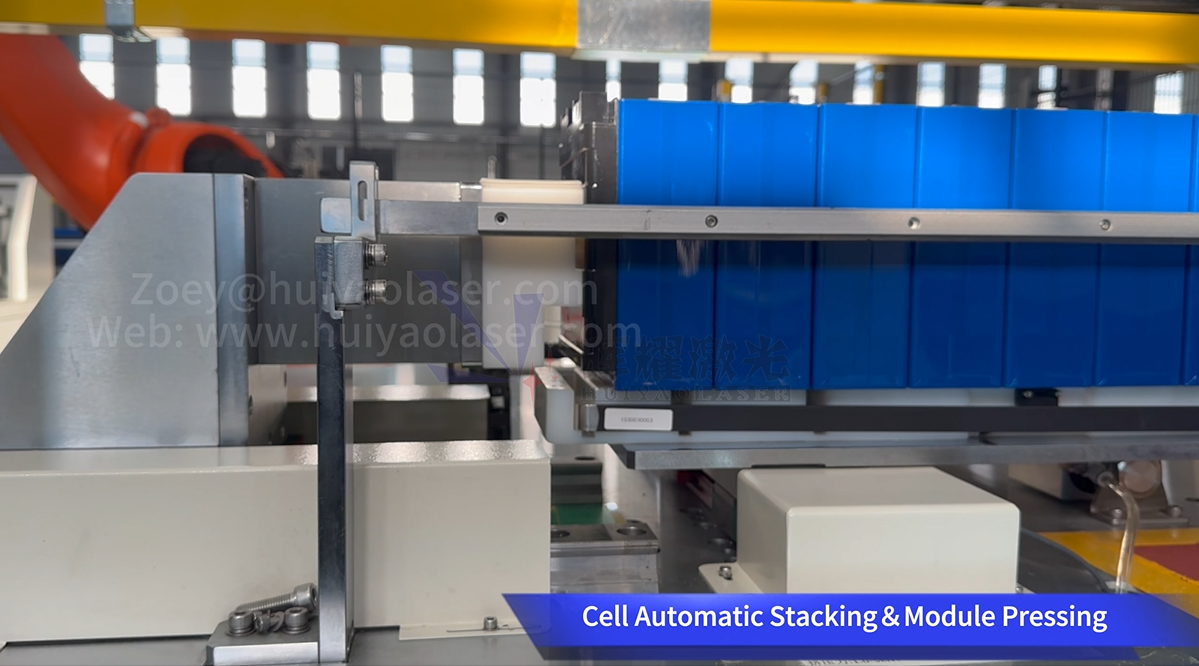

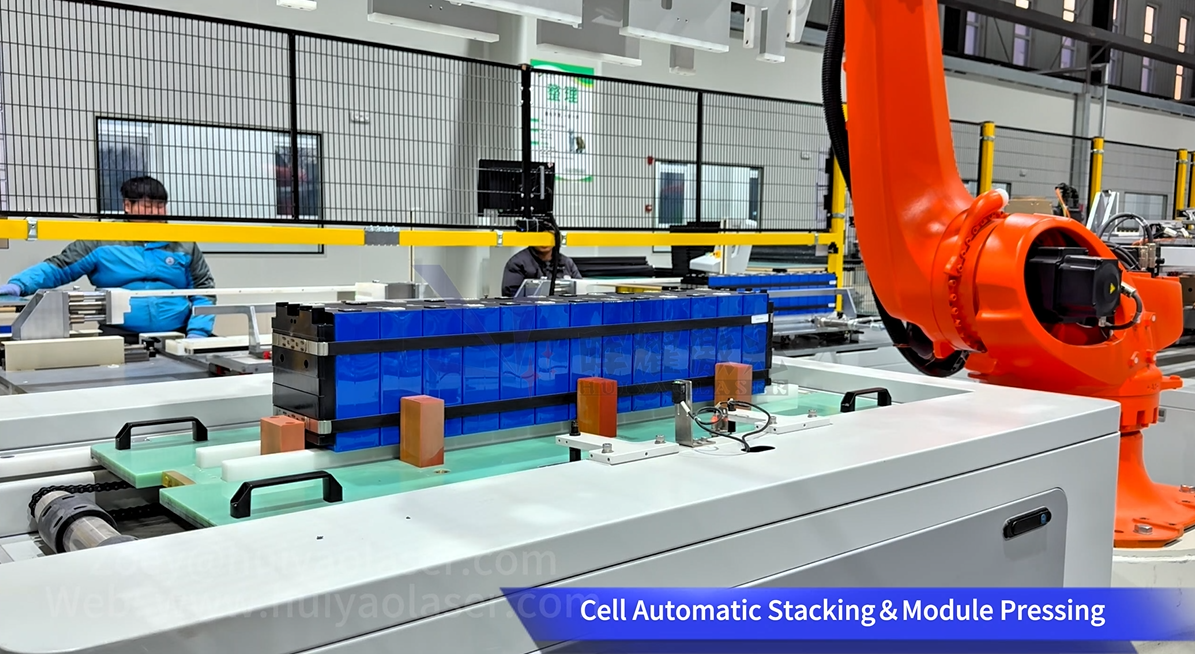

Module Pressing: After stacking, the robotic arm helps apply controlled pressure to the stacked modules. This process compresses the stack to ensure the cells stay in position and minimize movement during further processing. Module pressing also helps to remove any air gaps that could affect battery performance.
Features of Robotic Arm Module Stacking and Pressing
Precision: Robotic arms provide consistent and accurate placement of battery cells, minimizing errors in stacking alignment.
Automation: These processes are automated, reducing manual labor and enhancing production speed.
Adjustable Pressure: The pressing function allows for precise control over the amount of pressure applied, ensuring optimal cell compression without damage.
Flexibility: Robotic systems can be programmed for different types of battery modules, offering flexibility in the production line.
Advantages of Robotic Arm Module Stacking and Pressing
Increased Efficiency: Automation of stacking and pressing tasks speeds up the overall assembly process, leading to higher throughput.
Reduced Human Error: With robotics, the risk of misalignment or improper pressing is significantly reduced.
Enhanced Safety: Robots handle hazardous or heavy components, reducing the risk of worker injury.
Higher Precision: Robots can achieve higher levels of accuracy than human workers, ensuring consistent product quality.
Cost Savings: Although the initial investment may be high, the long-term reduction in labor costs and increase in production efficiency can lead to cost savings.
Factors to Consider When Choosing Robotic Arm Module Stacking and Pressing
Production Volume: For high-volume production, robotic arms are essential to meet the demand for speed and accuracy.
Space Constraints: The robotic arm system should be compact enough to fit within the existing assembly line layout.
Cost of Investment: The initial cost of robotic systems can be significant, so companies must evaluate whether the return on investment justifies the expense.
Maintenance Requirements: Robotic systems require regular maintenance to ensure long-term functionality and minimize downtime.
Price of Robotic Arm Module Stacking and Pressing
The price of robotic arm systems for stacking and pressing depends on several factors, including the level of automation, the complexity of the robotic system, and customization requirements. However, the high initial investment is often offset by increased production speed, reduced labor costs, and enhanced product quality.
Robotic arm module stacking and pressing are key processes in the prismatic battery module assembly line, providing precision, speed, and cost-effectiveness. With increasing demand for high-quality, efficiently produced battery modules, these systems represent a critical investment in modern battery manufacturing.
The Supplier of Battery Module Stacking＆Pressing Workstation

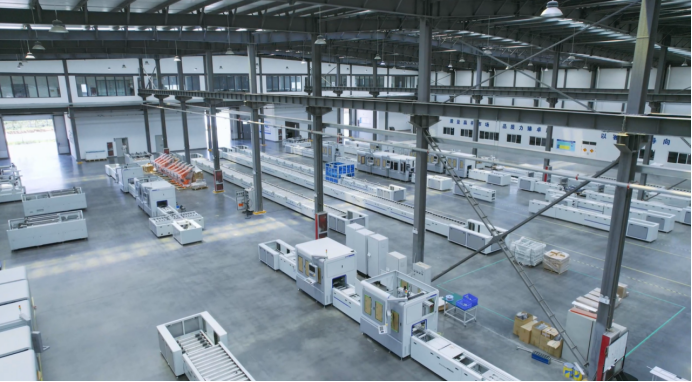

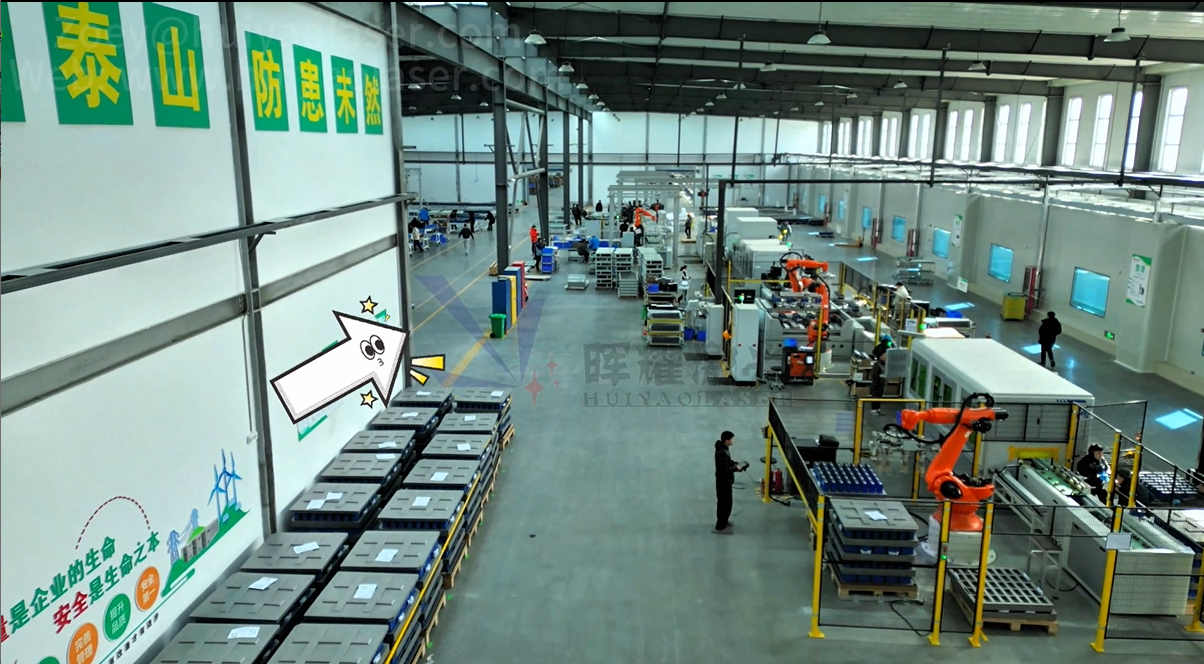

Huiyao Laser Technology (Luoyang) Co., Ltd. focusing on the research and development, manufacturing and sales of equipment for the new energy industry. Huiyao Laser provides comprehensive high-performance laser systems designed for the automotive, electronics, medical equipment, aerospace and other industries and committed to providing customers with comprehensive laser welding equipment, battery cell assembly line equipment, module PACK automatic line equipment, battery structural parts automation equipment and other high-end intelligent equipment. It can tailor the most suitable production line solutions according to the different production needs of customer companies.
