How to Assemble a Prismatic Battery PACK for ESS? Cell Polarity Detection & Flip

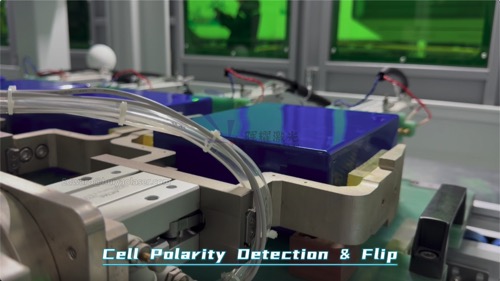

The assembly of prismatic battery packs for Energy Storage Systems (ESS) is a complex yet crucial process that demands precision at every step to ensure safety, reliability, and efficiency. Among the critical steps involved, cell polarity detection and flipping stand out as essential operations to maintain the functionality and integrity of the battery pack. This article explores the importance, process, and equipment involved in these operations.

The Importance of Cell Polarity Detection

Battery cells have positive and negative terminals, and their proper alignment is critical for the assembly of a battery module or pack. Incorrect polarity during assembly can lead to severe consequences, including:

1. Electrical Failures: Misaligned polarity can disrupt the flow of electricity, rendering the module inoperable.

2. Safety Hazards: Reversed polarity can cause short circuits, overheating, or even catastrophic failures like thermal runaway.

3. Reduced Efficiency: Proper polarity alignment ensures optimal electrical performance and battery efficiency.

To avoid these issues, precise cell polarity detection is an essential step before integrating the cells into the module.

How Cell Polarity Detection Works

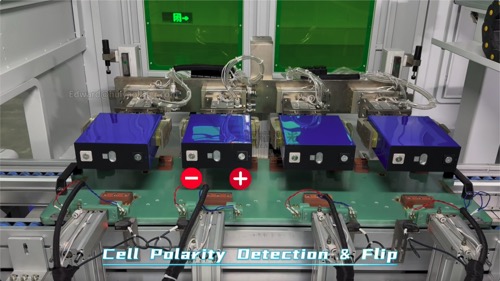

 Cell polarity detection is typically an automated process performed using specialized equipment designed to identify the positive and negative terminals of the cells. Below is an outline of the process:

1. Visual or Sensor-Based Detection:

• Visual Markings: Some battery cells have clear markings (+ and -) to indicate polarity. However, relying solely on these markings can be error-prone in a high-speed production environment.

• Sensor-Based Detection: Advanced assembly lines use sensors to detect the polarity based on electrical properties, such as voltage readings or magnetic field orientation.

2. Data Logging: The detected polarity data is logged and cross-checked with the design specifications to ensure alignment with the required configuration (e.g., 1P13S).

3. Error Handling: If a cell with incorrect polarity is detected, the system triggers an alarm or ejects the cell automatically to prevent its inclusion in the module.

The Importance of Cell Flipping

 Once the polarity is identified, some cells may require flipping to achieve the correct orientation for assembly. This step ensures that the positive and negative terminals of adjacent cells align as required by the series or parallel configuration.

For example:

• In a series connection, the positive terminal of one cell must align with the negative terminal of the next cell.

• In a parallel connection, cells with the same polarity are grouped together.

Improper orientation can lead to electrical mismatches, increased resistance, and reduced battery performance.

The Cell Flipping Process

 The flipping process is automated in modern battery assembly lines to ensure precision and efficiency. The steps typically include:

1. Automated Cell Handling:

• Cells are fed into the flipping system via conveyor belts or robotic arms.

• The system grips the cell securely to prevent damage during the flipping operation.

2. Flipping Mechanism:

• Rotational Axis: The cell is flipped 180 degrees along a predefined axis.

• Non-Contact Methods: Some advanced systems use magnetic or vacuum-based flipping to minimize physical contact with the cell.

3. Re-Verification:

• After flipping, the system re-checks the cell’s polarity to ensure it meets the required orientation.

4. Placement for Assembly:

• Flipped cells are placed into the module assembly line, ready for integration with busbars or interconnects.

Equipment for Polarity Detection and Flipping

 Modern assembly lines use specialized equipment to perform polarity detection and flipping efficiently. Key features of these systems include:

1. High Precision Sensors: Ensure accurate detection of cell polarity with minimal error.

2. Automated Error Handling: Systems can eject or flag cells with incorrect polarity, ensuring only properly aligned cells proceed to the next stage.

3. Customizable Configurations: Equipment can be programmed to accommodate various cell sizes, shapes, and configurations.

4. High-Speed Operations: Advanced machines can process hundreds of cells per hour, supporting high production volumes.

5. Integrated Quality Control: Includes re-verification of flipped cells to maintain assembly accuracy.

Challenges in Cell Polarity Detection and Flipping

 Despite advancements in technology, some challenges persist in these operations:

1. Handling Variability: Different battery manufacturers produce cells with varying dimensions, materials, and markings, which can complicate detection and flipping processes.

2. Avoiding Cell Damage: Improper handling during flipping can damage the cell casing or terminals, leading to performance issues or safety risks.

3. Integration with Other Processes: Ensuring seamless integration of polarity detection and flipping with other assembly steps, such as OCV (Open Circuit Voltage) testing and stacking, can be complex.

Benefits of Proper Polarity Detection and Flipping

 Implementing efficient and reliable cell polarity detection and flipping processes provides several advantages:

1. Enhanced Safety: Properly aligned cells reduce the risk of short circuits and other safety hazards.

2. Improved Performance: Ensures optimal electrical flow and efficiency within the battery pack.

3. Reduced Error Rates: Automation minimizes the chances of human error during assembly.

4. Increased Production Efficiency: High-speed equipment allows manufacturers to meet production targets without compromising quality.

Case Study: Huiyao Laser Technology’s Automated Solutions

 Huiyao Laser Technology (Luoyang) Co., Ltd. has developed state-of-the-art automated systems for cell polarity detection and flipping. Their equipment features:

• Advanced Sensor Technology for accurate polarity detection.

• High-Speed Flipping Mechanisms designed to handle various cell sizes without causing damage.

• Integrated Quality Control to ensure alignment with module specifications.

By integrating Huiyao Laser’s solutions, manufacturers can achieve greater precision, efficiency, and safety in their assembly processes.

Conclusion

 Cell polarity detection and flipping are integral steps in assembling prismatic battery packs for ESS applications. These processes ensure the safe and efficient operation of the battery pack, contributing to its overall reliability and performance. With advancements in automation and equipment, manufacturers can streamline these operations, minimize errors, and enhance production efficiency.

By partnering with companies like Huiyao Laser Technology, manufacturers can access cutting-edge solutions tailored to their specific needs, ensuring their battery assembly lines remain at the forefront of innovation.
