What is the Post-Welding Inspection and Cleaning Workstation?
The post-welding inspection and cleaning workstation is a manual operation station in the prismatic battery module pack assembly line. It focuses on inspecting the quality of welds and cleaning up any welding residues left after the welding process. Workers manually check for defects in the welds and use an industrial vacuum cleaner to remove any residual material.
Features of the Post-Welding Inspection and Cleaning Workstation
Manual Inspection: Workers visually inspect the welds for defects such as cracks, incomplete fusion, or weak connections.
Industrial Vacuum Cleaner: Used to collect welding debris, ensuring the components are clean and free of any potentially harmful residues.
Ergonomic Setup: Designed to ensure that workers can easily perform detailed inspections and cleaning tasks comfortably.
Personal Protective Equipment (PPE): Workers are equipped with gloves, goggles, and dust masks to protect against welding fumes and sharp debris.
Improved Quality Assurance: Manual inspection ensures that no defects go unnoticed, improving the overall quality of the battery modules.
Cost-Effective: Manual operation is more affordable than automated systems while still providing reliable inspection and cleaning.
Enhanced Safety: By using an industrial vacuum to clear welding residue, the workstation prevents contamination and reduces the risk of potential damage during later stages.
Flexible and Adaptable: The workstation can be easily adjusted for different product types and varying quality standards, ensuring flexibility in production.
Applications of the Post-Welding Inspection and Cleaning Workstation
Battery Module Assembly: Used in the production of prismatic battery modules for electric vehicles (EVs) and energy storage systems (ESS)1.
Customized Production Lines: Suitable for small-batch or specialized battery manufacturing processes.
Quality Assurance: Integrated into production lines to ensure compliance with industry standards and customer requirements.
Functions of the Post-Welding Inspection and Cleaning Workstation

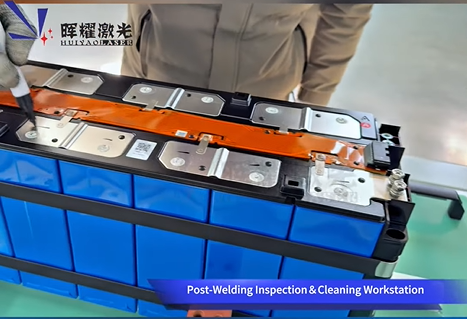

Weld Inspection: Workers visually and manually inspect welding joints to ensure they meet quality standards.

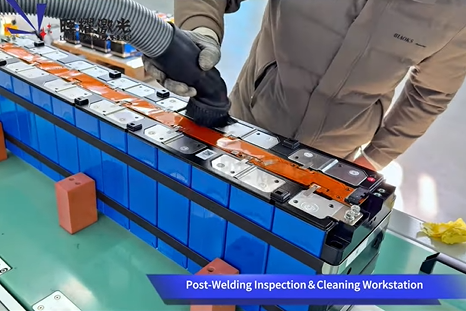

Residue Removal: Industrial vacuum cleaners are used to clean welding debris, preventing contamination and ensuring a clean workspace.
Documentation: Workers record inspection results for quality control and traceability purposes.
Items in the Post-Welding Inspection and Cleaning Workstation
Industrial Vacuum Cleaner: For cleaning up welding debris.
Inspection Tools: Magnifying lenses, light sources, and other tools to closely inspect the weld quality.
Inspection Checklists: To standardize the inspection process and ensure all critical areas are checked.
Protective Gear: Including gloves, masks, and goggles to ensure worker safety.
Cleaning Brushes: For removing debris in areas where the vacuum cannot reach.
