The Advantages of Using Robotic Arms in Battery Module PACK Assembly: Stacking and Pressing Battery Cells

With the rapid development of electric vehicles (EVs) and energy storage systems, battery module PACK assembly has become a critical stage in battery manufacturing. One of the key processes in this assembly is the stacking and pressing of battery cells, which directly impacts the performance, consistency, and reliability of battery modules. Traditionally, this process was performed manually, leading to inconsistencies, inefficiencies, and higher defect rates. However, the adoption of robotic arms in battery module assembly lines has revolutionized this process, bringing significant advantages in terms of precision, efficiency, and scalability.

1. Enhanced Precision and Consistency

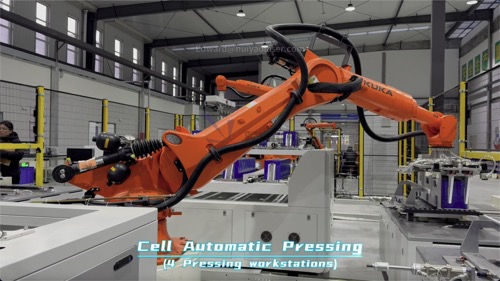

One of the primary advantages of using robotic arms for stacking and pressing battery cells is the unmatched precision they offer. Lithium-ion battery cells are highly sensitive components that require accurate alignment and uniform pressure distribution to ensure proper performance and longevity.

• Consistent Alignment: Robotic arms, equipped with advanced vision systems and AI-powered algorithms, can detect and precisely place each battery cell with micrometer-level accuracy, reducing misalignment issues.

• Uniform Pressure Application: During the pressing stage, robots can apply consistent force across all battery cells, preventing over-compression or uneven pressure that may lead to internal damage or performance degradation.

• Error Reduction: Unlike manual operations, robotic arms do not suffer from fatigue, ensuring uniform quality across thousands of modules without human-induced errors.

2. Increased Production Efficiency and Throughput

Robotic arms significantly enhance the speed and efficiency of battery module assembly, reducing cycle times and boosting overall production capacity.

• High-Speed Stacking: Robotic systems can perform stacking operations much faster than human workers, handling multiple cells in a fraction of the time.

• 24/7 Operation: Unlike human labor, robotic systems can operate continuously without breaks, maximizing production uptime and meeting the growing demand for battery packs.

• Automated Cell Feeding: Advanced robotic integration allows seamless coordination with automated cell feeding systems, ensuring a non-stop and highly efficient assembly process.

3. Improved Safety and Reduced Labor Dependency

Battery module assembly poses several safety risks, especially in high-voltage environments. Robotic arms help minimize human exposure to these hazards while reducing dependency on manual labor.

• Minimized Human Contact: Robots handle battery cells directly, reducing worker exposure to hazardous materials such as lithium electrolytes.

• Elimination of Repetitive Strain Injuries: The stacking and pressing process involves highly repetitive movements, which can lead to musculoskeletal disorders in human workers. Robotic automation removes this risk.

• Reduced Need for Skilled Labor: As the demand for battery packs grows, skilled labor shortages become a challenge. Robotic automation reduces reliance on manual expertise while ensuring consistent process execution.

4. Scalability and Flexibility for Different Battery Designs

With the diverse range of battery designs used in EVs and energy storage systems, robotic systems provide the flexibility needed to adapt to different module configurations.

• Adaptable to Various Cell Types: Robotic arms can be programmed to handle pouch cells, cylindrical cells, or prismatic cells, making them ideal for different battery module designs.

• Quick Reconfiguration: Unlike traditional manual assembly lines that require extensive retraining, robotic systems can be reprogrammed quickly to accommodate design changes, enabling faster adaptation to evolving market demands.

• Modular Automation: Battery manufacturers can scale production efficiently by adding more robotic arms without disrupting existing assembly lines.

5. Integration with Smart Manufacturing and Industry 4.0

Robotic arms can be integrated with AI-driven process control systems, enabling real-time monitoring, predictive maintenance, and data analytics.

• Real-Time Quality Inspection: Vision-equipped robotic systems can inspect each stacked battery cell in real-time, identifying defects before they affect the final module.

• Predictive Maintenance: Robots can self-monitor their performance and notify operators of potential maintenance needs, reducing unexpected downtimes.

• Data-Driven Optimization: AI algorithms can analyze production data to continuously optimize stacking and pressing parameters, improving overall manufacturing efficiency.

6. Cost Reduction and Long-Term ROI

Although the initial investment in robotic arms can be high, the long-term return on investment (ROI) makes automation a cost-effective solution for battery manufacturers.

• Reduction in Scrap Rates: Precise stacking and pressing minimize the number of defective modules, reducing material waste and associated costs.

• Lower Labor Costs: Automation decreases the need for manual labor, reducing wages, training expenses, and workforce turnover costs.

• Energy Savings: Robotic systems are optimized for efficiency, consuming less energy compared to fully manual operations over time.

Conclusion

The use of robotic arms for stacking and pressing battery cells in battery module PACK assembly lines brings unparalleled advantages in precision, efficiency, safety, and scalability. As demand for EV batteries continues to rise, robotic automation will play a crucial role in ensuring high-quality production while reducing costs and improving manufacturing flexibility.

Battery manufacturers looking to stay ahead in the industry must embrace robotic automation as a key enabler of smart, high-volume, and reliable battery production.
