As the demand for high-performance lithium-ion batteries continues to rise, manufacturing processes must achieve higher precision, efficiency, andreliability. One critical step in the production of pouch battery cells is the cutting of terminal tabs, which serve as the electrical connection points. To ensure accurate and high-quality tab cutting, Huiyao Laser employ Pouch Battery Cell Terminal Tab Cutting Machines, which are designed to provide precise, burr-free, and consistent cutting of metal tabs.

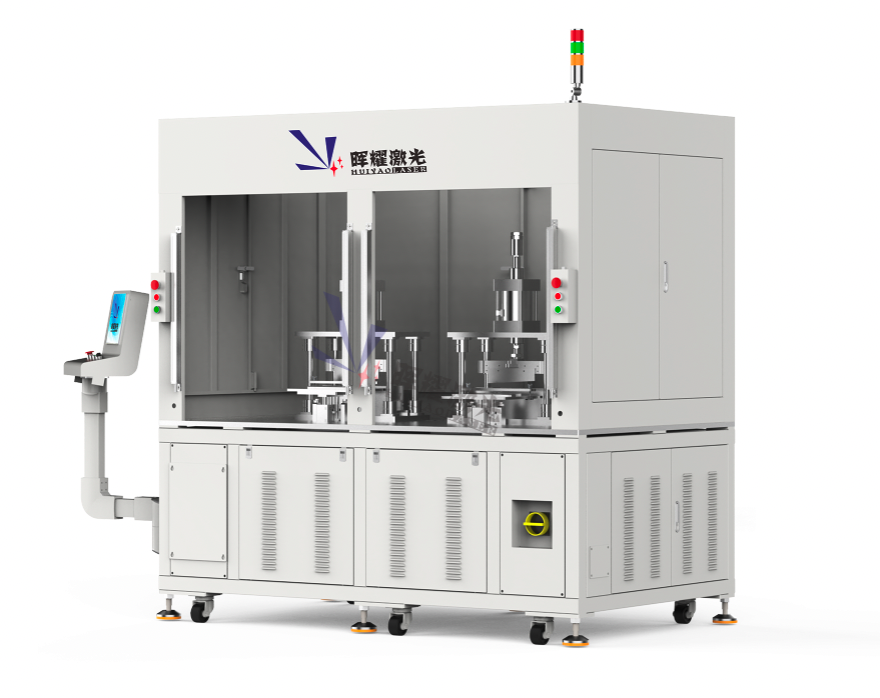

A Pouch Battery Cell Terminal Tab Cutting Machine is an industrial-grade piece of equipment specifically designed to cut and shape the terminal tabs of pouch battery cells with high accuracy and repeatability. Terminal tabs, which are typically composed of aluminum, copper, or nickel-plated materials, must be trimmed precisely to ensure optimal electrical conductivity and mechanical stability when integrated into battery modules and packs.
Without precise tab cutting, issues such as uneven welds, poor electrical connections, and material waste can arise, leading to potential safety risks and performance degradation. Thus, this machine plays a crucial role in ensuring the overall quality and reliability of pouch battery cells.
Working Principle of Pouch Battery Cell Terminal Tab Cutting Machine
Material Feeding: The battery cells or tab materials are either manually placed or automatically fed into the machine via a conveyor system.
Precision Positioning: Advanced optical sensors, mechanical guides, or vision systems ensure accurate alignment of the terminal tabs.
Cutting Operation: The cutting mechanism—whether a high-precision blade, punch die, or laser system—executes the cut according to the predefined tab dimensions.
Quality Inspection (Optional): Some machines integrate inline vision inspection systems to detect burrs, misalignment, or improper cuts and automatically reject defective parts.
Collection and Handling: The cut tabs are either removed from the machine or passed on to the next stage of the battery assembly process.
Functions of Pouch Battery Cell Terminal Tab Cutting Machine
Precision Cutting: Ensures tabs meet exact dimensional tolerances, reducing material waste.
Deburring and Edge Smoothing: Some models incorporate secondary processing to remove sharp edges and enhance safety and connectivity.
Customizable Cutting Patterns: Allows for different tab shapes and sizes based on specific battery module designs.
High-Speed Processing: Significantly increases production efficiency by automating the cutting process.
Seamless Integration: Can be integrated with battery module assembly lines, improving workflow continuity.
Features of Pouch Battery Cell Terminal Tab Cutting Machine
High Precision and Repeatability: Utilizes servo motors, linear guides, and advanced control systems to achieve micron-level accuracy.
Automation and Intelligent Control: Can be operated via PLC or CNC systems, allowing for programmable settings and real-time monitoring.
Multi-Material Compatibility: Supports copper (Cu), aluminum (Al), and nickel (Ni) tabs, catering to diverse battery cell designs.
Low Material Waste: Optimized cutting paths and efficient material utilization help reduce production costs.
Integrated Safety Features: Includes protective covers, emergency stop buttons, and real-time fault detection to enhance workplace safety.
Minimal Maintenance Requirements: Uses high-durability cutting components to extend operational life and reduce downtime.
Advantages of Pouch Battery Cell Terminal Tab Cutting Machine
Enhanced Production Efficiency: Reduces manual labor and increases throughput, leading to higher production capacity.
Consistent Quality and Reliability: Minimizes variability in tab dimensions, ensuring uniform battery performance.
Reduced Defects and Rework: High-precision cutting minimizes material deformation and welding inconsistencies.
Cost Savings: Automation lowers operational costs by improving material usage and reducing labor dependency.
Scalability: Suitable for both small-scale prototyping and large-scale mass production, offering flexibility in battery manufacturing.
Factors to Consider When Choosing a Pouch Battery Cell Terminal Tab Cutting Machine
Cutting Precision and Accuracy: The machine should meet the required dimensional tolerances to avoid tab misalignment.
Material Compatibility: Ensure that the machine supports the specific tab materials used in production.
Production Speed and Throughput: Choose a machine with a cutting speed that matches your manufacturing demand.
Automation Level: Decide between manual, semi-automatic, or fully automated models based on your production scale.
Durability and Maintenance Requirements: Look for machines with robust components to minimize downtime and servicing costs.
Safety Features and Compliance: Ensure the machine meets industry safety standards to protect operators and prevent accidents.
Integration with Existing Production Lines: The machine should be compatible with other battery processing equipment, such as laser welding and cell stacking systems.
A Pouch Battery Cell Terminal Tab Cutting Machine is a critical piece of equipment in the lithium-ion battery manufacturing process. It ensures high-precision tabcutting, enhances efficiency, and improves product quality, making it indispensable for battery module and pack assembly.
By carefully selecting a machine based on precision, material compatibility, production speed, and automation level, manufacturers can achieve greater operational efficiency, cost-effectiveness, and product reliability, ensuring long-term success in the battery industry.
Supplier of Pouch Battery Cell Terminal Tab Cutting Machine

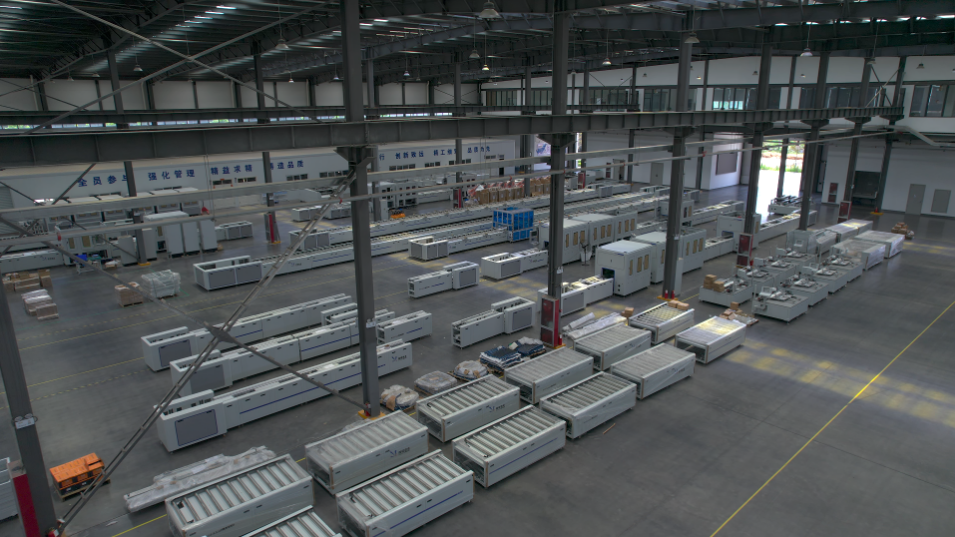

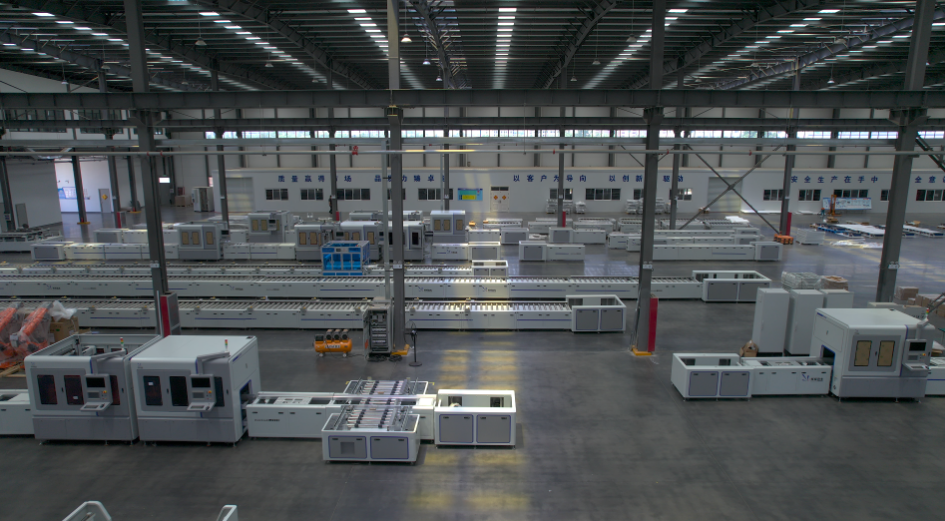

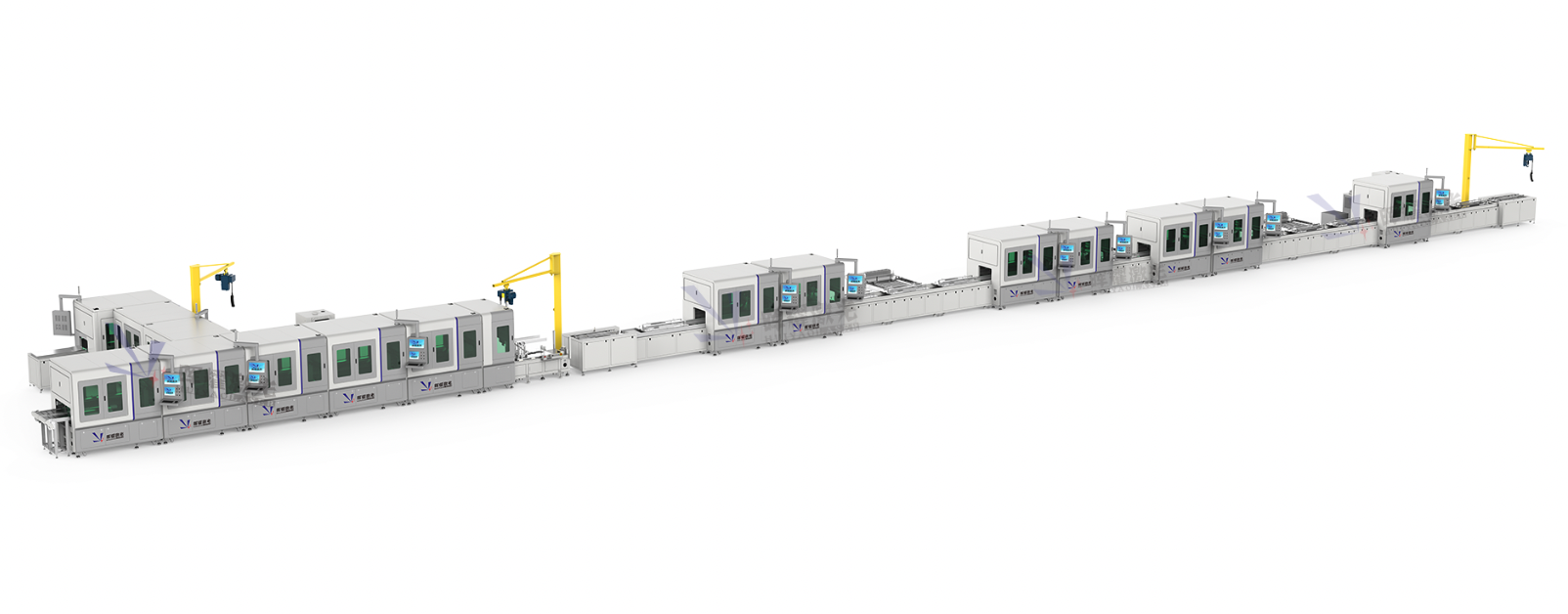

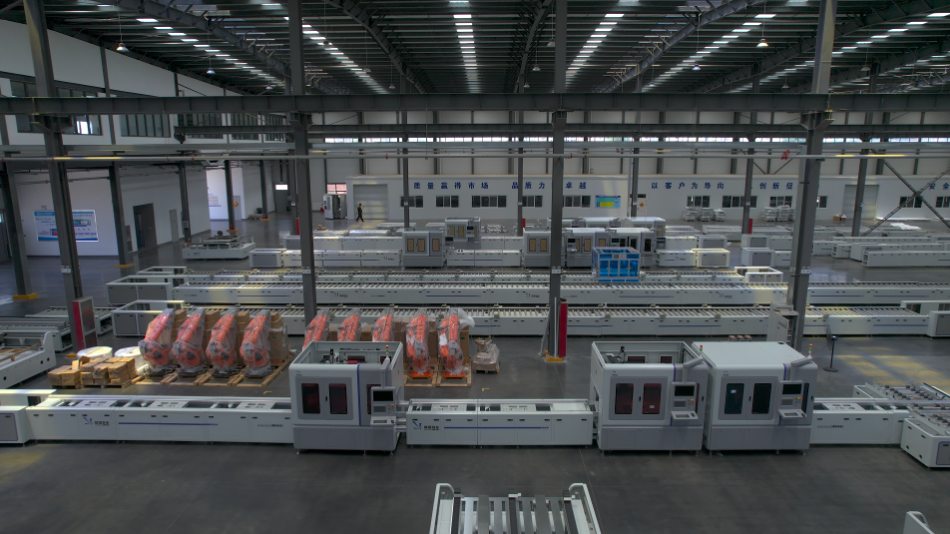

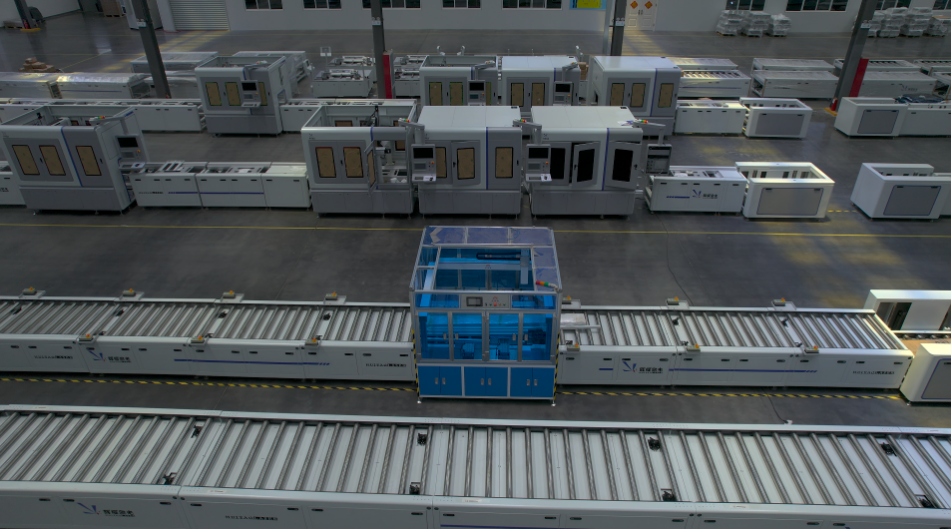

Huiyao Laser Technology (Luoyang) Co., Ltd. is a high-tech enterprise focusing on the research and development, manufacturing and sales of equipment for the new energy industry. Huiyao Laser provides comprehensive high-performance laser systems designed for the automotive, electronics, medical equipment, aerospace and other industries and committed to providing customers with comprehensive laser welding equipment, battery cell assembly line equipment, module PACK automatic line equipment, battery structural parts automation equipment and other high-end intelligent equipment. It can tailor the most suitable production line solutions according to the different production needs of customer companies.
