What is CTP Laser Welding?
CTP (Cell to Pack) technology is a breakthrough in lithium-ion battery design that eliminates the need for intermediate battery modules. Traditionally, battery cells are first assembled into modules, which are then combined to form a battery pack. In contrast, CTP technology bypasses the module stage, integrating individual battery cells directly into the pack structure. This design simplifies assembly, increases battery efficiency, and improves structural strength.
A critical step in CTP technology is laser welding, which ensures a reliable and precise connection between battery cells and the pack’s busbar system. The process uses a high-energy laser beam to create strong, conductive, and durable welds without introducing excessive heat that could damage sensitive battery components. With CTP laser welding, manufacturers can improve the efficiency, safety, and longevity of battery packs used in EVs and energy storage applications.
The Working Process of CTP Laser Welding

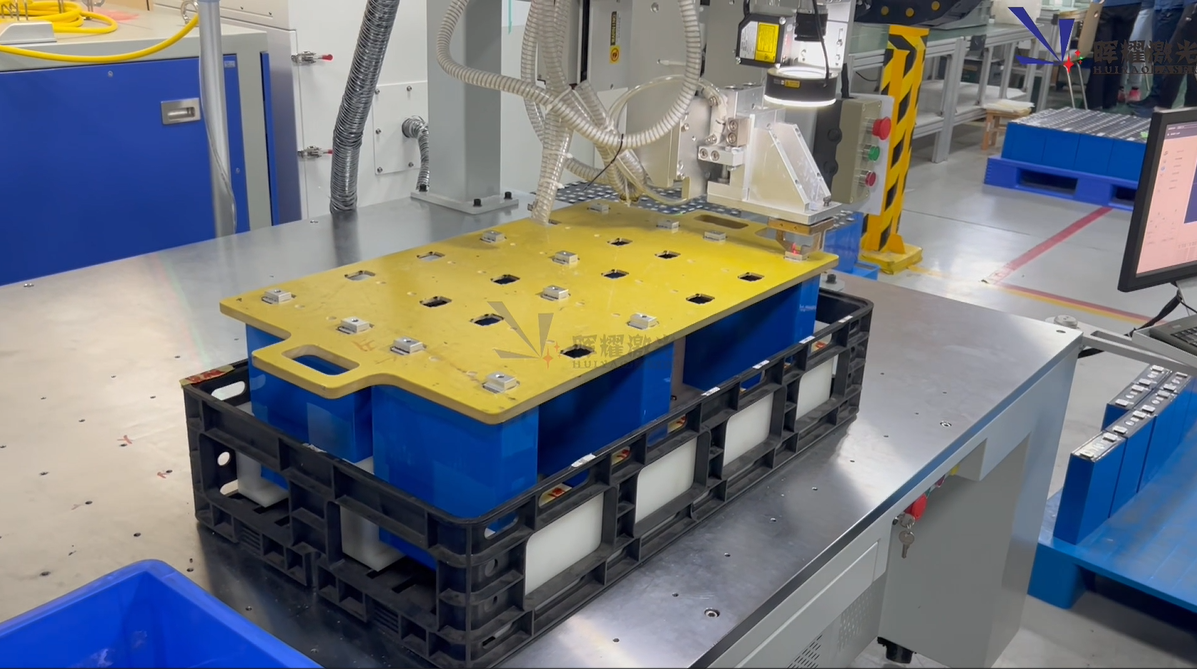

Cell Positioning and Alignment:
Busbar Preparation and Placement:

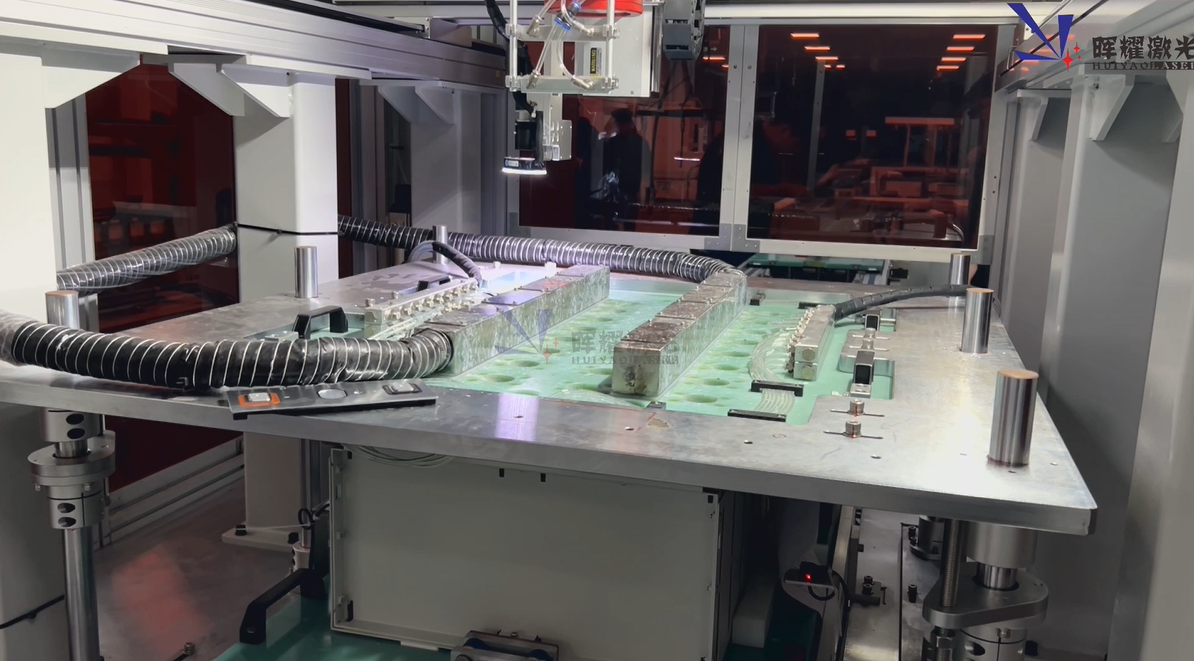

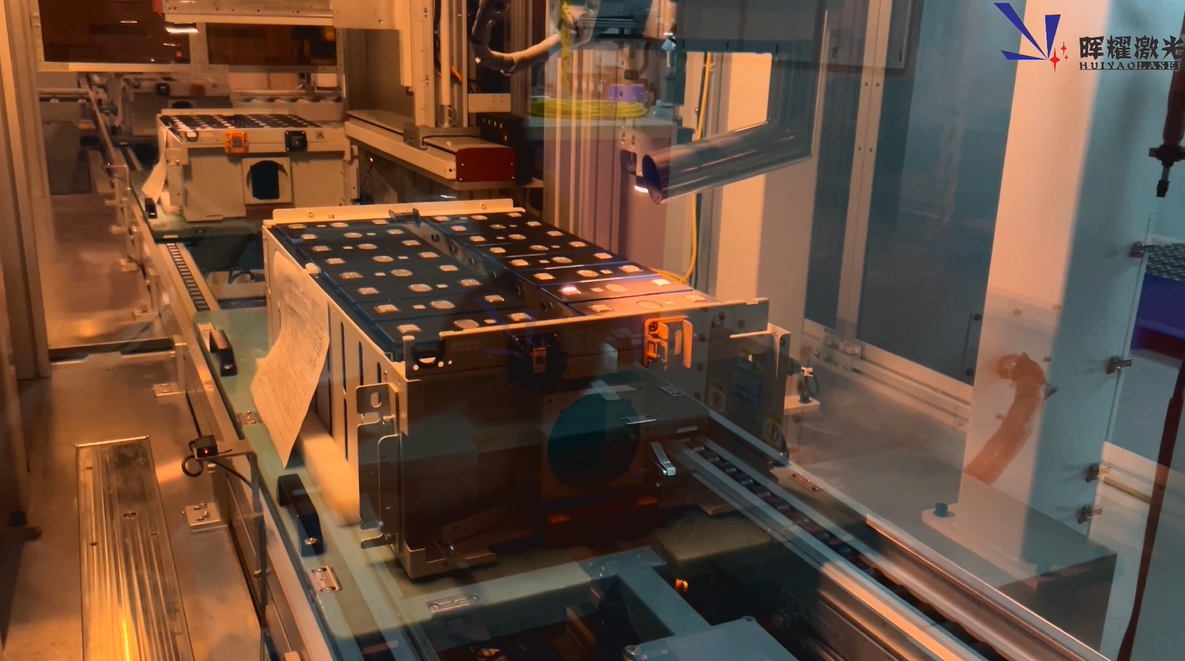

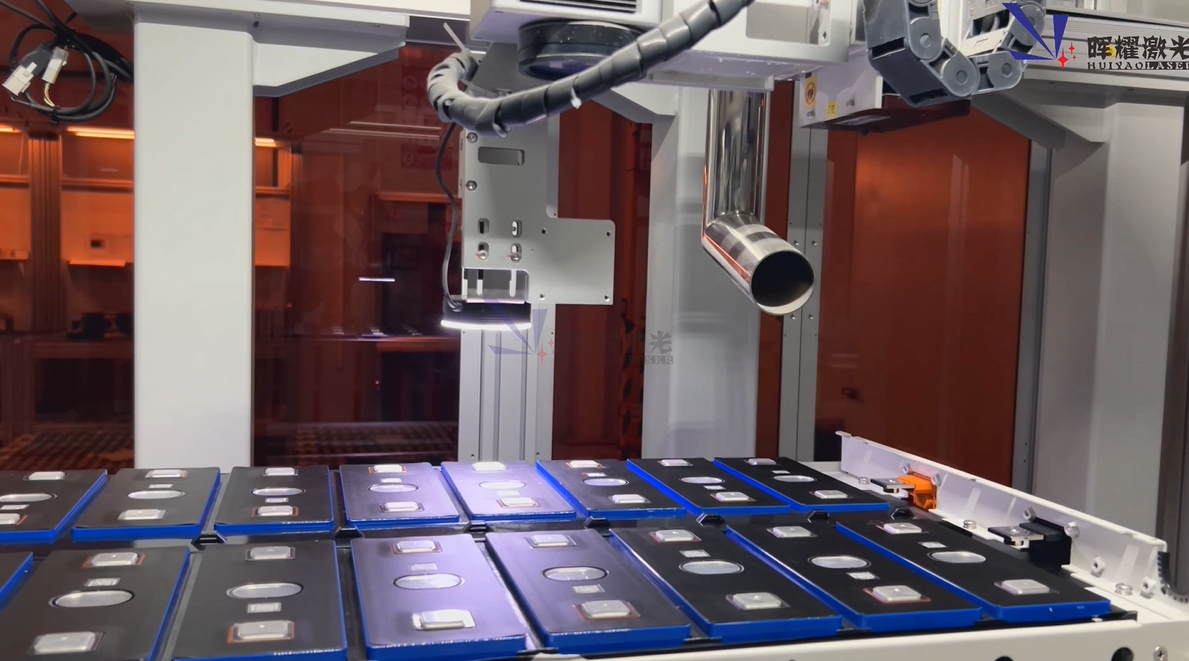

Laser Welding of Cell Terminals to Busbars:
A high-power laser beam is focused on the contact points, melting and fusing the materials together.
The process creates a strong, conductive bond with minimal thermal impact on the battery cells.
Quality Inspection and Weld Verification:
Advanced inspection techniques such as ultrasonic testing, X-ray scanning, and visual analysis ensure the welds meet strict quality standards.
Weld strength and conductivity are tested to prevent defects that could lead to performance issues.
Final Integration and Testing:
The welded battery pack is assembled with additional structural components, cooling systems, and a Battery Management System (BMS).
Full-system performance tests are conducted to validate thermal management, electrical output, and mechanical integrity.
Features of CTP Laser Welding
CTP laser welding is characterized by several key features that make it an essential process in modern battery manufacturing:
High Precision: Ensures uniform and consistent welding, reducing defects.
Strong Electrical and Mechanical Bonding: Creates durable connections with minimal resistance.
Low Heat Impact: Prevents damage to battery cells, preserving longevity and safety.
High-Speed Processing: Increases manufacturing efficiency and reduces production costs.
Material Versatility: Compatible with different metal combinations, including copper and aluminum.
Advantages of CTP Laser Welding
CTP laser welding offers multiple advantages over traditional welding techniques and conventional battery module-based designs:
Higher Energy Density – By eliminating module casings and internal supports, more battery cells can be packed into the same space, increasing overall capacity.
Reduced Manufacturing Costs – The simplified assembly process reduces material usage, labor requirements, and production time, lowering overall costs.
Enhanced Safety and Reliability – Laser-welded connections prevent weak points, ensuring better mechanical stability and reducing the risk of electrical failures.
Better Thermal Management – Efficient welding improves heat dissipation, reducing the likelihood of thermal runaway in high-performance applications.
Lightweight and Compact Structure – The elimination of modules results in a lighter and more compact battery pack, improving vehicle efficiency and range.
Difference Between Battery Module, Battery Pack, and CTP
Battery Module:
A module consists of multiple battery cells enclosed in a separate housing, with internal wiring and protective features. Modules are then assembled into a pack.
Battery Pack:
A complete battery system that includes multiple modules, a Battery Management System (BMS), cooling components, and structural support for integration into EVs or ESS.
CTP Battery Pack:
Eliminates the module stage, integrating individual battery cells directly into the pack. This improves energy density, simplifies assembly, and enhances system efficiency.
Application of CTP Laser Welding
CTP laser welding is widely used in various industries that require high-performance, reliable, and efficient battery systems:
Electric Vehicles (EVs):
Extends driving range by increasing battery capacity.
Reduces overall weight, improving vehicle efficiency.
Enhances battery safety with better thermal management.
Energy Storage Systems (ESS):
Enables higher energy storage capacity for renewable energy solutions.
Improves efficiency and reliability in grid-scale storage applications.
Reduces manufacturing and maintenance costs for large-scale deployments.
Renewable Energy Solutions:
Conclusion
CTP laser welding is a game-changer in battery manufacturing, offering higher efficiency, cost savings, and improved performance over traditional module-based designs. By eliminating intermediate modules, enhancing energy density， and ensuring strong，reliable electrical connections, this technology is shaping the future of EVs, energy storage, and renewable power solutions.
As the demand for high-performance battery systems continues to grow, CTP laser welding will remain a critical process for achieving next-generation energy solutions.
