What is EOL Testing in Prismatic Battery Module PACK Assembly Line?

EOL (End-of-Line) testing is a critical phase in the manufacturing process of prismatic battery module PACKs. This testing ensures that the final product meets strict safety, performance, and quality standards before being delivered to customers or integrated into applications such as electric vehicles (EVs) and energy storage systems (ESS). As the demand for reliable and high-performing battery modules grows, EOL testing has become a cornerstone of the production line to guarantee product excellence and customer satisfaction.

Understanding EOL Testing

EOL testing is the final quality control step conducted after all assembly processes are complete. It involves a series of automated and manual tests designed to validate the functionality, safety, and compliance of the battery module. The goal is to detect any defects, inconsistencies, or malfunctions that could compromise the battery’s performance or safety in real-world applications.

Key Parameters Assessed During EOL Testing

1. Voltage and Current Testing

EOL systems measure the voltage and current output of the battery to ensure they meet design specifications. Any deviation could indicate an internal defect or improper assembly.

2. Insulation Resistance Testing

This test checks for electrical leaks or faults that could compromise safety. Insulation resistance is a critical parameter in preventing short circuits and maintaining safe operation.

3. Temperature and Thermal Behavior

Testing involves monitoring how the battery reacts to different thermal conditions. This ensures the module can operate safely within its intended temperature range without overheating or degrading.

4. Battery Capacity Validation

The energy storage capacity of the module is tested to confirm it meets design requirements. This is essential for ensuring the battery performs optimally in applications such as EVs or ESS.

5. Battery Management System (BMS) Testing

The BMS is responsible for monitoring and regulating the battery’s performance. EOL testing ensures that the BMS is functioning correctly and communicating accurate data about the battery’s state of charge, temperature, and overall health.

6. Leak Testing

This involves checking for any gas or liquid leaks that could compromise the safety and longevity of the battery module. Leak testing is crucial, especially in liquid-cooled modules used in EVs.

The EOL Testing Process

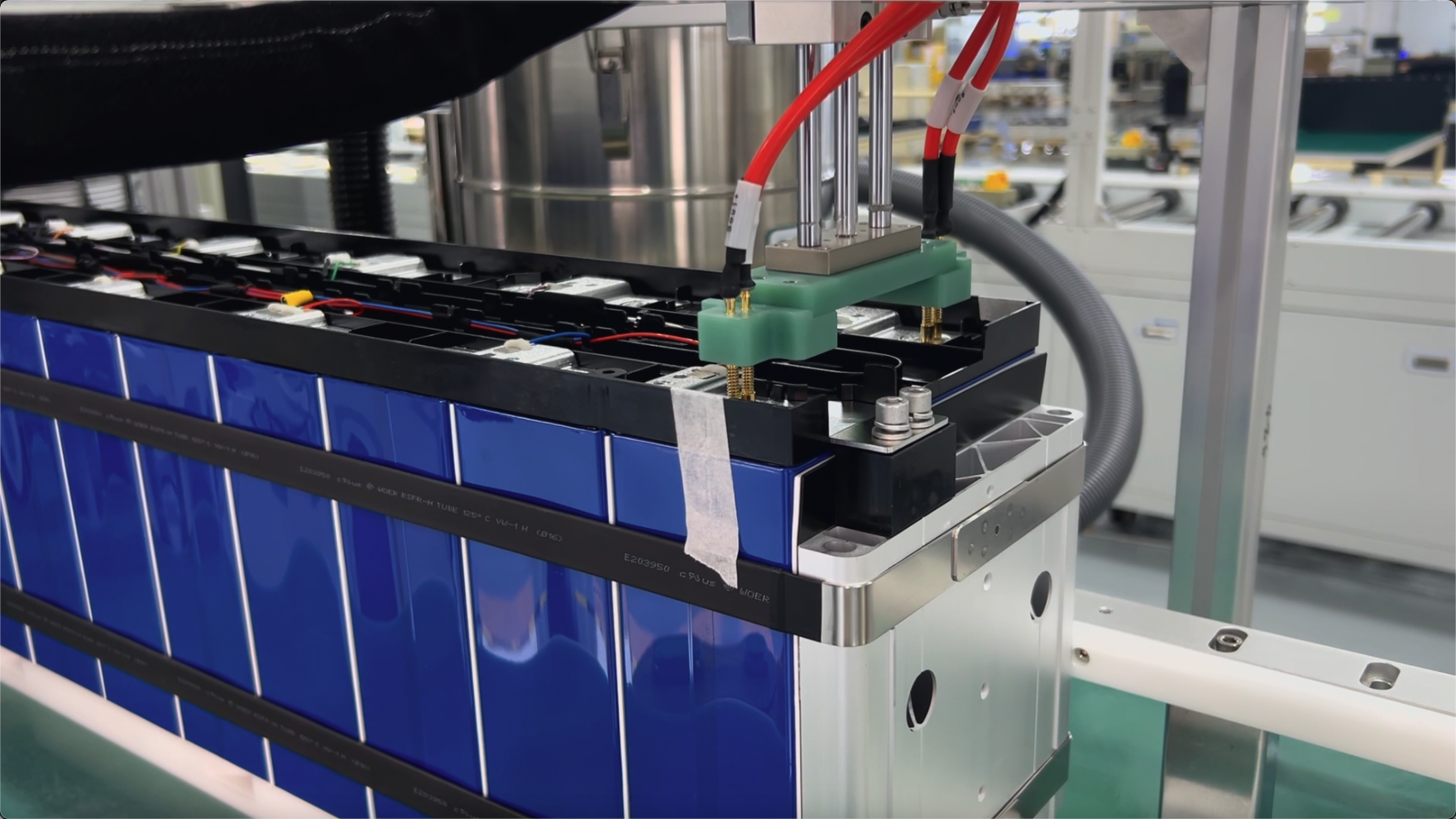

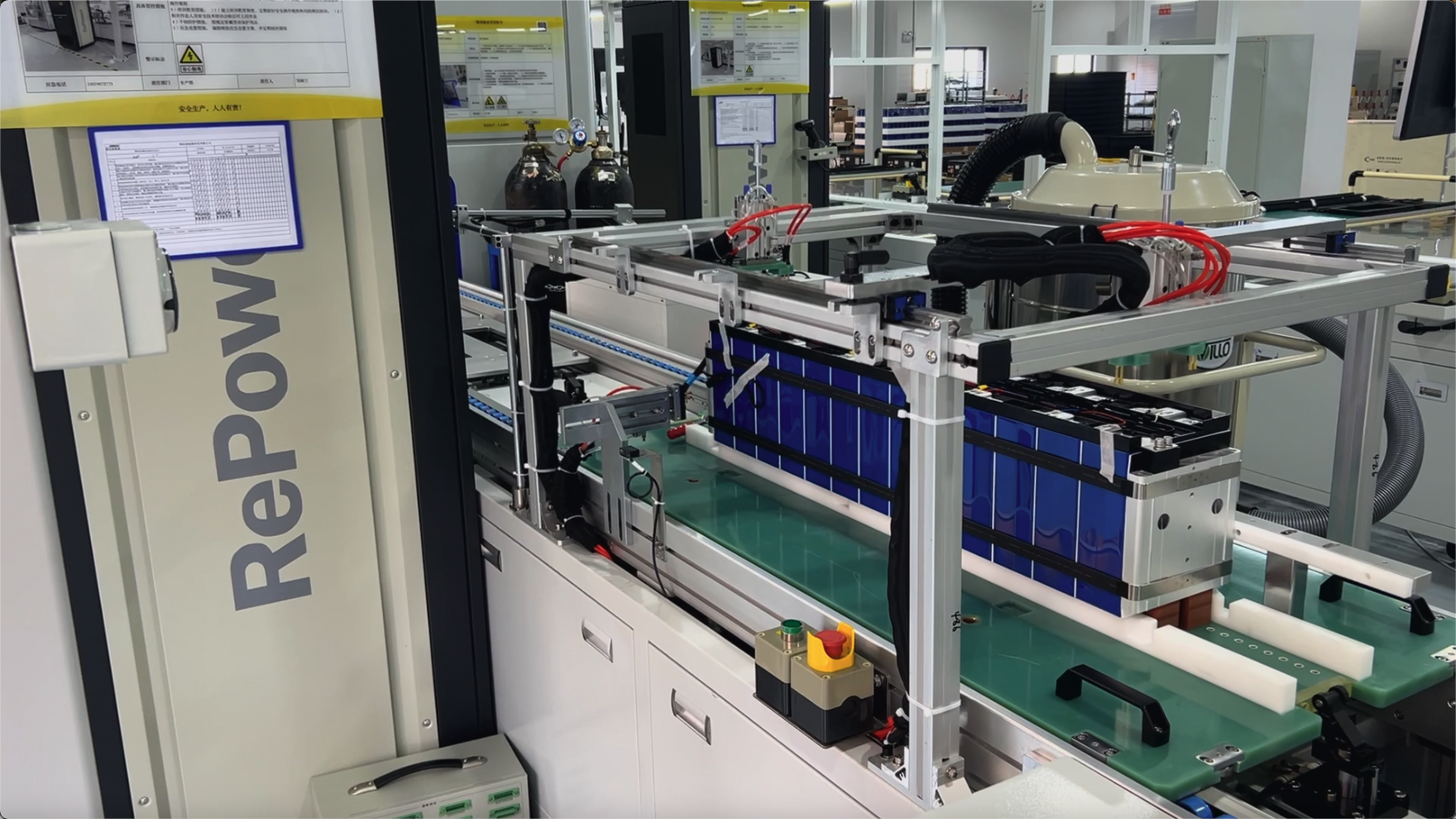

1. Placement on the Testing Station

The fully assembled prismatic battery module PACK is placed on a dedicated testing station. Advanced automated systems ensure proper alignment and connectivity.

2. Automated Testing Sequence

The testing system runs a pre-programmed sequence of tests. High-precision equipment measures various parameters and records data in real-time.

3. Data Analysis

The collected data is analyzed using software tools to identify any deviations from the required specifications.

4. Pass/Fail Criteria

Modules that meet all the criteria are approved for shipment, while defective units are flagged for rework or rejection.

Benefits of EOL Testing

1. Enhanced Safety

By identifying and rectifying potential faults, EOL testing minimizes the risk of battery failures or safety incidents in the field.

2. Improved Reliability

Only modules that pass rigorous tests are sent to customers, ensuring consistent performance and reliability.

3. Cost Efficiency

Detecting and addressing defects during production is far more cost-effective than dealing with field failures or recalls.

4. Regulatory Compliance

EOL testing ensures that the battery modules meet international standards and customer-specific requirements.

Equipment Used in EOL Testing

1. Automated Test Benches

These are integrated with software systems that perform precise measurements of voltage, current, resistance, and other parameters.

2. Thermal Imaging Devices

Used to monitor and record temperature changes in the module during operation.

3. High-Voltage Testers

These devices test insulation resistance and dielectric strength to ensure the module’s safety.

4. Simulation Software

This software mimics real-world operating conditions to test the battery’s performance under various scenarios.

Role of EOL Testing in Prismatic Battery Module PACK Assembly

EOL testing is a critical quality assurance step that helps manufacturers meet the high expectations of industries like EV and ESS. It ensures that the final product is safe, reliable, and fully functional, reducing the risk of field failures and enhancing customer confidence.

Introducing Huiyao Laser Technology (Luoyang) Co., Ltd.

Huiyao Laser Technology (Luoyang) Co., Ltd. is a leader in advanced manufacturing solutions, specializing in precision laser technologies for battery module assembly. With a strong focus on innovation and quality, Huiyao provides state-of-the-art equipment designed to optimize production efficiency and ensure product reliability.

Their expertise extends to EOL testing integration, offering comprehensive systems that seamlessly incorporate testing protocols into automated production lines. Huiyao’s solutions are trusted by global manufacturers in EV, ESS, and other industries requiring precision and reliability.

Huiyao’s commitment to customer success is reflected in their tailored solutions, cutting-edge technology, and exceptional support services. Whether you are looking to enhance your production line or improve quality assurance, Huiyao Laser Technology is your trusted partner for achieving manufacturing excellence.
