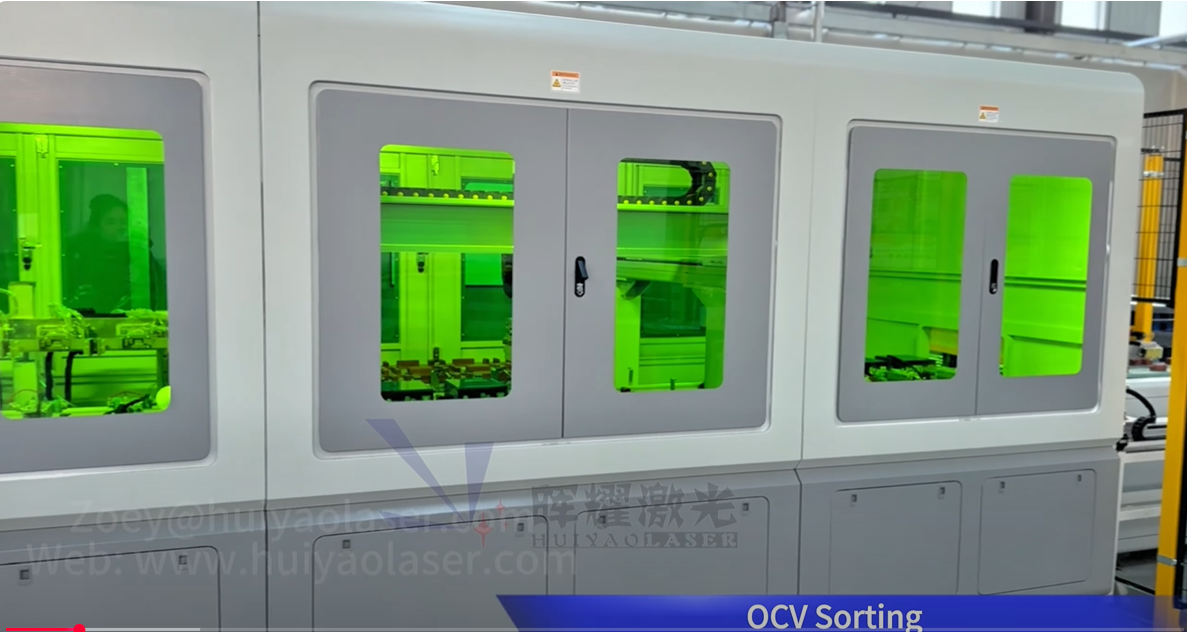

The OCV (Open Circuit Voltage) Sorting Workstation is a critical step in the prismatic battery module production line. It is responsible for testing and sorting battery cells based on their open circuit voltage, which is an indication of the cell's charge level and health. Cells are sorted into different groups based on their OCV values to ensure uniformity and optimal performance when integrated into the final battery pack.
Working Principle of OCV Sorting
The working principle of OCV sorting involves measuring the open circuit voltage of each individual battery cell. The process typically follows these steps:

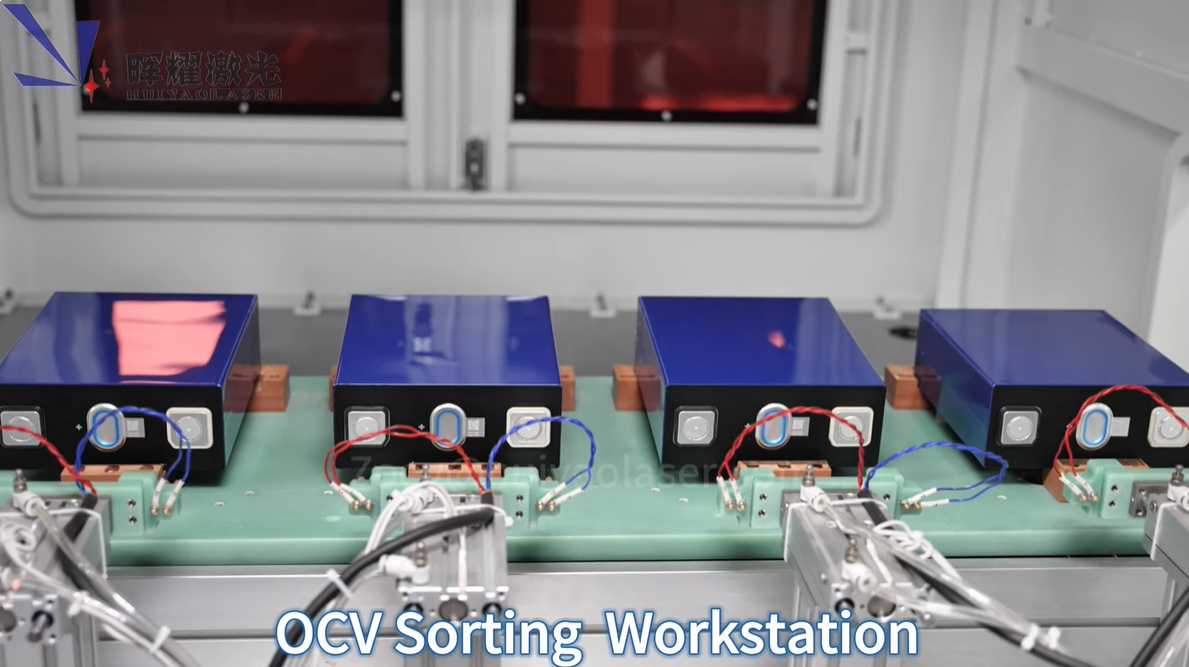

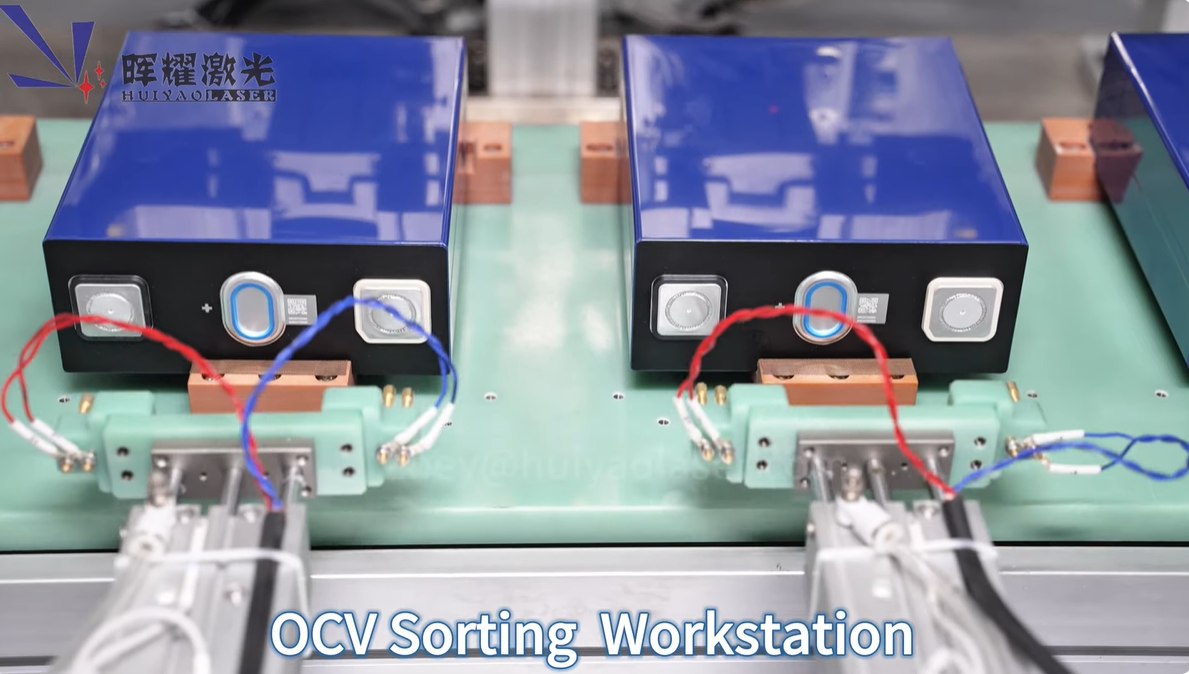

Pre-test: The battery cells are placed in a station where they are not connected to any load, allowing the open circuit voltage to stabilize.

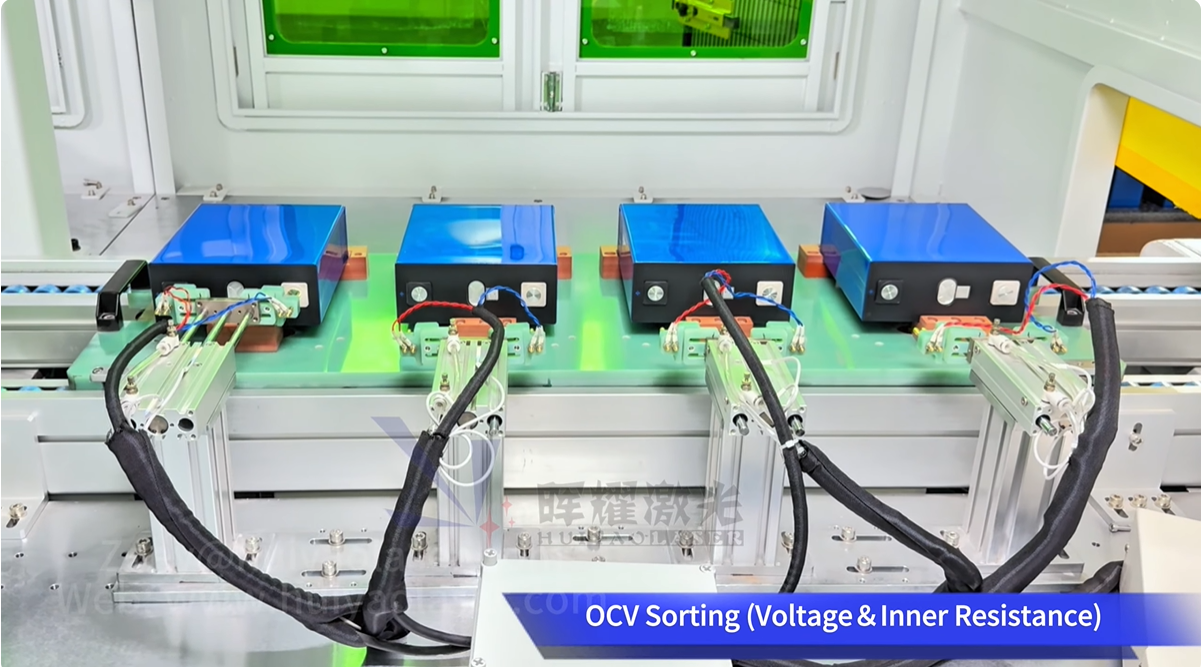

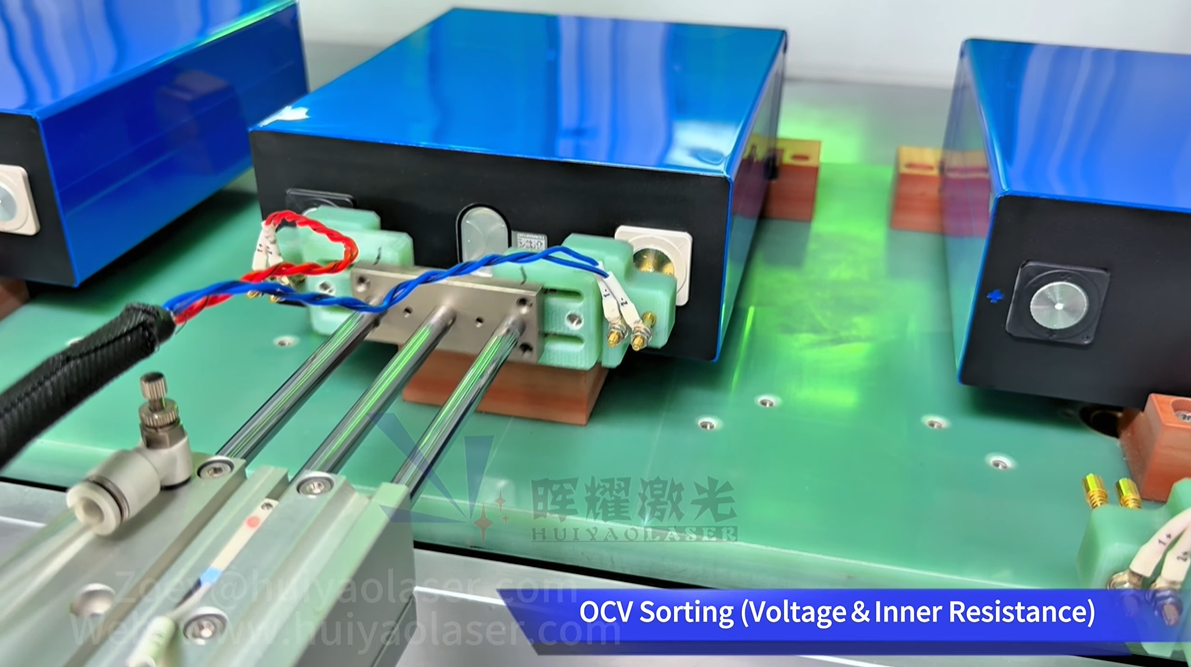

Voltage Measurement: A precise voltage measurement is taken using sensors or a battery tester.
Sorting: Based on the measured voltage, cells are categorized into different groups. Cells with similar OCV values are placed together for use in the same module, ensuring uniform voltage distribution and improved performance.
Quality Check: The cells are checked for any discrepancies in OCV that might indicate defects or irregularities in battery chemistry.
Features of OCV Sorting
High Precision: The sorting process requires highly accurate measurement of the open circuit voltage to ensure proper classification.
Automation: The workstation is typically automated, using robotic arms and automated testers to handle cells quickly and efficiently.
Speed: It is designed for high throughput, enabling rapid sorting of large numbers of cells.
Flexibility: Can sort cells based on different voltage ranges to meet the specific requirements of various battery module designs.
Applications of OCV Sorting
Battery Module Assembly: Ensures that only cells with similar voltages are used together in a battery pack, enhancing overall performance and lifespan.
Battery Cell Sorting: Applied in both manufacturing and quality control processes to guarantee that cells meet the required specifications.
Battery Health Monitoring: Used to identify faulty cells or cells that have degraded over time by measuring their OCV and comparing it with acceptable ranges.
Functions of OCV Sorting
Voltage Uniformity: Ensures that cells with similar voltage levels are grouped together to maintain uniformity in battery pack performance.
Defect Detection: Helps identify faulty cells by detecting outliers in OCV that deviate significantly from the standard range.
Cell Classification: Categorizes cells based on their voltage, enabling efficient assembly of battery packs with optimal energy performance.
Advantages of OCV Sorting
Improved Battery Performance: By grouping cells with similar voltage levels, the overall performance and efficiency of the battery pack are optimized.
Increased Safety: Sorting cells based on OCV helps prevent issues related to mismatched voltages, which could lead to overheating, reduced lifespan, or failure.
Enhanced Quality Control: The process ensures that only high-quality cells that meet the required voltage criteria are used in the final product.
Cost Savings: Helps reduce waste and increases production efficiency by identifying defective cells early in the manufacturing process.
