What is Pouch Battery?
A pouch battery is a type of lithium-ion battery that uses a soft, flexible, and lightweight pouch instead of the rigid cylindrical or prismatic casing typically found in other battery types. This design allows for higher energy density and thinner profiles, making pouch cells ideal for applications requiring lightweight and compact battery solutions, such as electric vehicles (EVs), consumer electronics (smartphones, laptops, etc.), and energy storage systems. The flexible pouch is typically made of laminated aluminum foil, which provides better protection against leakage and enhances the overall safety of the battery. Pouch batteries can also accommodate various form factors, which gives manufacturers flexibility in designing different products with varying shapes and capacities.

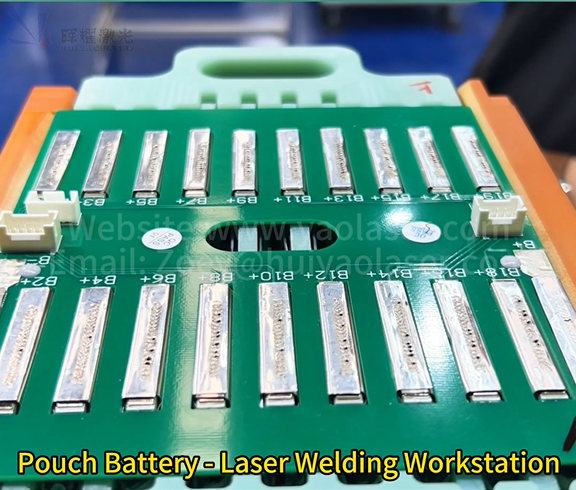

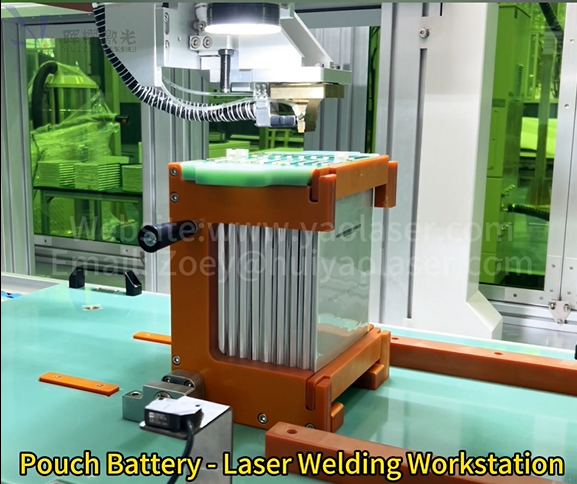

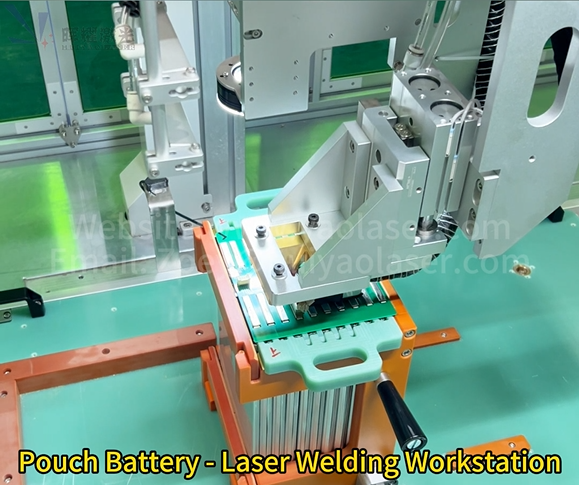

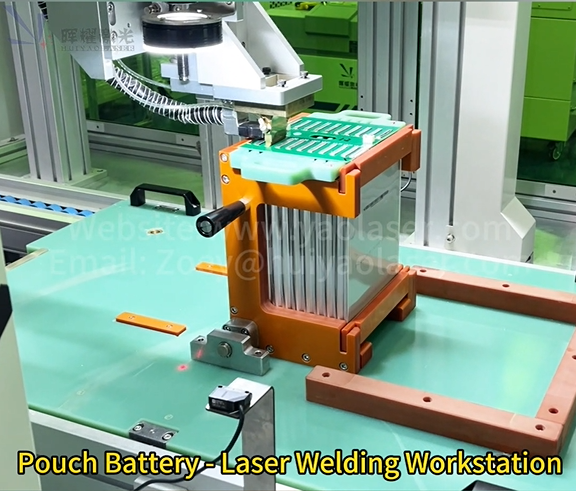

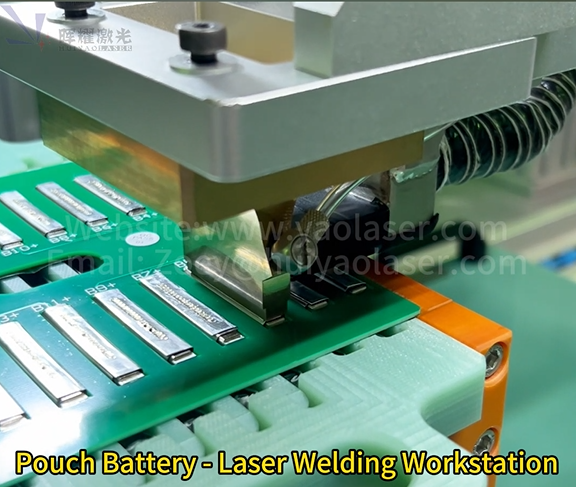

What is Pouch Battery Terminal Tab Laser Welding?
Pouch battery terminal tab laser welding is a specialized process in which a laser beam is used to fuse the terminal tabs of a pouch battery to the internal electrodes or the external connector system. This ensures a solid electrical connection between the battery cells and the device or power management system. The laser welding process offers high precision and is capable of producing strong, reliable welds with minimal risk of damaging surrounding components. As pouch batteries have delicate internal structures, laser welding minimizes thermal impacts on the surrounding materials, which could otherwise lead to deformation or reduced battery performance.
This method is widely used in high-speed production environments where accuracy and consistency are crucial. Laser welding technology has evolved to accommodate various materials used in pouch cells, including copper and aluminum, which are often used for the terminal tabs.
Features of Pouch Battery Terminal Tab Laser Welding:
Precision and Accuracy: Laser welding provides highly controlled energy delivery, enabling precise fusion of terminal tabs without affecting adjacent areas, crucial for battery safety and performance.
Minimal Thermal Impact: The localized nature of laser welding minimizes heat diffusion, reducing the risk of thermal damage to the sensitive battery components and maintaining the integrity of the battery structure.
Fast Welding Speed: The laser welding process is fast, making it suitable for high-volume production lines where efficiency is key.
Automation Capability: Laser welding systems can be fully automated, allowing for continuous production with minimal manual intervention, which helps to reduce labor costs and improve consistency.
High Strength and Durability of Joints: Laser welds are known for their high tensile strength and durability, which enhances the overall reliability and longevity of the battery.
Reduced Contamination: Since laser welding is a non-contact process, the risk of contamination from foreign particles is minimal, which is important in maintaining the purity and performance of the battery.
Applications of Pouch Battery Terminal Tab Laser Welding:
Electric Vehicle (EV) Battery Manufacturing: Laser welding is increasingly used in the production of EV battery packs, as it ensures fast and reliable connections between the battery cells. Pouch cells are often preferred in EVs due to their lighter weight and ability to fit into custom configurations.
Consumer Electronics: Devices like smartphones, laptops, and tablets use pouch cells for their compactness and higher energy densities. Terminal tab laser welding ensures a stable connection between the battery terminals and the internal circuitry.
Energy Storage Systems: Large-scale energy storage solutions, such as those used in solar power storage or grid storage systems, often rely on pouch batteries for their high capacity and flexible form factor.
Wearable Devices: The lightweight and flexible nature of pouch batteries makes them ideal for wearable electronics like fitness trackers, smartwatches, and medical devices.
Portable Power Banks: The compact and efficient design of pouch cells is suitable for high-performance portable power banks, where the ability to charge multiple devices simultaneously is important.
Advantages of Terminal Tab Laser Welding:
High Precision: Laser welding ensures precise placement and fusion of the terminal tabs, contributing to high-quality electrical connections that improve battery performance.
Speed and Efficiency: The laser welding process can operate at high speeds, enabling manufacturers to meet the demands of large-scale production with minimal downtime.
Consistency: Laser welding is highly repeatable, ensuring that each weld is uniform, which is important for the reliability of the final battery product.
Minimal Heat Affected Zone: The localized nature of laser welding results in minimal heat-affected zones (HAZ), which helps prevent unwanted chemical or physical changes in the battery's materials.
No Consumables: Unlike other welding methods that require filler materials or electrodes, laser welding generally requires no consumables, reducing operating costs over time.
Enhanced Safety: By reducing the likelihood of defects like poor electrical connections, laser welding contributes to the overall safety of the battery, which is critical for preventing issues such as short circuits or thermal runaway.
Factors for Choosing the Pouch Battery Module Production Line:
Technical Capabilities: The machinery must be capable of handling the specific requirements of pouch battery production, including precision welding, sealing, and testing processes.
Customization and Flexibility: The production line should be adaptable to different sizes and designs of pouch cells, as battery designs can vary significantly depending on the end application (e.g., automotive vs. consumer electronics).
Automation and Integration: High levels of automation and the ability to integrate with other manufacturing systems (e.g., for quality control, testing, and packaging) are key for streamlining production and improving efficiency.
Production Speed and Scalability: The line should be able to handle both small and large-scale production runs without compromising on quality or speed. Scalability is essential for companies anticipating growth or changes in demand.
Reliability and Maintenance: The equipment should be durable and require minimal downtime. Maintenance schedules, availability of parts, and ease of repair should also be considered to prevent production disruptions.
Quality Control Systems: In-line quality control mechanisms such as visual inspection, X-ray imaging, and testing equipment ensure that every unit produced meets the required standards for safety and performance.
Compliance with Regulations: The production line should adhere to industry standards and regulations, such as ISO certifications, to guarantee that the batteries produced are safe and reliable.
Price Factors for Choosing the Pouch Battery Module Production Line:
Capital Investment: The initial cost of purchasing and installing the production line is one of the largest price factors. This includes not just the machinery, but also installation, training, and potential facility upgrades.
Operating and Maintenance Costs: These ongoing costs include electricity, labor, consumables, and maintenance for the production line. Automated systems can reduce labor costs, but they may also come with higher upfront expenses.
Material Costs: The cost of raw materials, including the pouch films, electrode materials, and terminal tab components, can fluctuate based on market conditions and affect overall production costs.
Energy Efficiency: Production lines that consume less energy help reduce long-term operational costs, especially when running large-scale operations. The efficiency of laser welding systems is a key consideration here.
Return on Investment (ROI): Companies should consider the long-term value provided by the production line. A higher upfront cost may be justified if the system improves throughput, reduces defects, or enhances product quality.
After-Sales Support: The cost of after-sales service, including technical support, warranty, and spare parts, should be considered. Reliable support can help minimize downtime and extend the lifespan of the equipment.

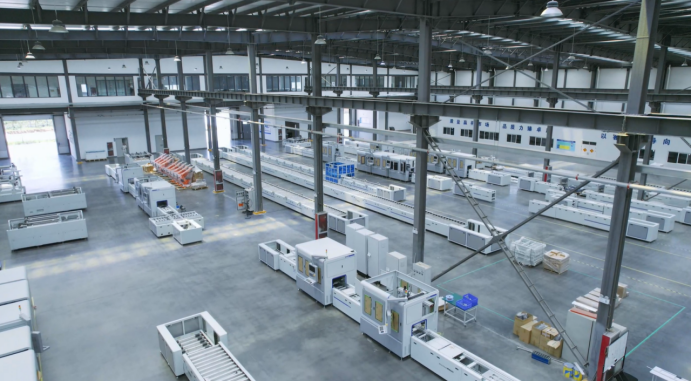

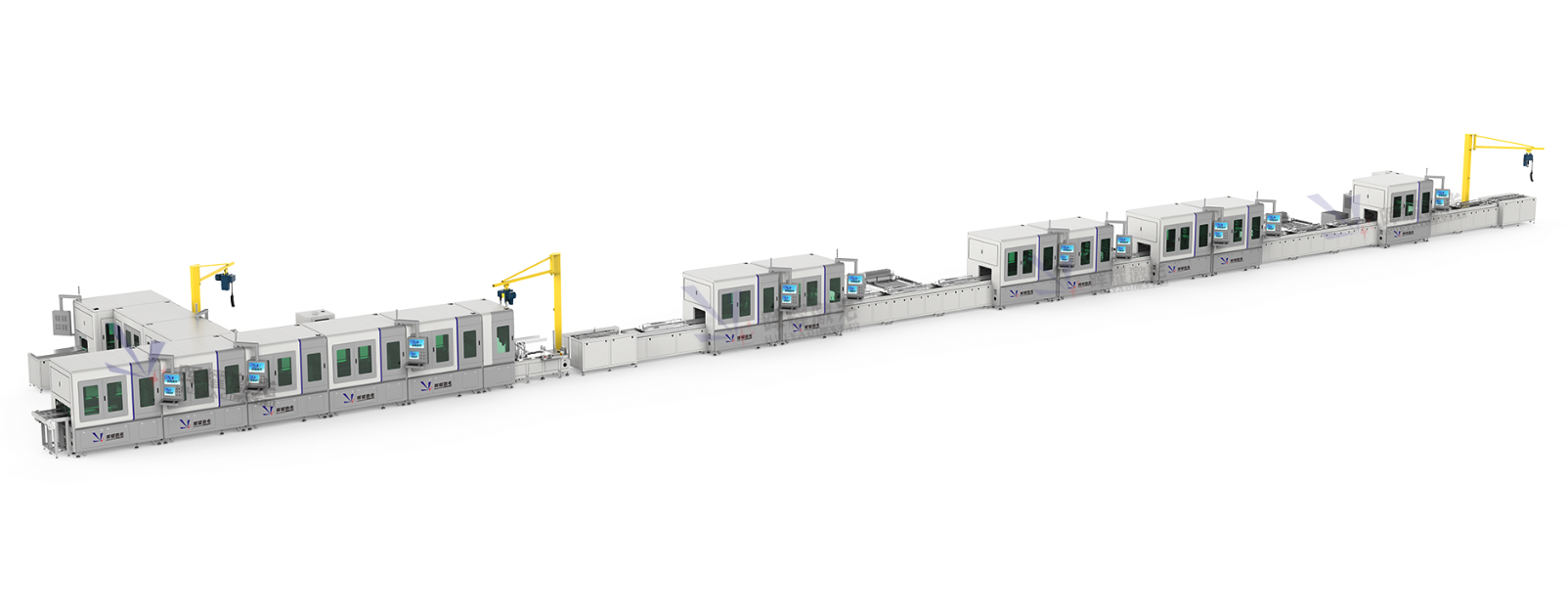

Supplier of Pouch Battery Module PACK Production Line
Huiyao Laser Technology (Luoyang) Co., Ltd. is a high-tech enterprise focusing on the research and development, manufacturing and sales of equipment for the new energy industry. Huiyao Laser provides comprehensive high-performance laser systems designed for the automotive, electronics, medical equipment, aerospace and other industries and committed to providing customers with comprehensive laser welding equipment, battery cell assembly line equipment, module PACK automatic line equipment, battery structural parts automation equipment and other high-end intelligent equipment. It can tailor the most suitable production line solutions according to the different production needs of customer companies.
