The rapid growth of electric vehicles (EVs), renewable energy storage systems, and advanced electronics has placed battery technology at the forefront of innovation. Within this realm, the manufacturing of battery modules, composed of individual cells, demands unparalleled precision and quality control. One essential component of this process is the Terminal Pole Photography Workstation.
But why is this workstation indispensable in a battery module assembly line? This article explores its purpose, benefits, features, and why it has become a standard in modern battery production facilities.
What Is a Terminal Pole Photography Workstation?

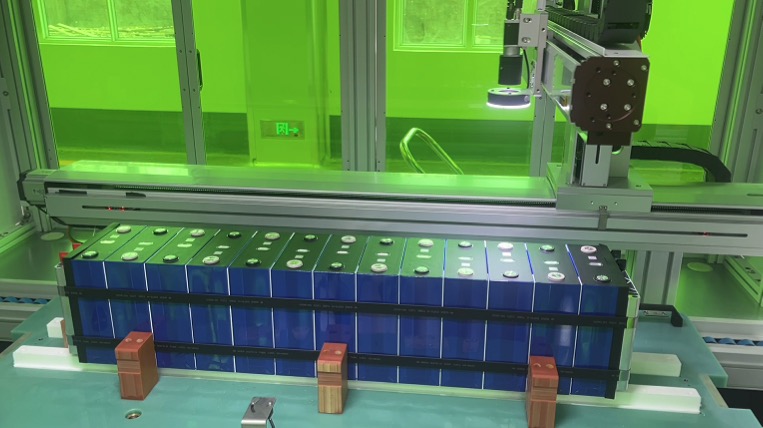

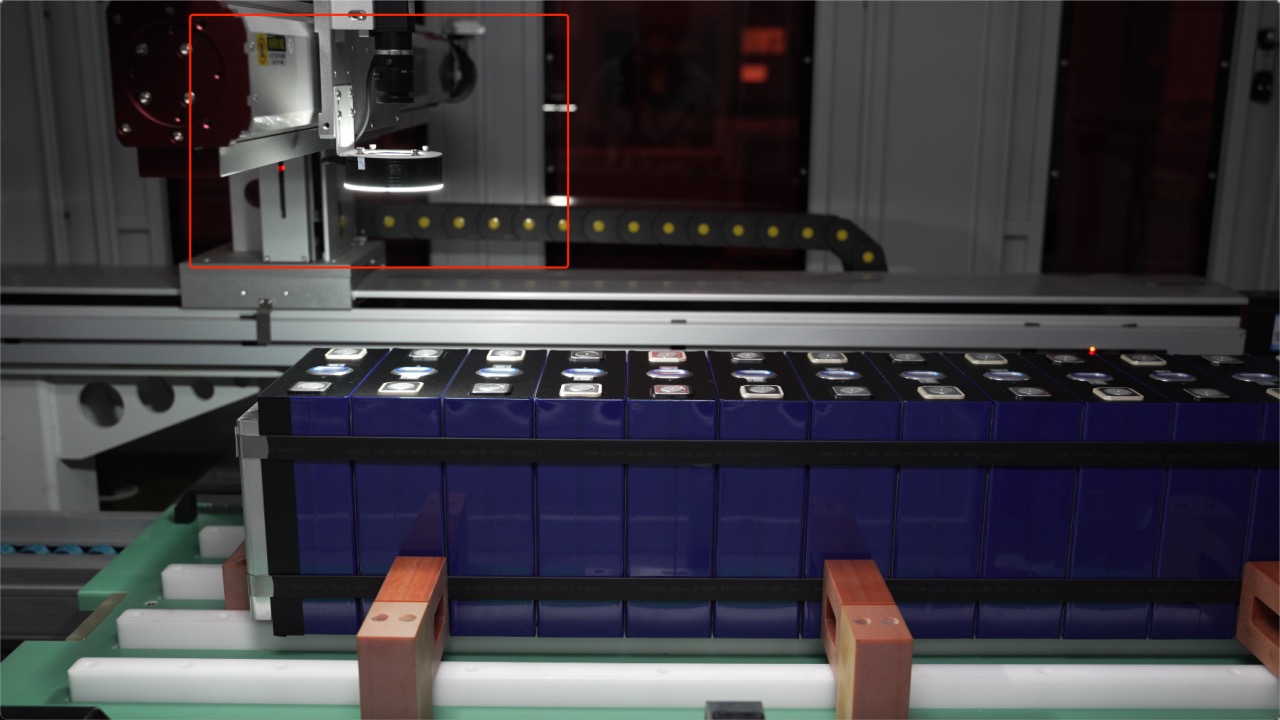

A Terminal Pole Photography Workstation is a specialized inspection station used in battery module assembly lines. Its primary function is to capture high-resolution images of the terminal poles (positive and negative terminals) of battery cells or modules for quality control and analysis.
This workstation utilizes advanced imaging systems to detect defects, verify alignment, and ensure the integrity of terminal connections. It plays a critical role in ensuring that each cell or module meets stringent quality and safety standards.
Functions of the Terminal Pole Photography Workstation
1. Terminal Alignment Inspection
In the assembly process, precise alignment of terminal poles is essential to ensure proper electrical connections. The workstation verifies that the terminals are correctly positioned and aligned to prevent assembly errors.
2. Surface Quality Check
High-resolution cameras identify defects such as scratches, dents, contamination, or irregularities on terminal surfaces, which could compromise electrical conductivity or safety.
3. Weld and Connection Verification
In modules with welded connections, the workstation inspects the weld quality to confirm that the terminals are securely joined without cracks or inconsistencies.
4. Polarity Verification
Ensuring that the positive and negative terminals are correctly oriented is critical to prevent short circuits or damage during assembly.
5. Data Recording and Traceability

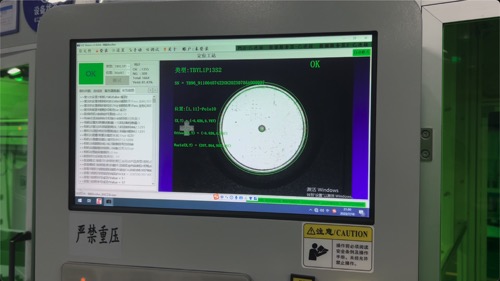

The captured images and analysis results are stored in a database, creating a traceable record for each cell or module. This supports quality assurance, regulatory compliance, and future troubleshooting.
Why Is a Terminal Pole Photography Workstation Necessary?
1. Ensuring Safety and Reliability
Battery modules are subject to high energy densities, and any defect in the terminal poles can lead to safety hazards like short circuits, thermal runaway, or module failure. The workstation detects these issues early, ensuring the safety and reliability of the final product.
2. Enhancing Production Efficiency
Automated inspection reduces the need for manual quality checks, increasing throughput and minimizing delays in the assembly line.
3. Reducing Manufacturing Defects
Defective terminals can result in electrical resistance, energy loss, or poor performance. By identifying these defects during assembly, manufacturers can prevent costly downstream issues.
4. Supporting Industry Standards
Battery production must adhere to strict quality standards, especially for EVs and energy storage systems. The workstation ensures compliance with these standards by verifying terminal quality and alignment.
Key Features of a Terminal Pole Photography Workstation
1. High-Resolution Imaging
The workstation is equipped with advanced cameras capable of capturing detailed images of terminal poles, enabling precise defect detection.
2. Integration with Assembly Lines
The workstation seamlessly integrates into automated assembly lines, providing real-time inspection without interrupting production flow.
3. Real-Time Feedback
When defects are detected, the system provides instant feedback, allowing operators to address issues promptly.
4. Modular Design
Workstations are designed for scalability, allowing manufacturers to customize or expand the system based on production volume and requirements.
Applications of Terminal Pole Photography Workstations
1. EV Battery Module Production
In EV battery manufacturing, terminal pole inspection ensures that every module meets the safety and performance standards demanded by the automotive industry.
2. Energy Storage Systems
For grid-scale batteries, the reliability of terminal connections directly impacts energy efficiency and system stability.
3. Consumer Electronics
Devices like smartphones and laptops rely on high-quality battery cells. The workstation ensures that defective cells are removed before integration.
4. Aerospace and Defense
In industries where battery failure is not an option, such as aerospace and defense, terminal pole photography ensures unmatched quality and reliability.
How to Choose the Right Terminal Pole Photography Workstation
1. Imaging Resolution
Select a system with high-resolution cameras capable of detecting even the smallest defects.
2. Compatibility with Assembly Lines
Ensure the workstation integrates smoothly with existing automation systems and supports your production speed.
3. Data Management
Choose a system with robust data storage and traceability features, essential for quality control and compliance.
4. Scalability
Opt for a modular design that allows for future upgrades or expansion as production scales.
5. Support and Maintenance
Select a supplier that offers strong after-sales support, including training, maintenance, and software updates.
Price Considerations
The cost of a Terminal Pole Photography Workstation varies based on factors like:
• Imaging technology and resolution
• Integration complexity
• Customization and scalability
While the initial investment can be significant, the long-term benefits of reduced defects, improved efficiency, and enhanced safety far outweigh the costs.
Who Supplies Reliable Terminal Pole Photography Workstations?
When it comes to advanced inspection systems, Huiyao Laser Technology (Luoyang) Co., Ltd. is a trusted provider of cutting-edge solutions.
Why Choose Huiyao Laser Technology?
1. Innovative Imaging Systems: Huiyao Laser offers high-resolution cameras for precise terminal pole inspections.
2. Customizable Solutions: Their workstations are tailored to meet the specific requirements of different battery production lines.
3. Seamless Integration: Huiyao Laser’s systems are designed to integrate effortlessly into automated assembly lines.
4. Proven Expertise: With years of experience in battery manufacturing technologies, Huiyao Laser is a leader in quality control solutions.
5. Comprehensive Support: From installation to maintenance, Huiyao Laser provides exceptional after-sales service to ensure uninterrupted operation.
Whether you’re producing EV batteries, consumer electronics, or energy storage systems, Huiyao Laser Technology delivers reliable and efficient solutions for terminal pole inspection.
